Mass Air Flow Meter: Inspection: Inspection

  1. INSPECT MASS AIR FLOW METER

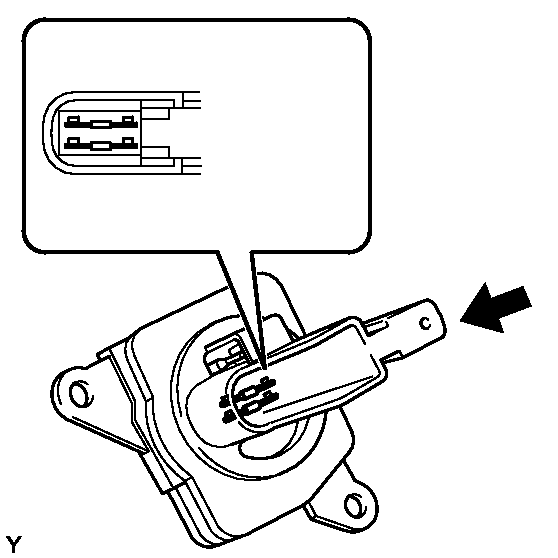

    Fig 1: Inspecting Mass Air Flow Meter
    GTY165818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a work light, check that the platinum filament (heater portion) in the mass air flow meter has no foreign matter attached.

      OK

      No foreign matter attached.
