Home >> Scion >> 2012 >> xD Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Service Information) >> Air Fuel Ratio Sensor >> Components >> Illustration

Air Fuel Ratio Sensor: Components: Illustration

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY160970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

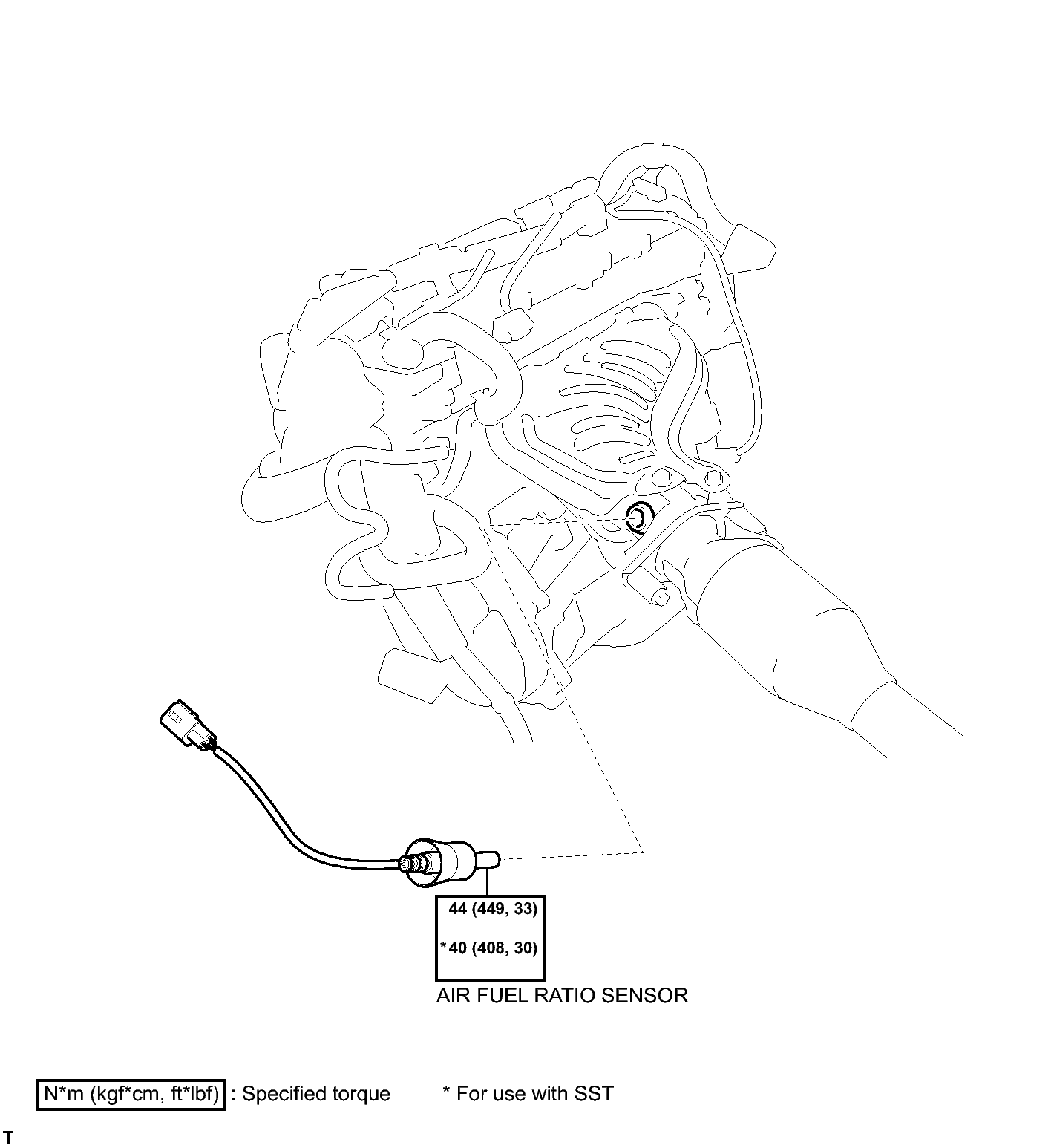

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specification (2 Of 2)
GTY161070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
