Home >> Scion >> 2012 >> xD Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (Service Information) >> Heated Oxygen Sensor >> Components >> Illustration

Heated Oxygen Sensor: Components: Illustration

Fig 1: Identifying Heated Oxygen Sensor Replacement Components (1 Of 2)
GTY166897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

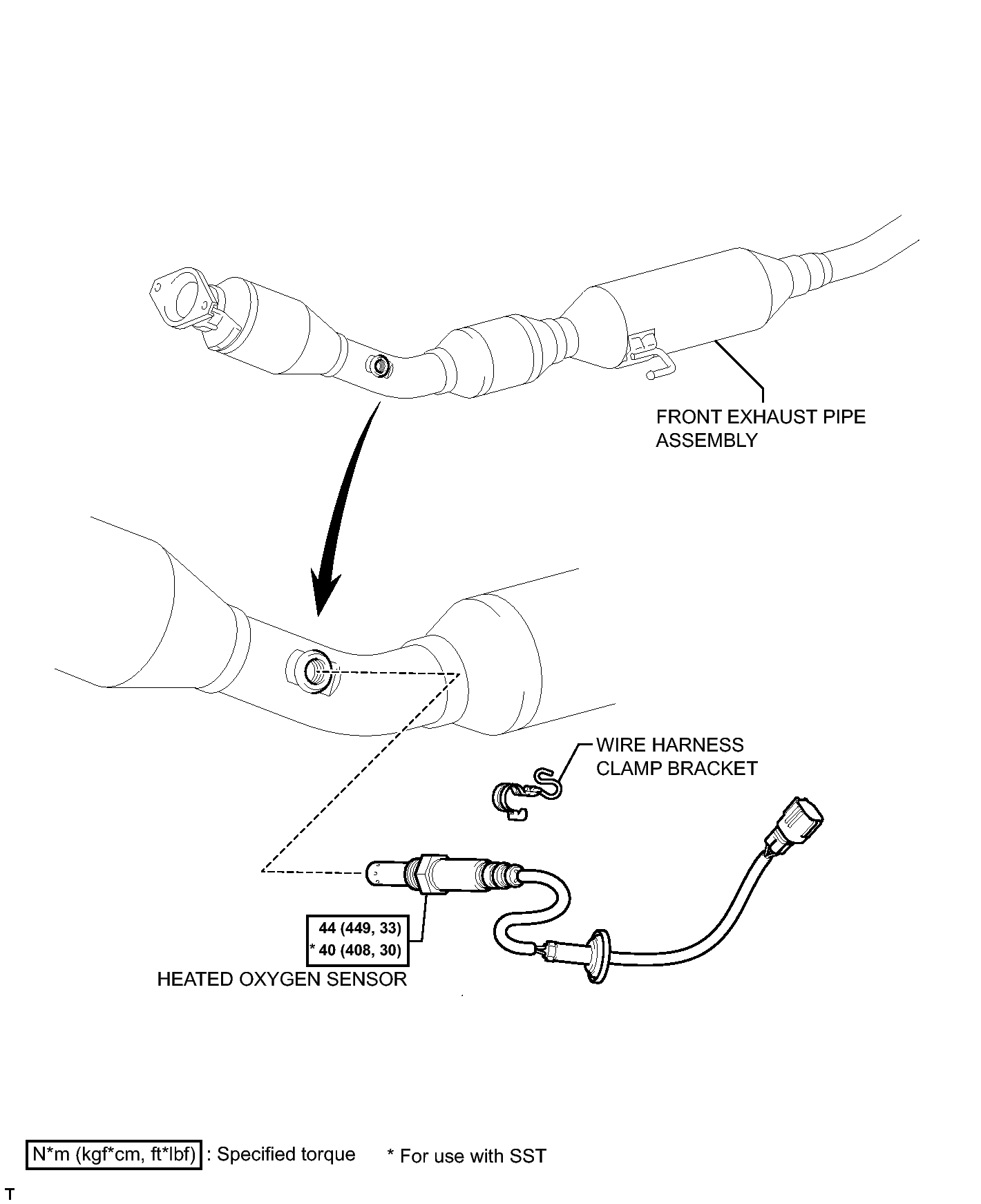

Fig 1: Identifying Heated Oxygen Sensor Replacement Components With Torque Specification (2 Of 2)
GTY164615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
