Knock Sensor: Components: Illustration

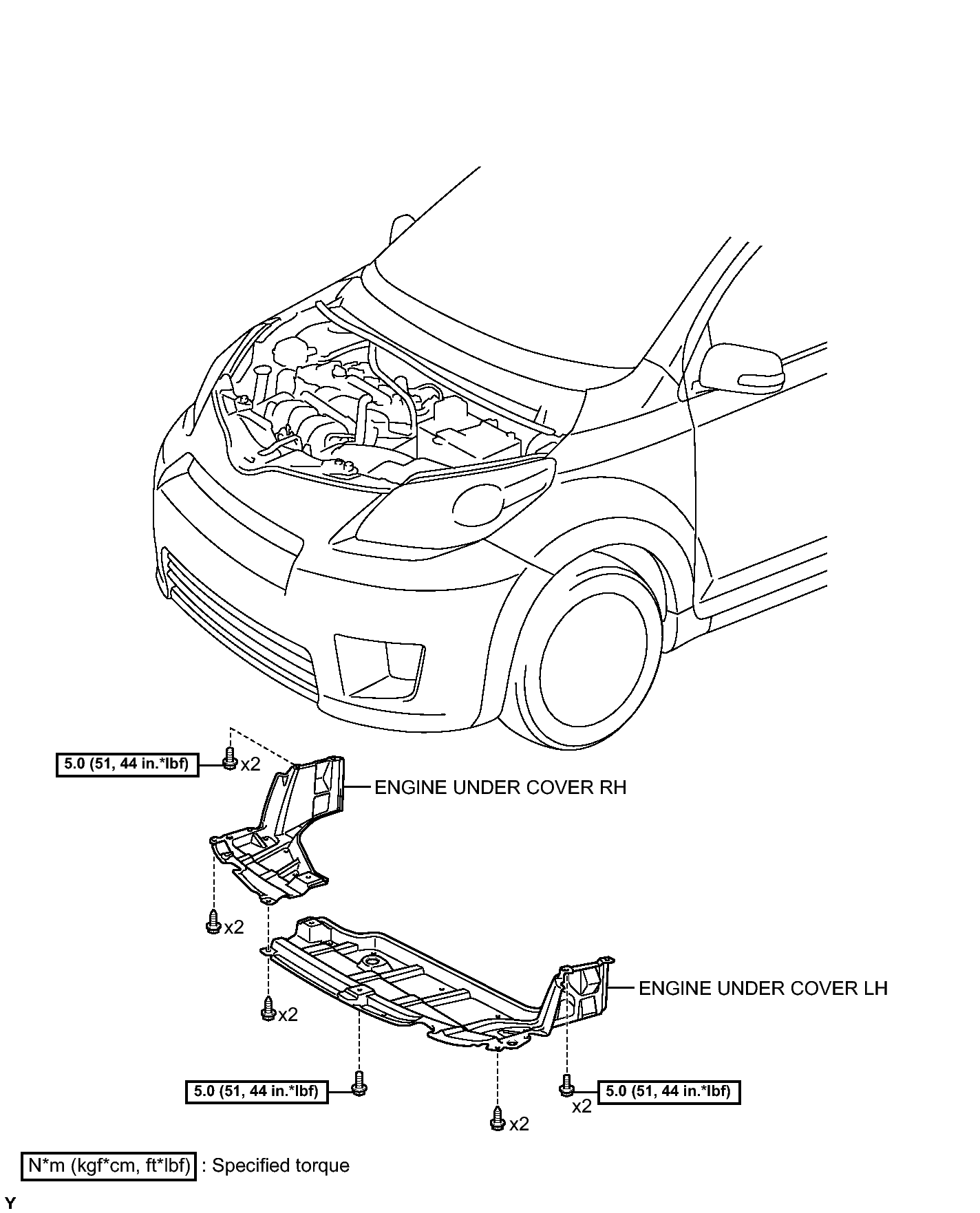

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (1 Of 5)
GTY160791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


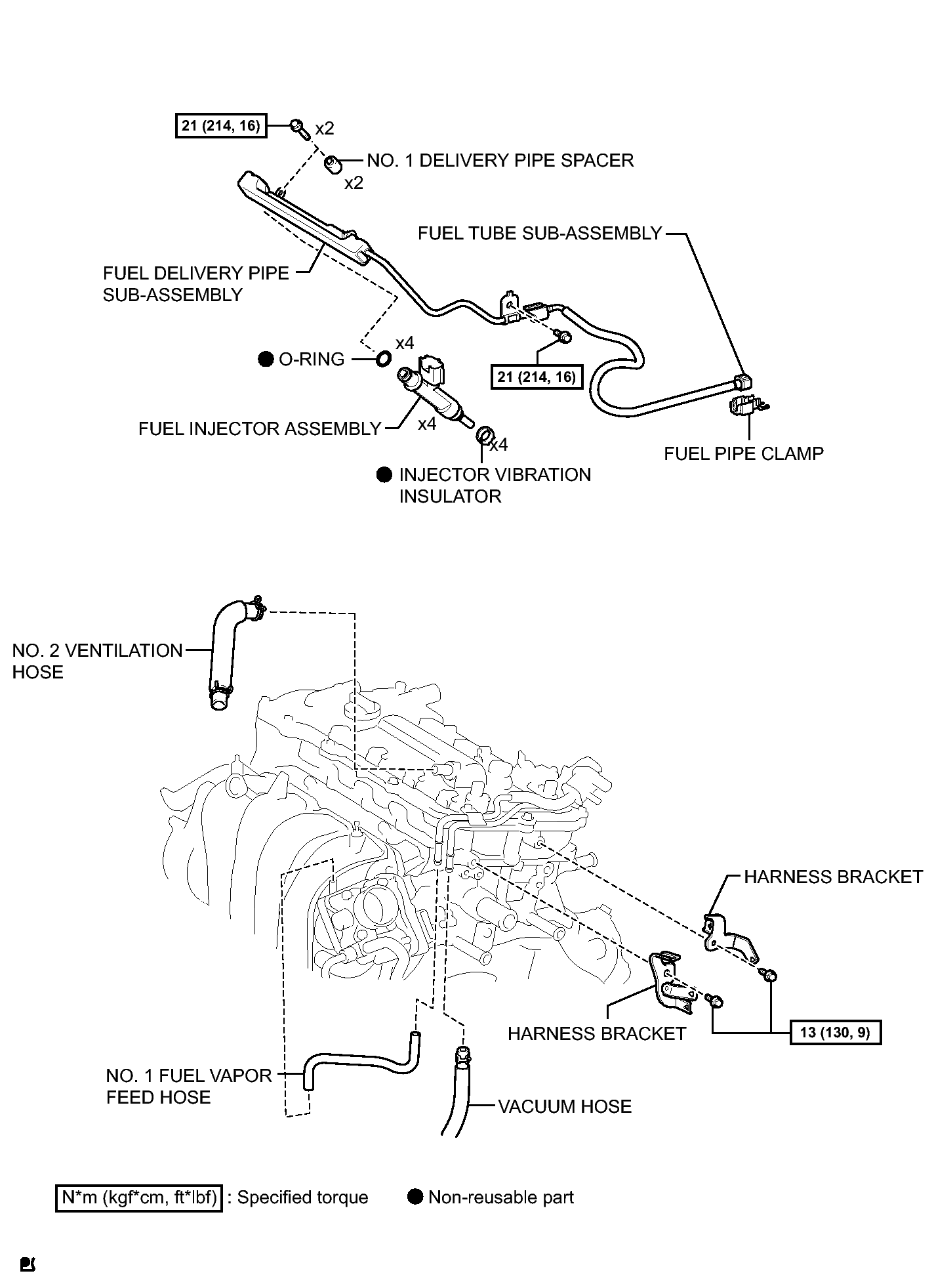

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (2 Of 5)
GTY160995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


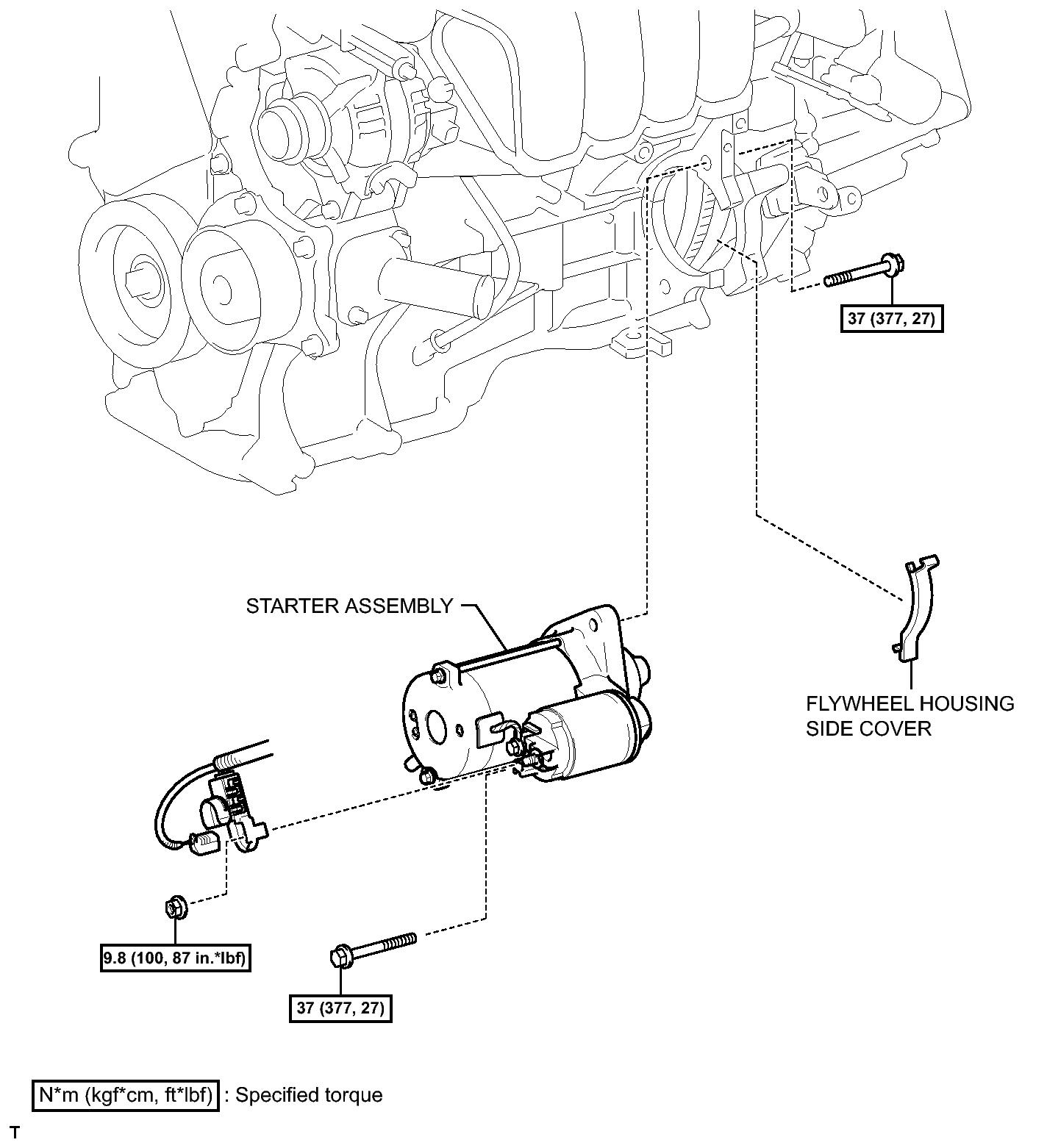

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (3 Of 5)
GTY160745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


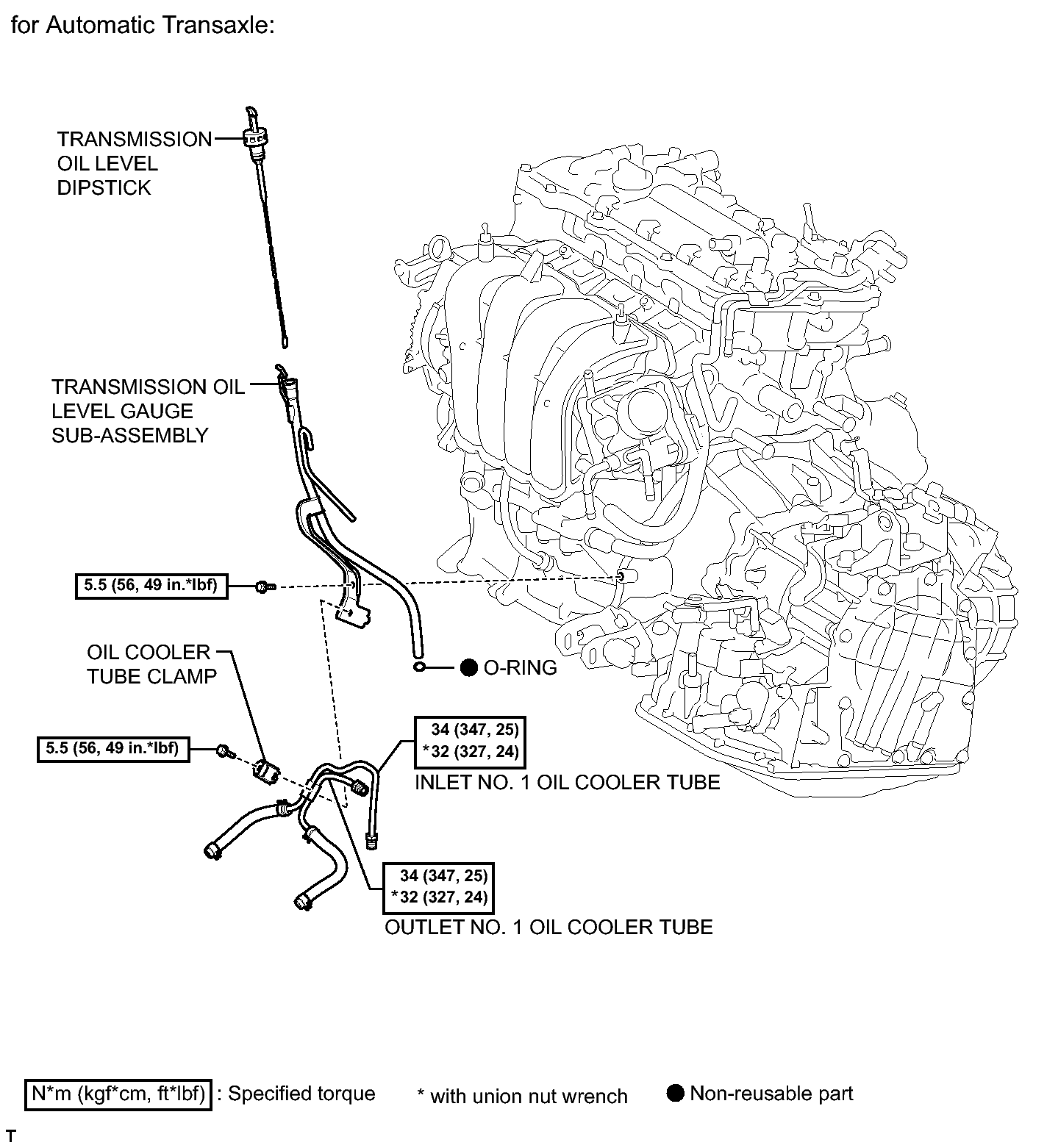

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (4 Of 5)
GTY160787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

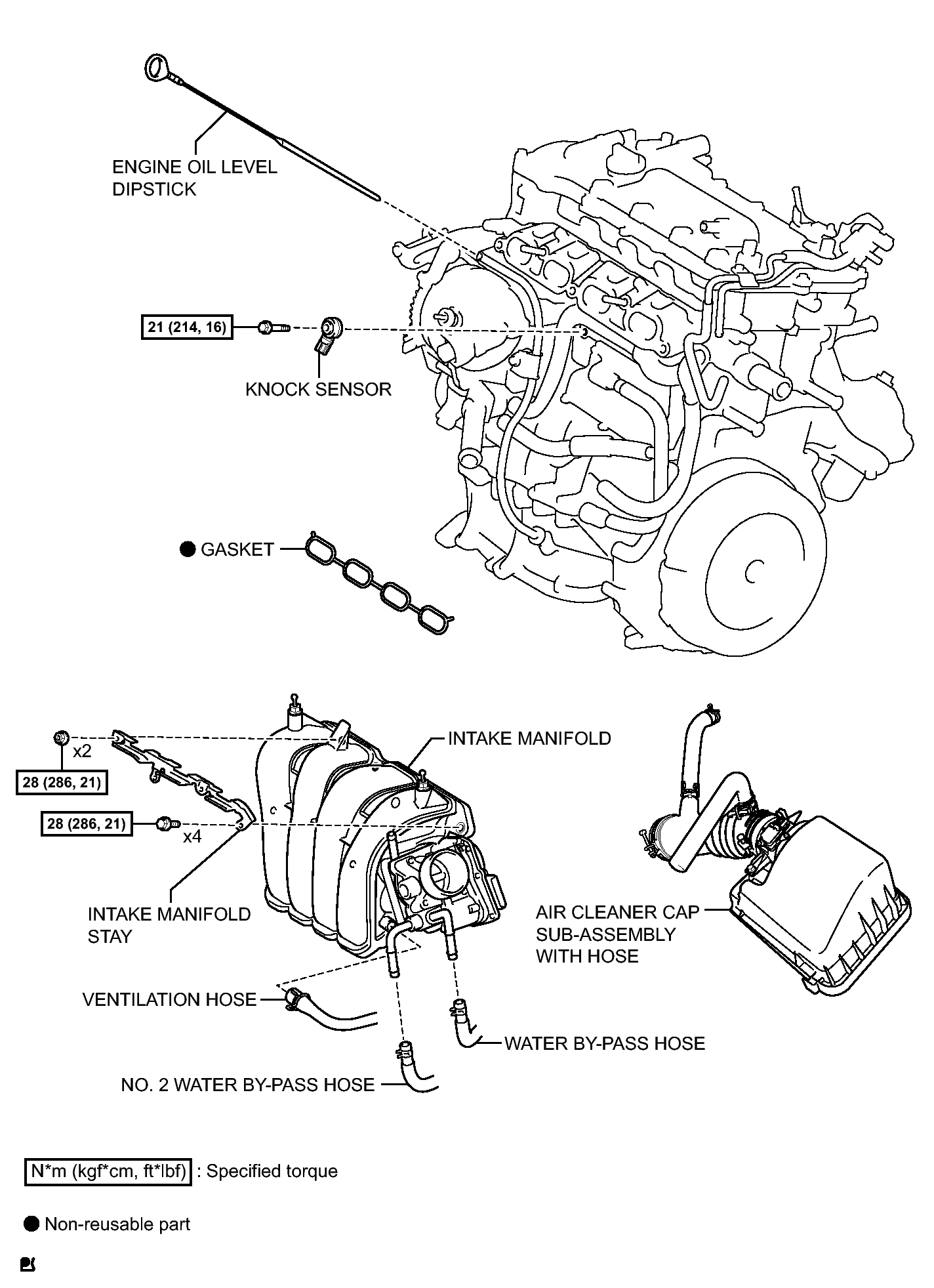

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (5 Of 5)
GTY160700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
