Parts Location: Illustration

Fig 1: Identifying SFI System Replacement Components (1 Of 3)
GTY312588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

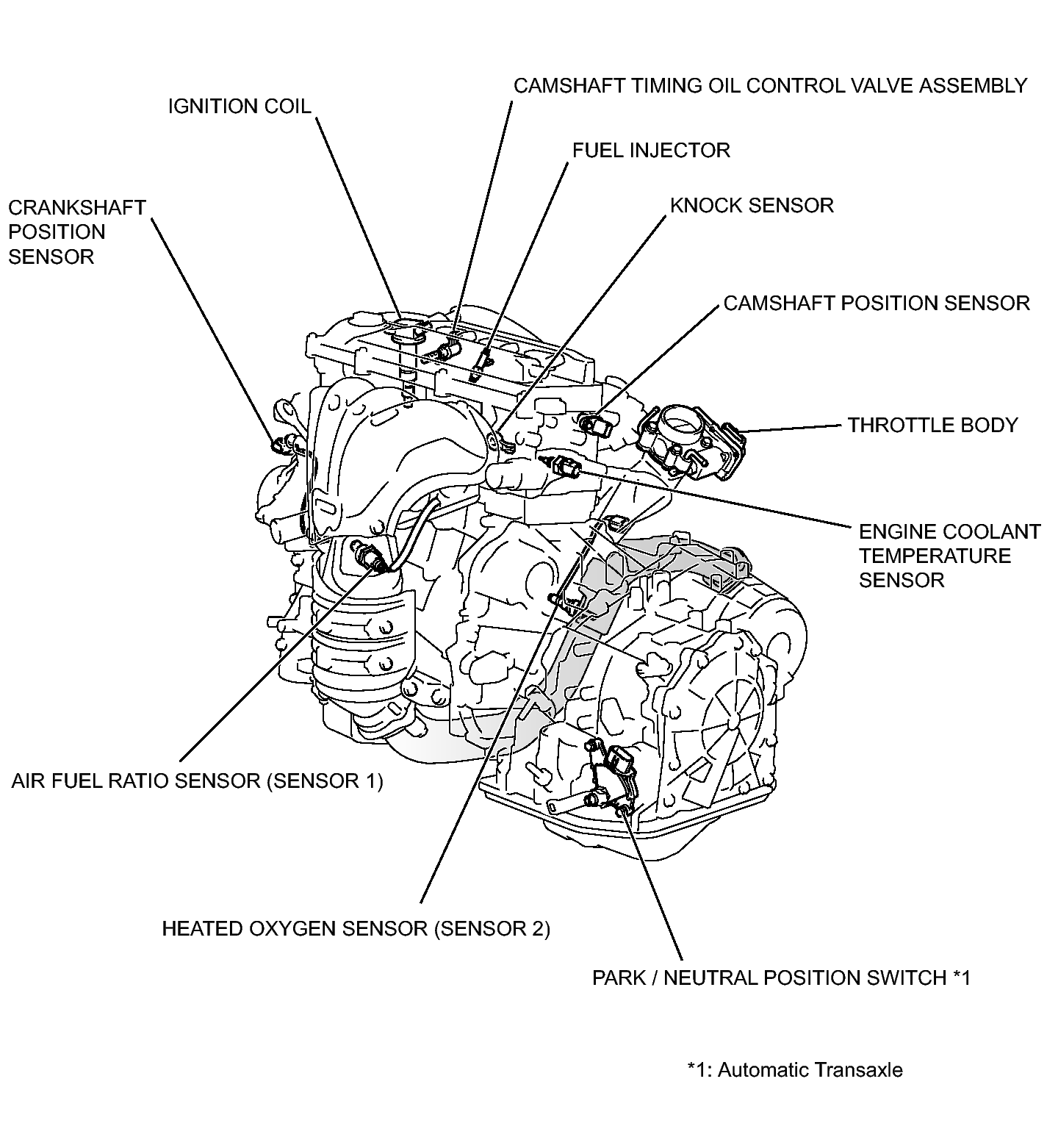

Fig 1: Identifying SFI System Replacement Components (2 Of 3)
GTY388803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying SFI System Replacement Components (3 Of 3)
GTY387090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
