Pick-Up Coil Resistance

  1. Using an ohmmeter set in the x100 range, measure pick-up coil resistance at distributor connector. See Fig 1.

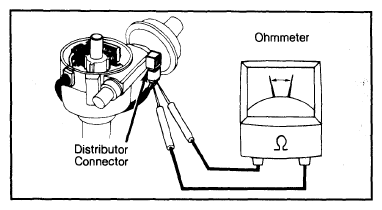

    Fig 1: Checking Pick-Up Coil Resistance
    G09323521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Connect ohmmeter leads to distributor connector terminals.

  2. Check resistance value against Pick-Up Coil Resistance table. If not to specifications, replace pick-up coil assembly. Also check wires for shorts or opens.
    PICK-UP COIL RESISTANCE (OHMS)

    Application Resistance
    Cressida, Starlet&Supra 140-180
    All Other Models 130-190
