THERMOSENSOR & Engine Speed Sensor Circuit

These sensors provide additional input to the ECM so that better driveability is assured by avoiding application of the feedback system. See Figure .

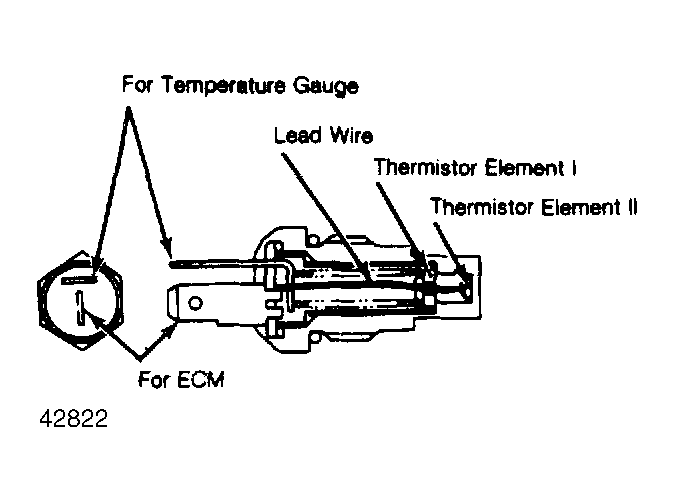

Fig 1: Sectional View of Thermosensor
