Home >> Subaru >> 1985 >> XT GL >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor System >> Testing >> Trouble Code 25

Trouble Code 25

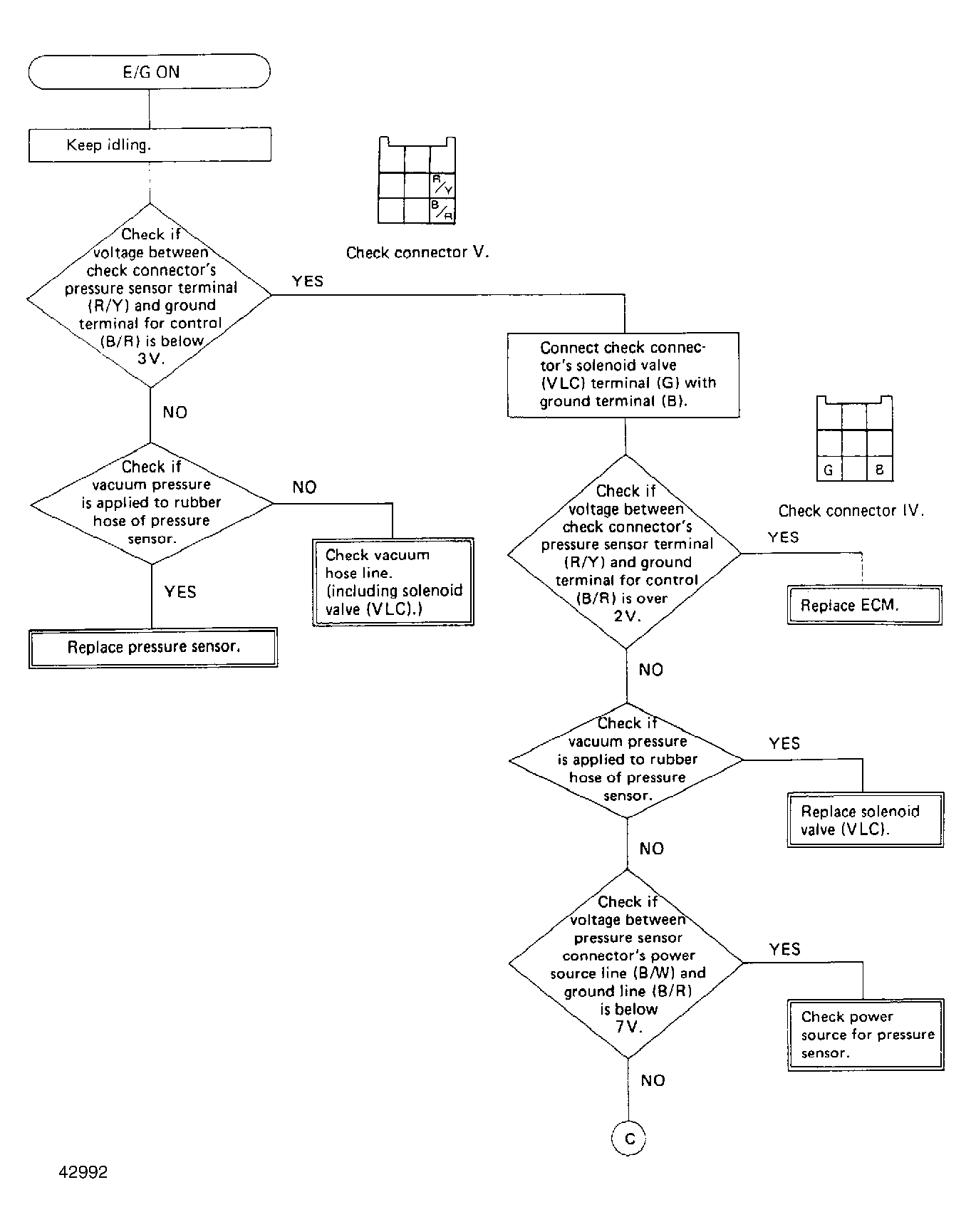

Fig 1: Trouble Code 25 Part 1 of 2

G42992

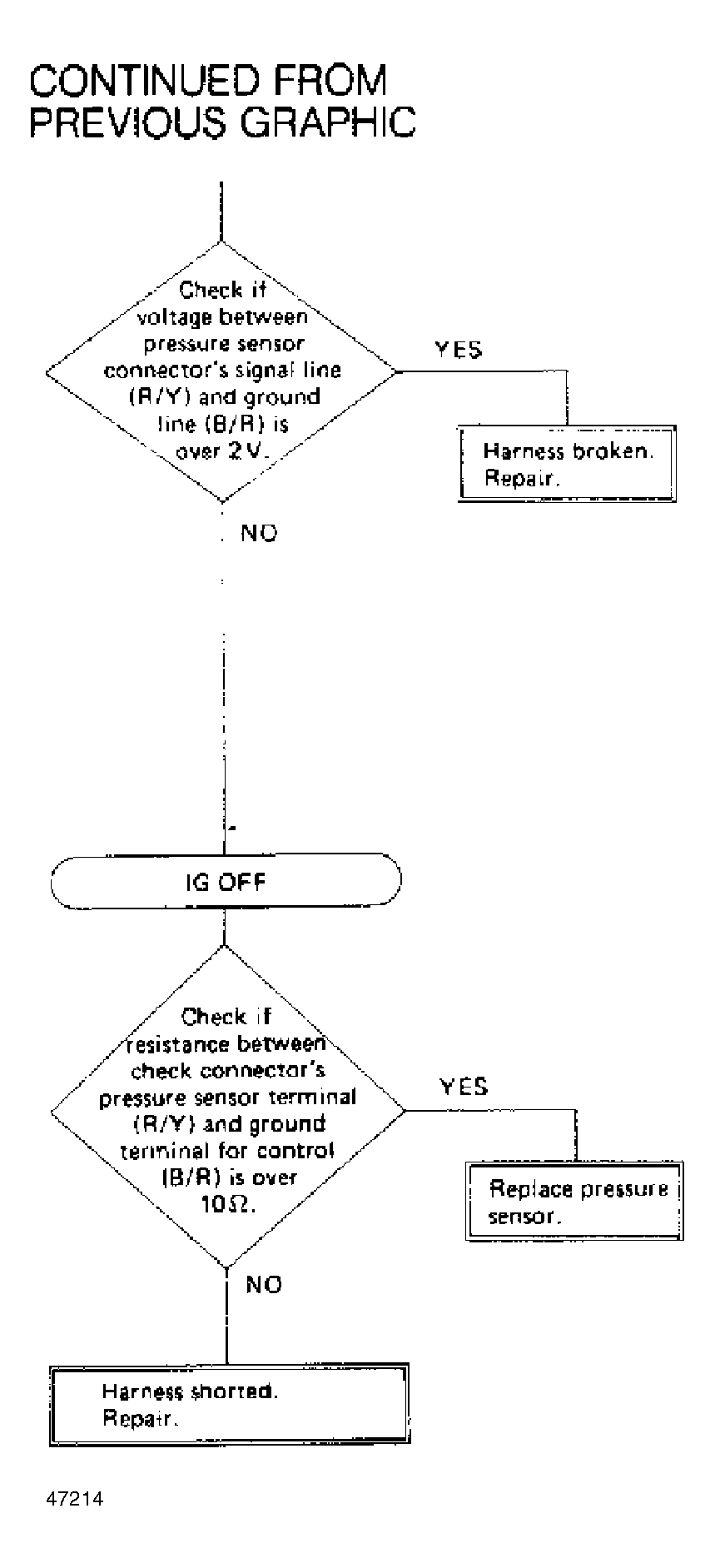

Fig 2: Trouble Code 25 Part 2 of 2

G47214
