Home >> Subaru >> 1985 >> XT GL >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor System >> Testing >> Trouble Code 52

Trouble Code 52

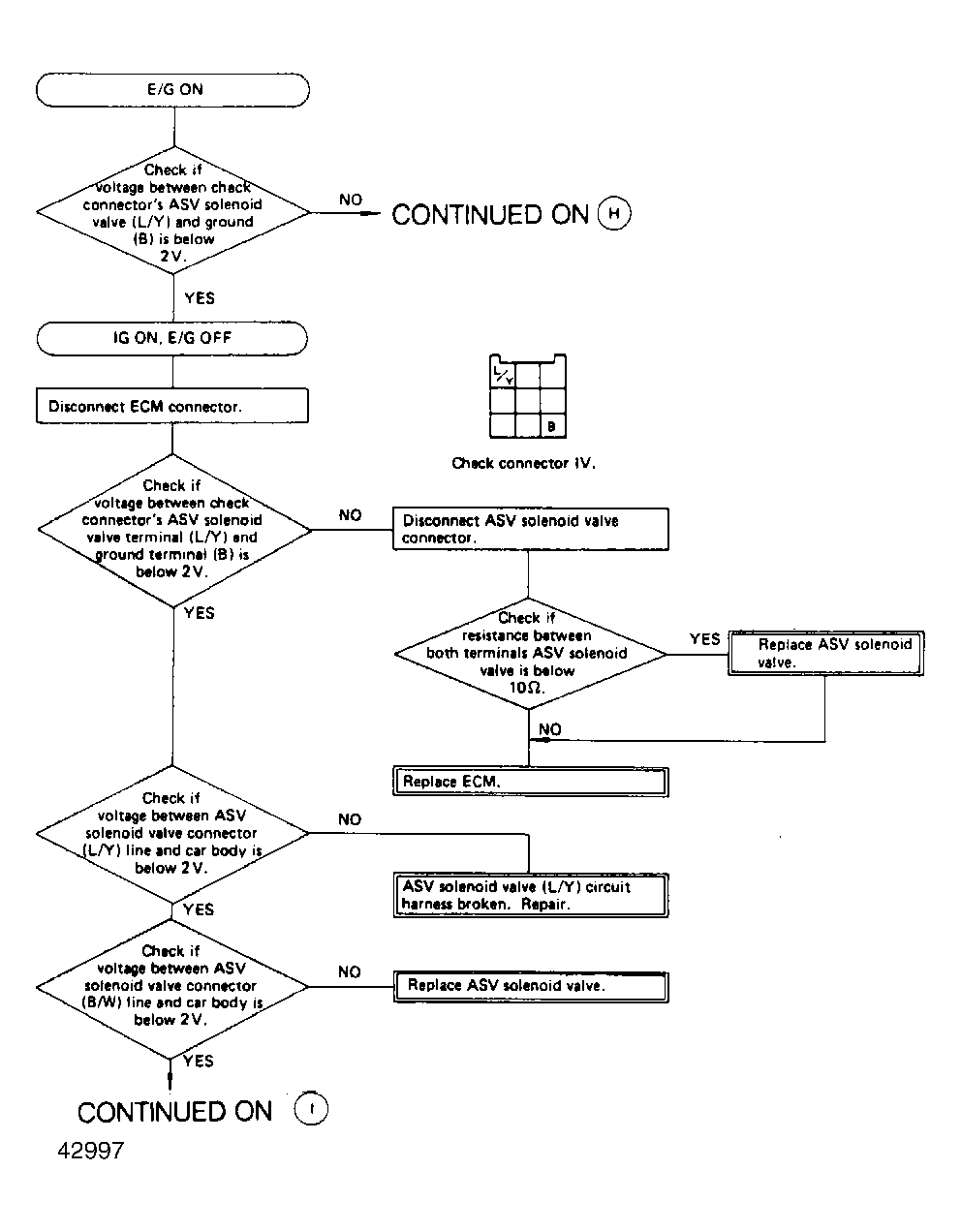

Fig 1: Trouble Code 52 Part 1 of 2

G42997

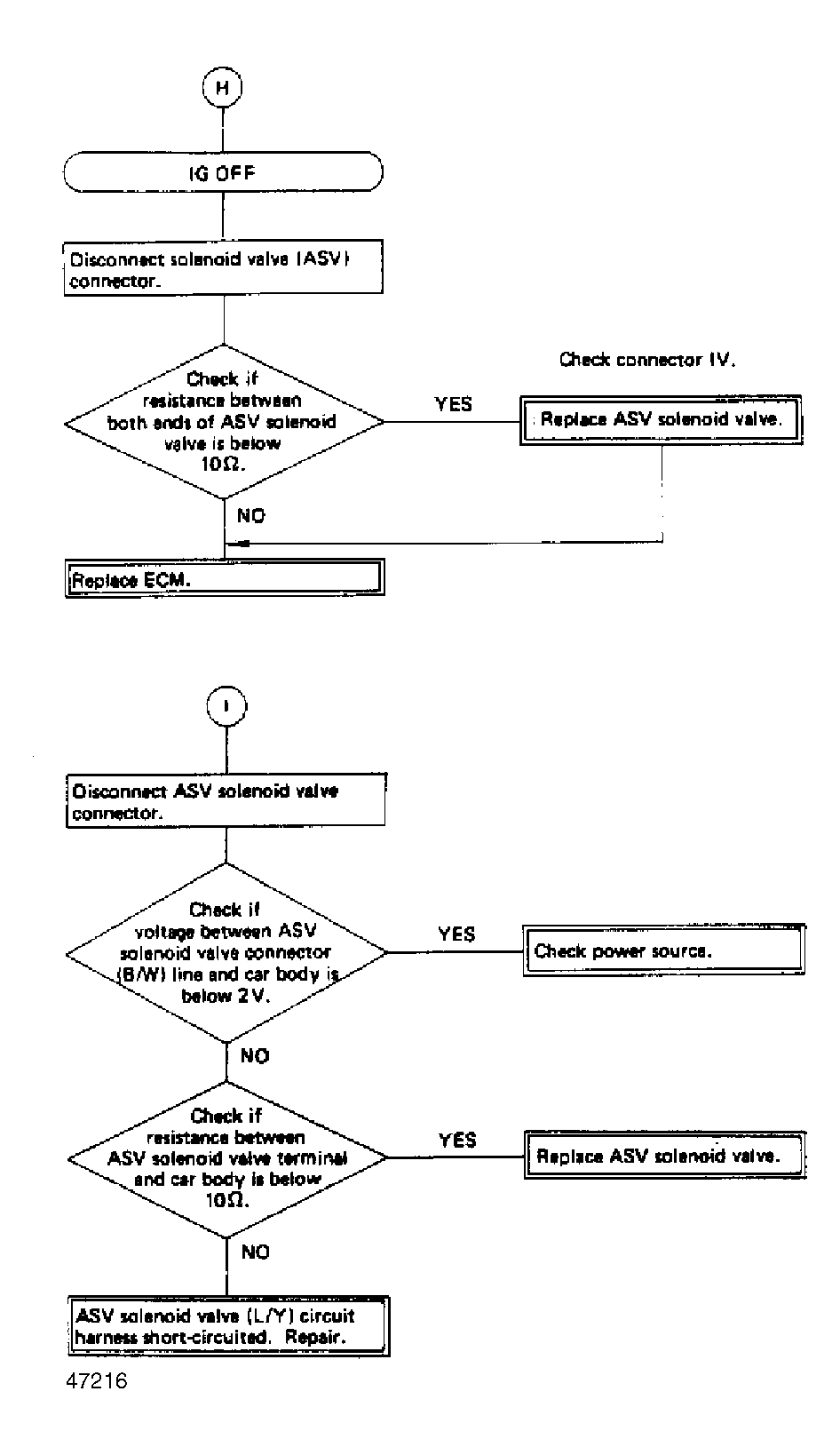

Fig 2: Trouble Code 52 Part 2 of 2

G47216
