Home >> Subaru >> 1988 >> XT DL >> Repair and Diagnosis >> Engine Performance >> System >> MPFI CEC System >> Trouble Shooting For Engine Starting Failure >> Trouble Code 32, Throttle Sensor

Trouble Code 32, Throttle Sensor

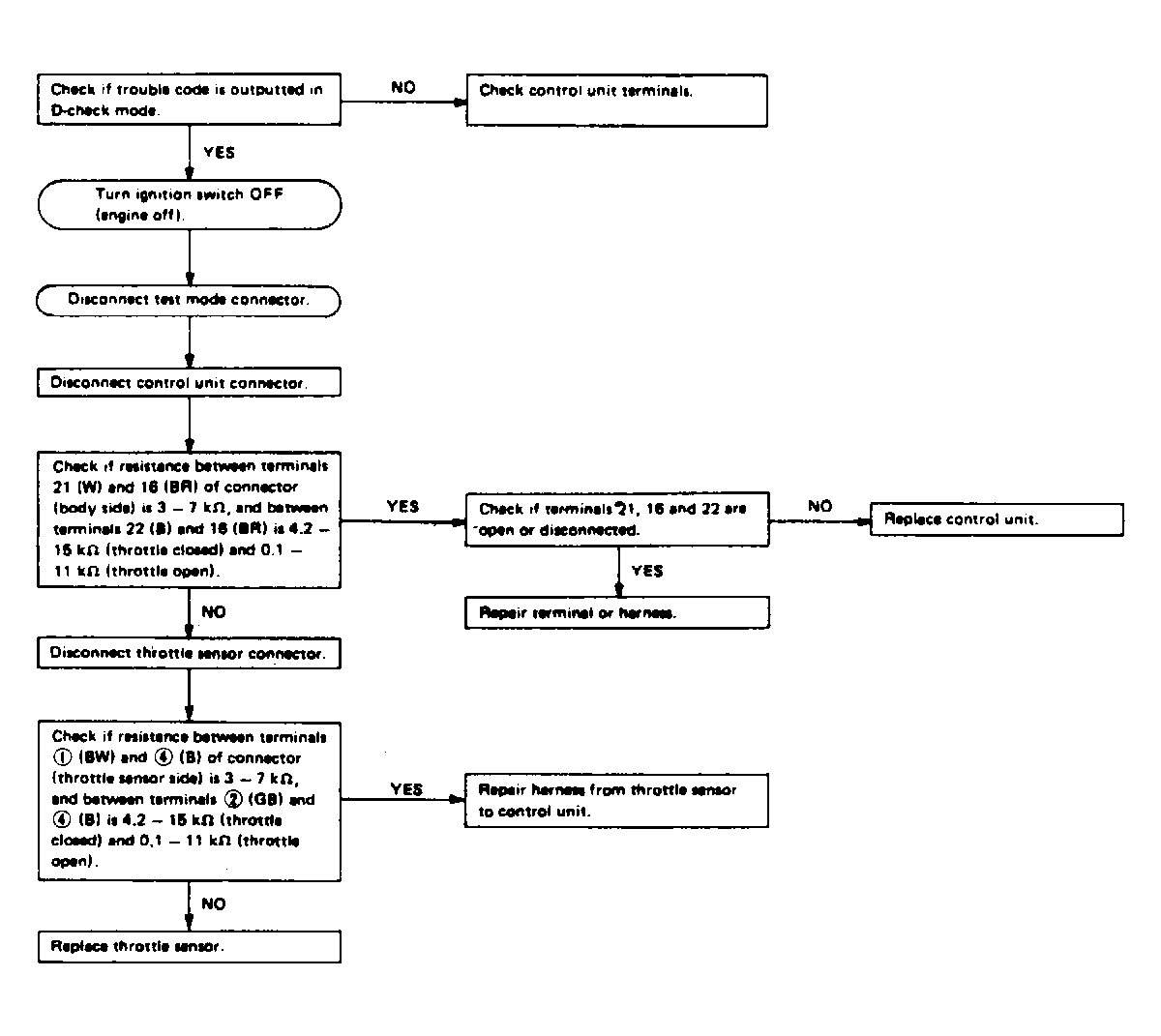

Fig 1: Trouble Code 32, Throttle Sensor (XT 2.7L Model)

G95128

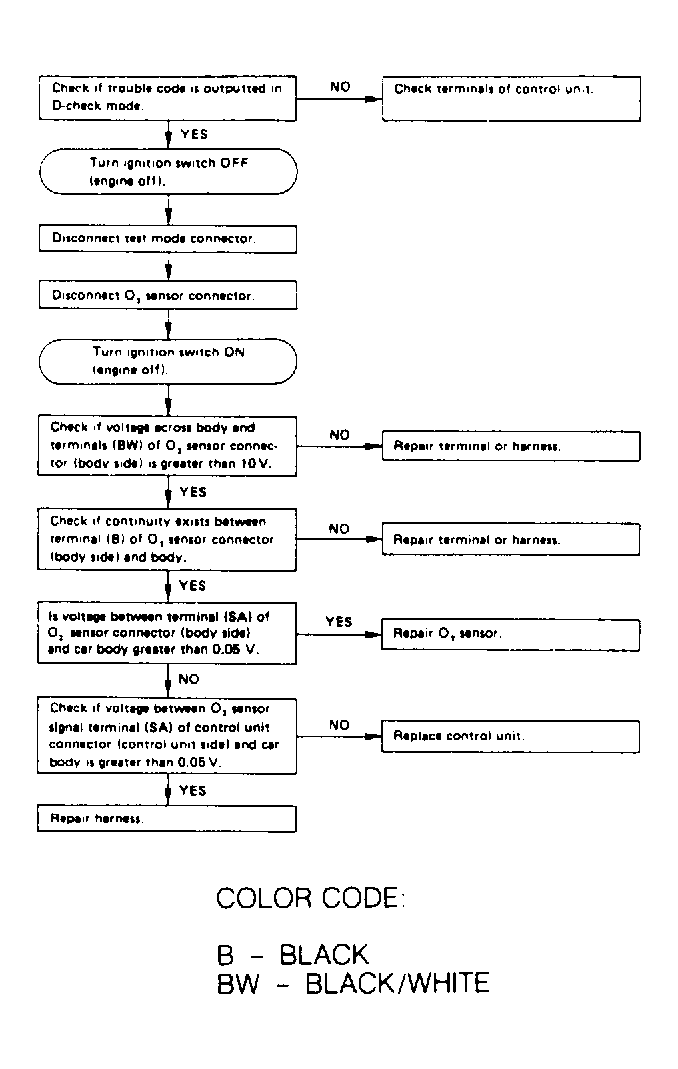

Fig 2: Trouble Code 32, Oxygen Sensor (Calif.)

G95130

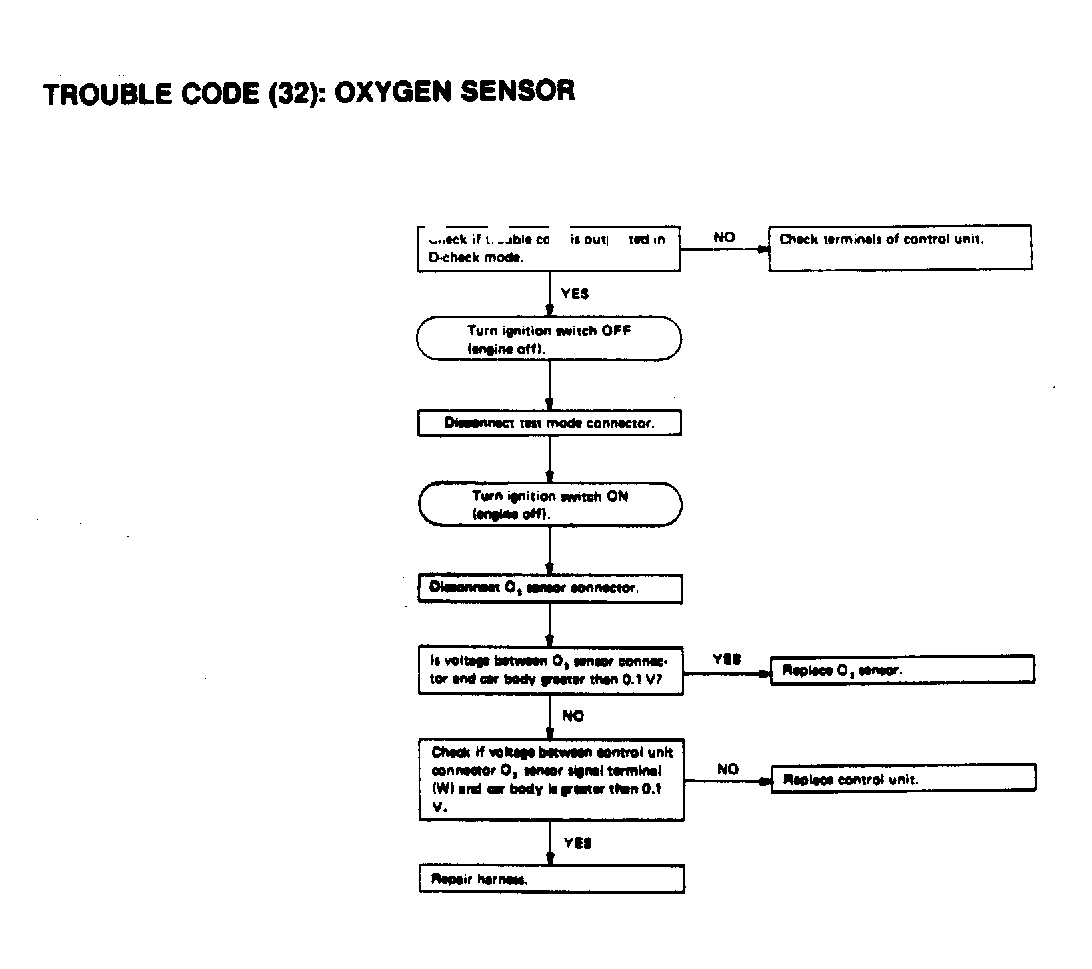

Fig 3: Trouble Code 32, Oxygen Sensor (Exc. Calif.)

G61876
