Fuel Evaporation: Notes

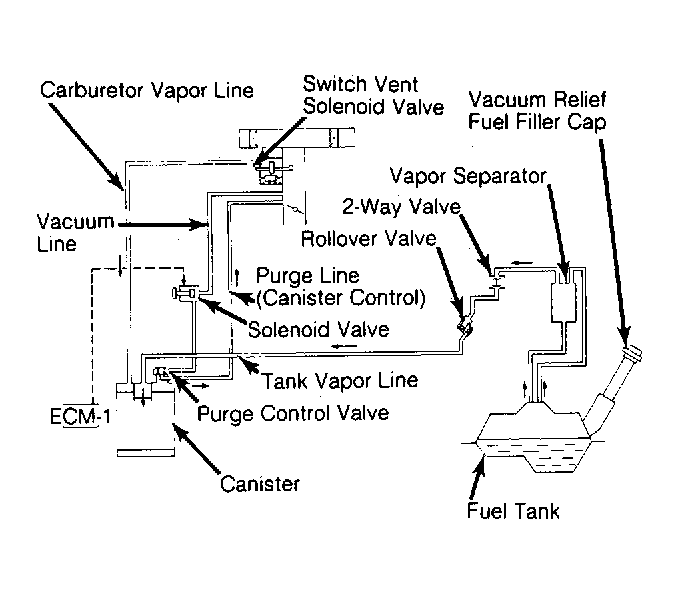

Fig 1: Justy Fuel Evaporation System
G118408Courtesy of SUBARU OF AMERICA, INC.

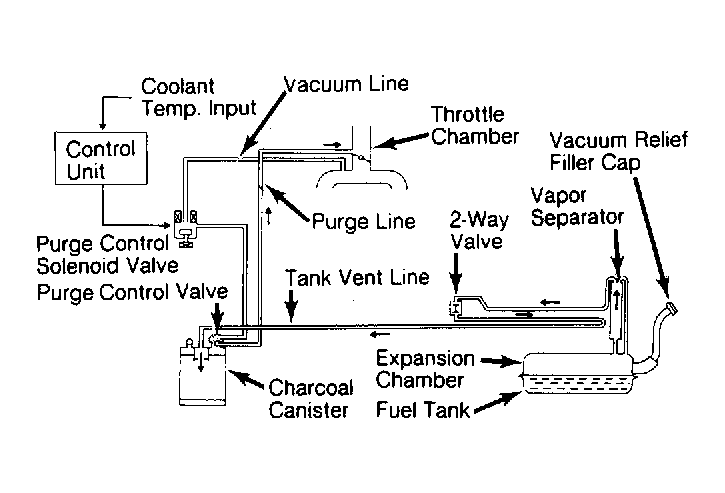

Fig 2: Non-Turbo Fuel Injected Engine Fuel Evaporation System
G118409Courtesy of SUBARU OF AMERICA, INC.

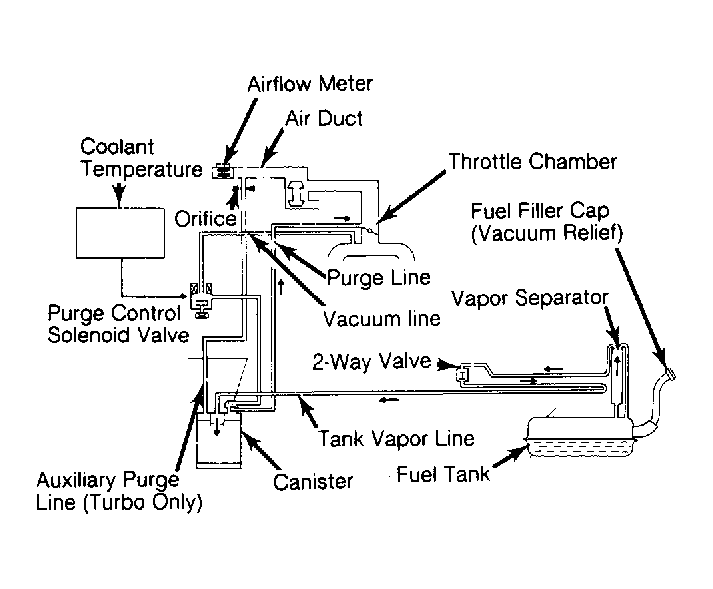

Fig 3: Turbo Fuel Injected Engine Fuel Evaporation System
G118410Courtesy of SUBARU OF AMERICA, INC.
CAUTION: DO NOT  inhale fuel vapor when blowing into fuel evaporation hoses.
