Engine Controls - Basic Testing
>>
Legacy Ignition Control System Test
Legacy Ignition Control System Test

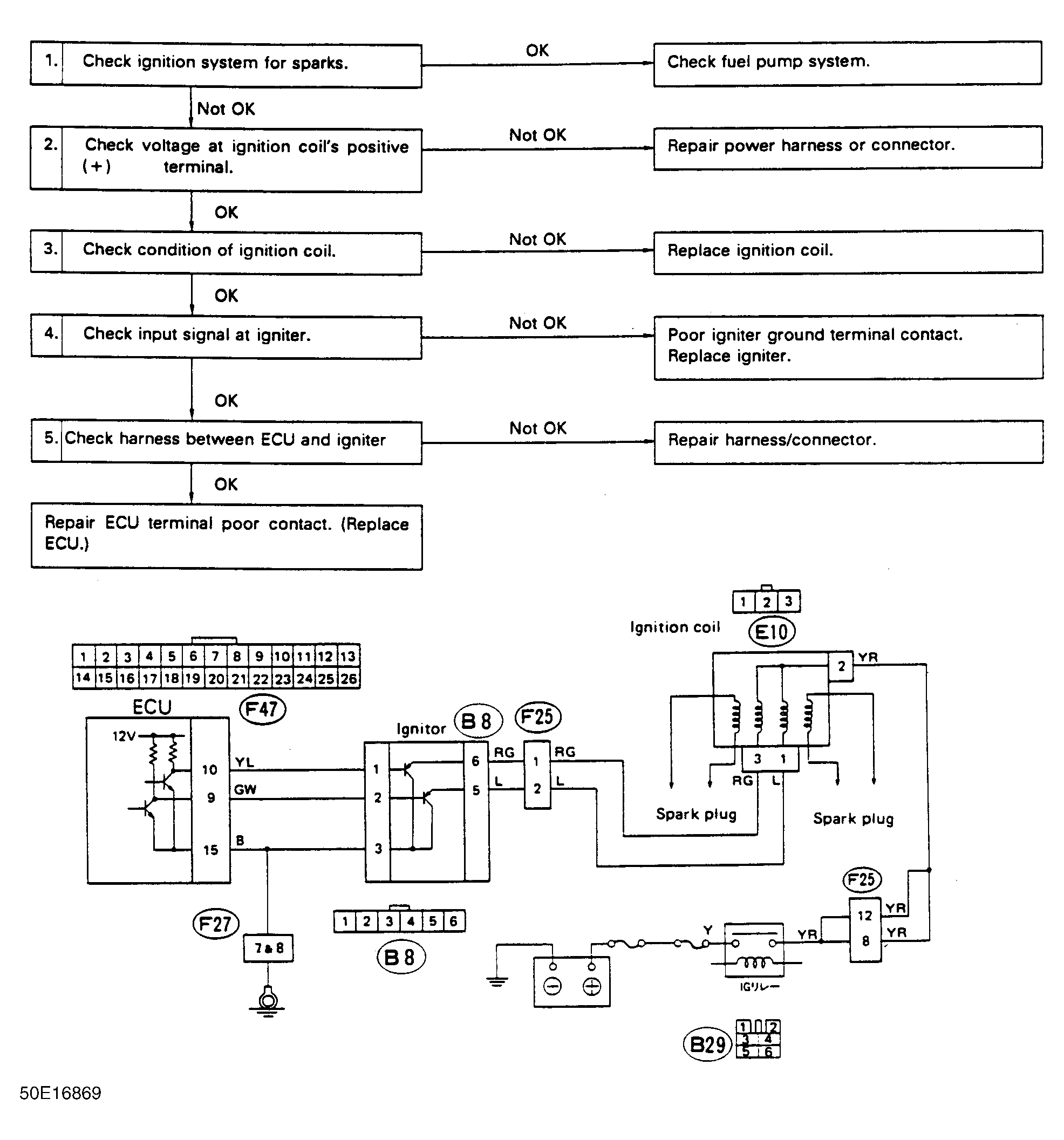

Fig 1: Flow Chart & Schematic - Legacy Ignition System
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
