Code 23: Airflow Meter Circuit

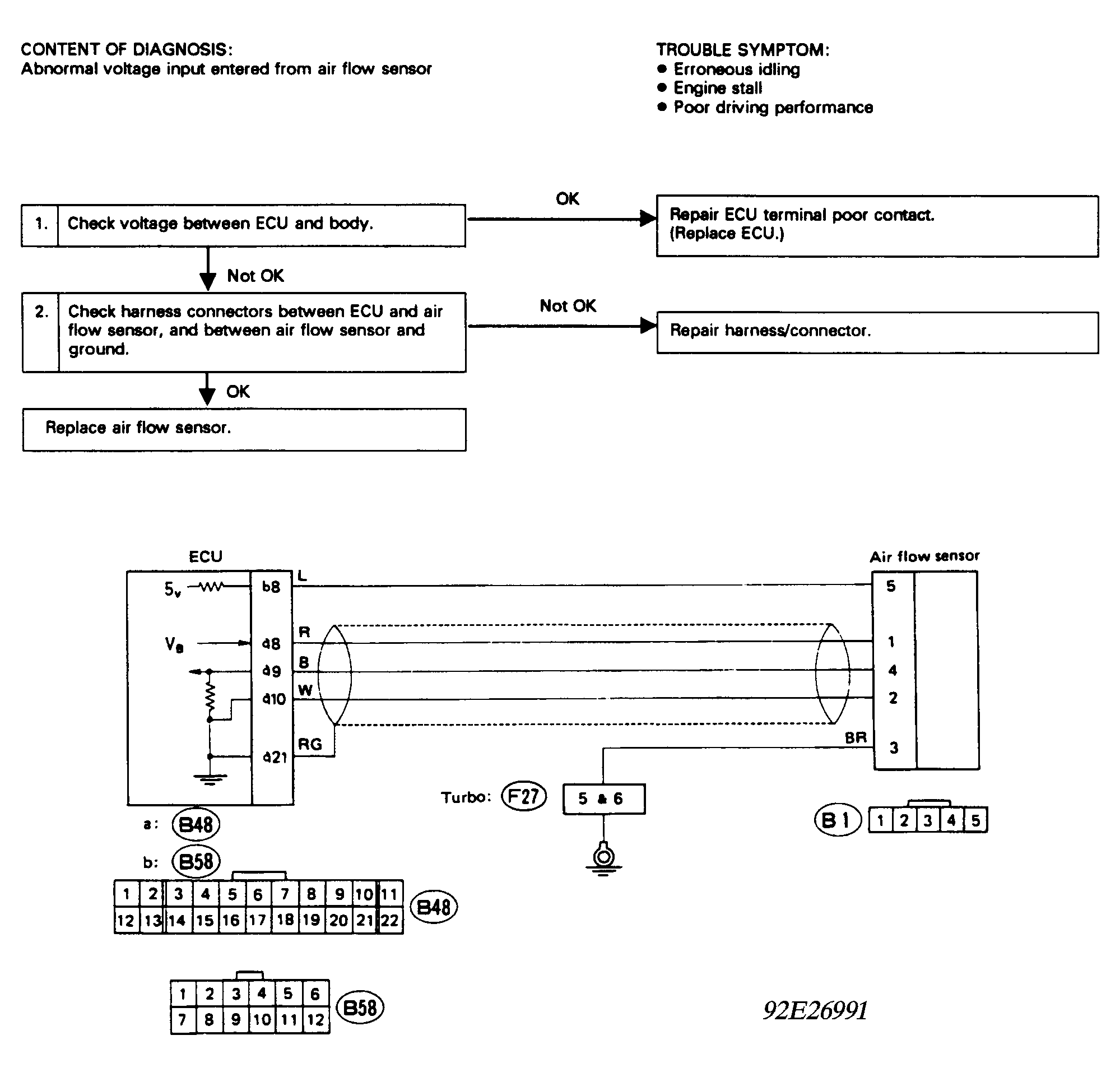

Fig 1: Schematic - Code 23, Airflow Sensor Circuit

G92E26991

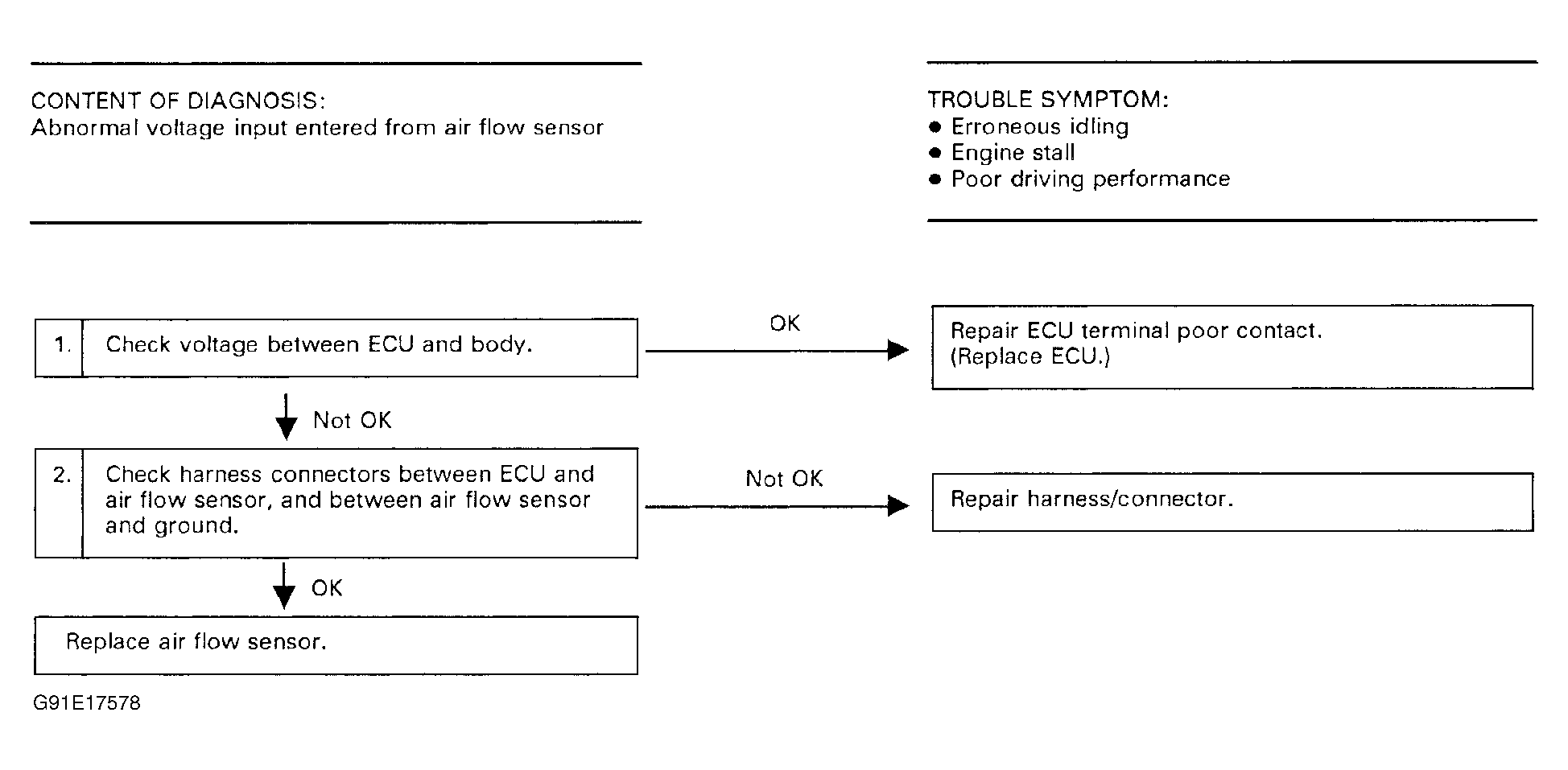

Fig 2: Flow Chart - Code 23, Airflow Sensor Circuit

G91E17578
