Code 24: By-Pass Air Control Valve

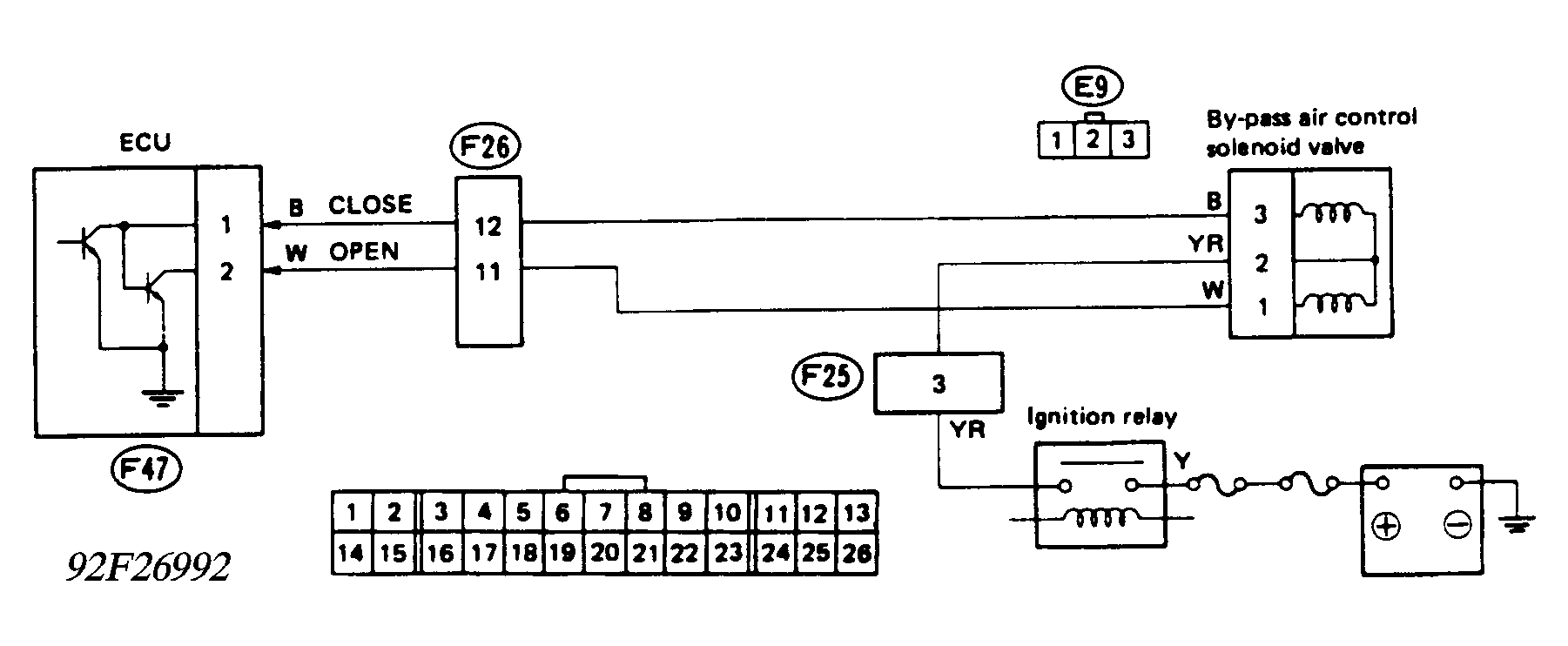

Fig 1: Schematic - Code 24, By-Pass Air Control Valve

G92F26992

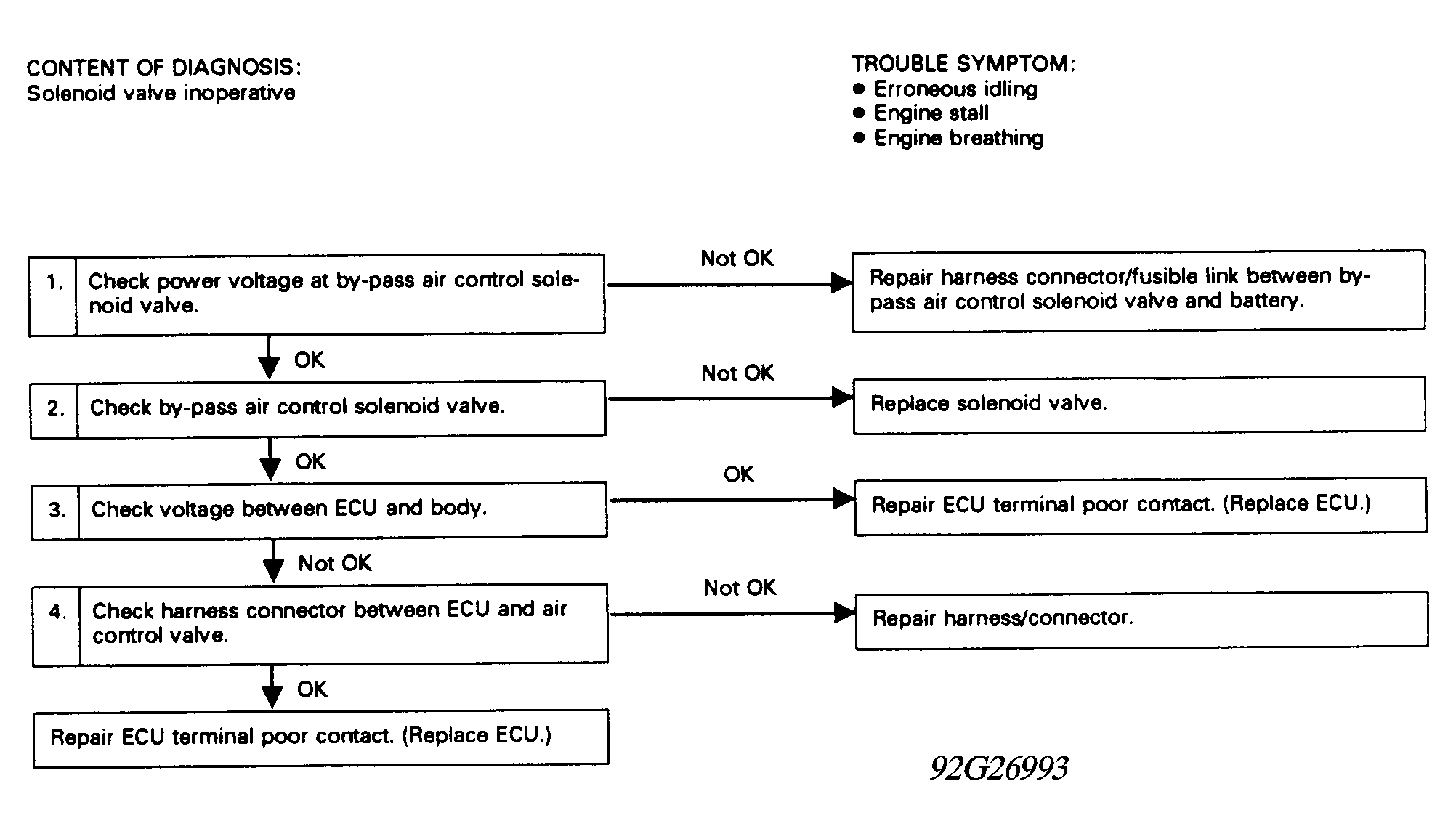

Fig 2: Flow Chart - Code 24, By-Pass Air Control Valve

G92G26993
