Home >> Subaru >> 1992 >> Legacy LE >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Diagnostic Code Charts >> Code 31: Throttle Position Sensor

Code 31: Throttle Position Sensor

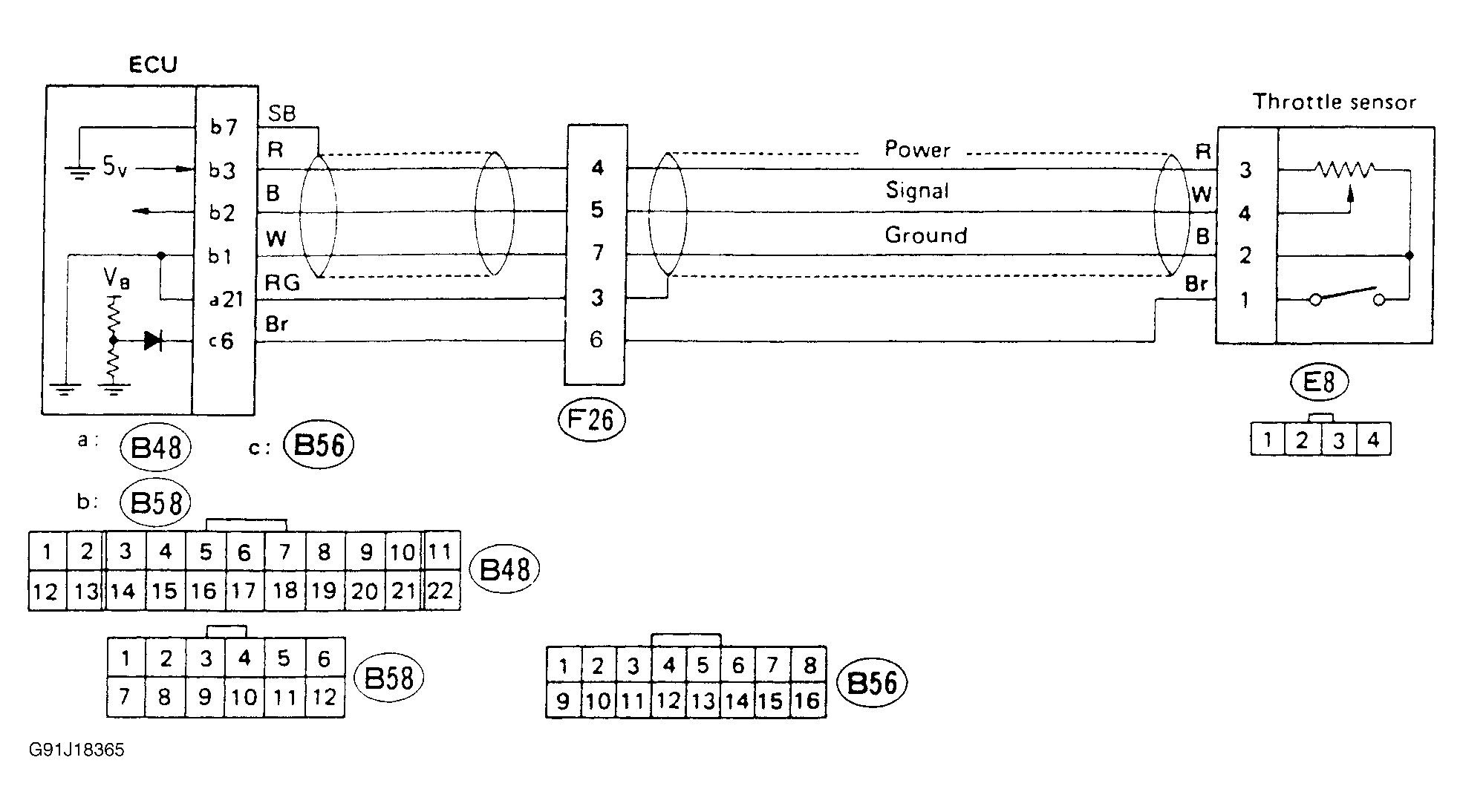

Fig 1: Schematic - Code 31, Throttle Position Sensor

G91J18365

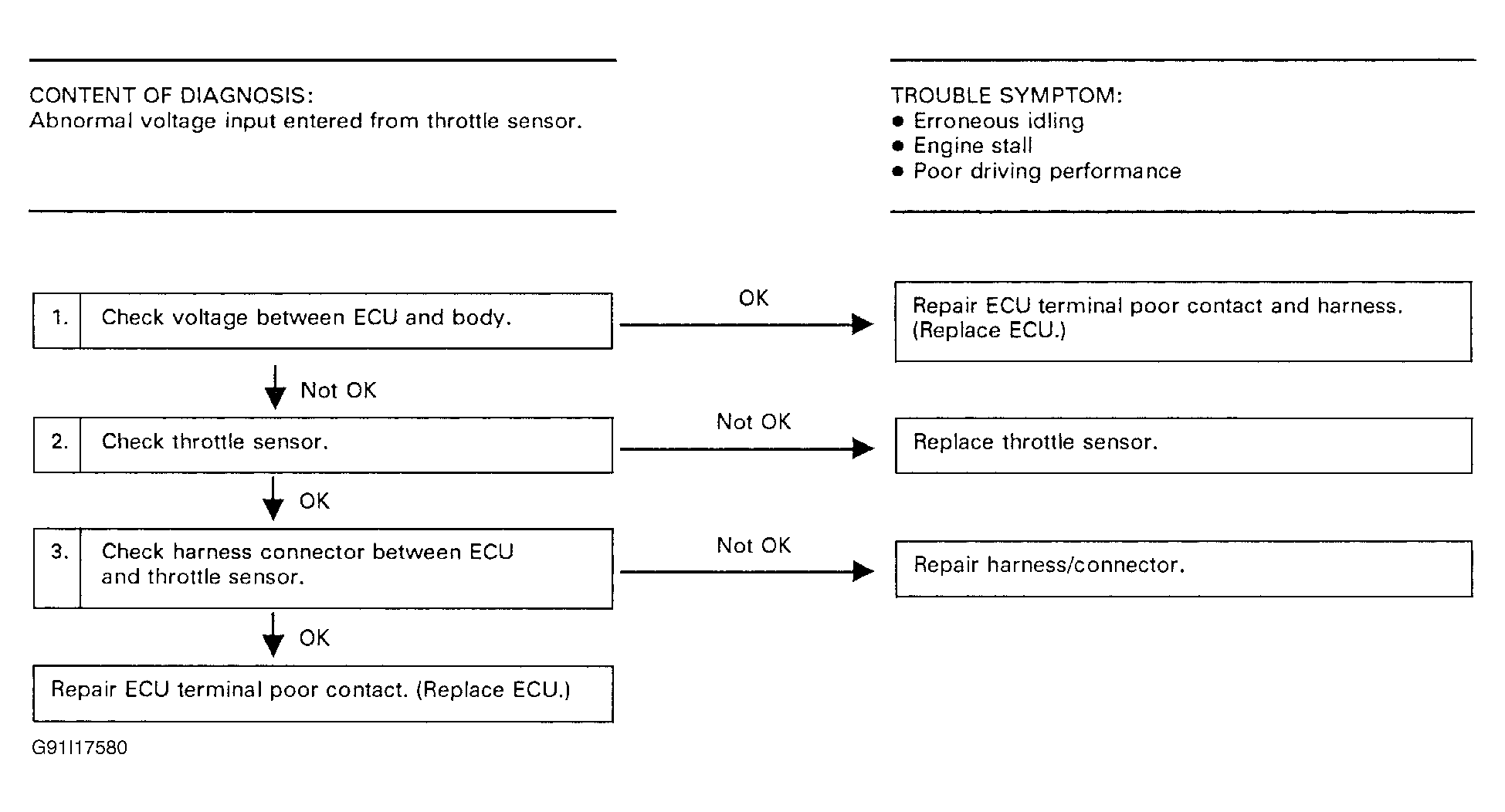

Fig 2: Flow Chart - Code 31, Throttle Position Sensor

G91I17580
