Code 32: Oxygen (O2) Sensor
Code 32: Oxygen (O2) Sensor

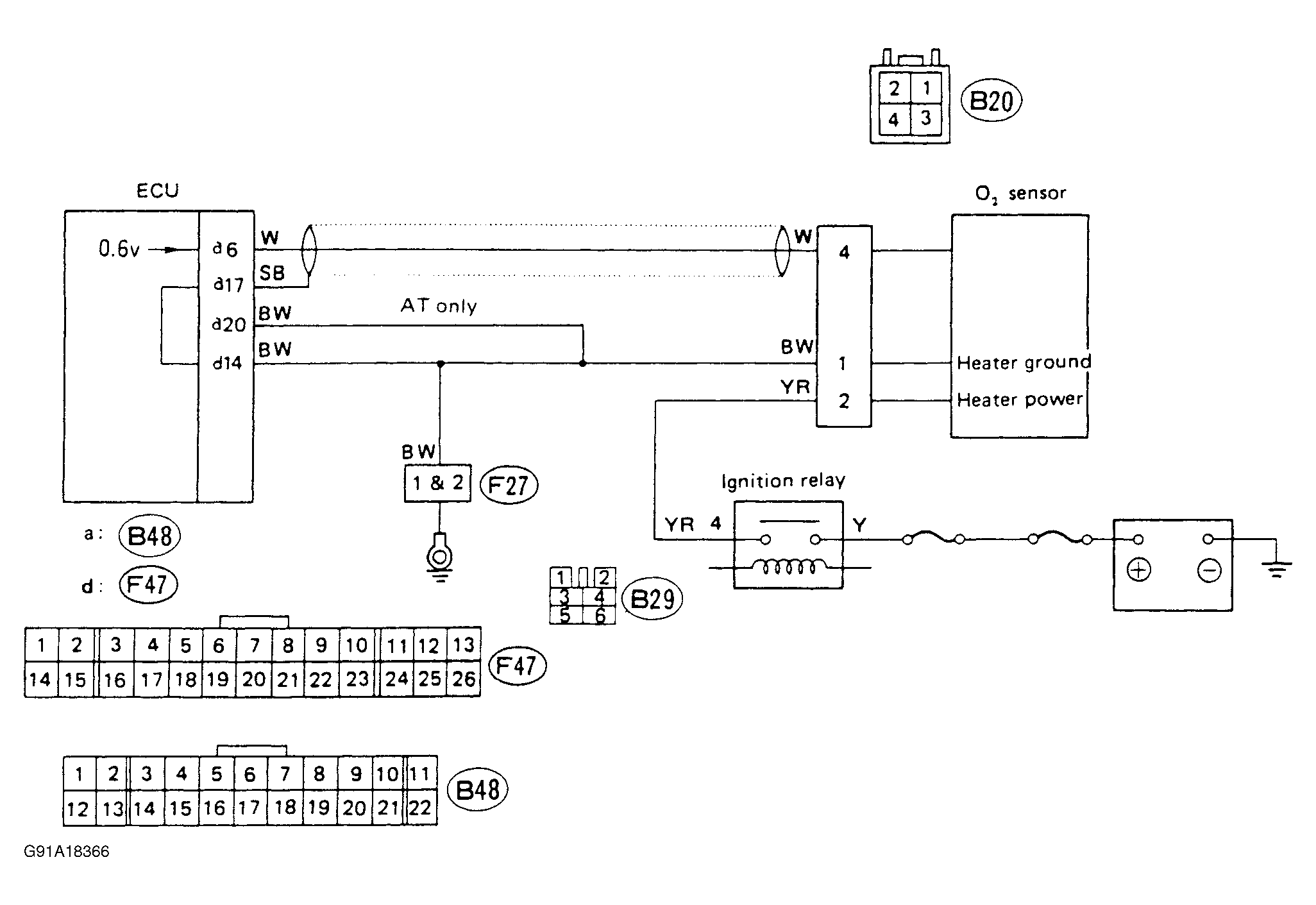

Fig 1: Schematic - Code 32, Oxygen (O2) Sensor

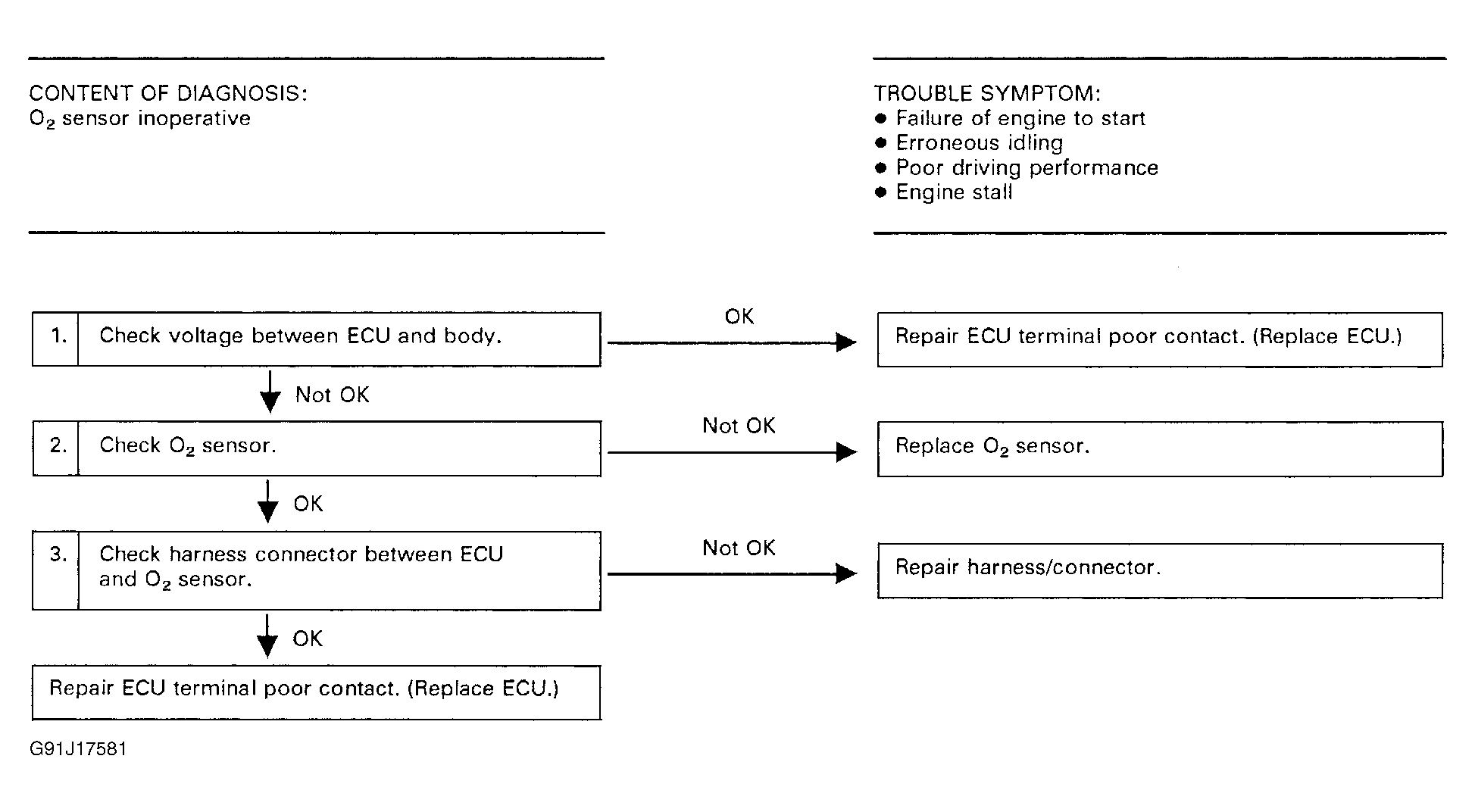

Fig 2: Flow Chart - Code 32, Oxygen (O2) Sensor
