Home >> Subaru >> 1992 >> Legacy LE >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Diagnostic Code Charts >> Code 42: Idle Switch

Code 42: Idle Switch

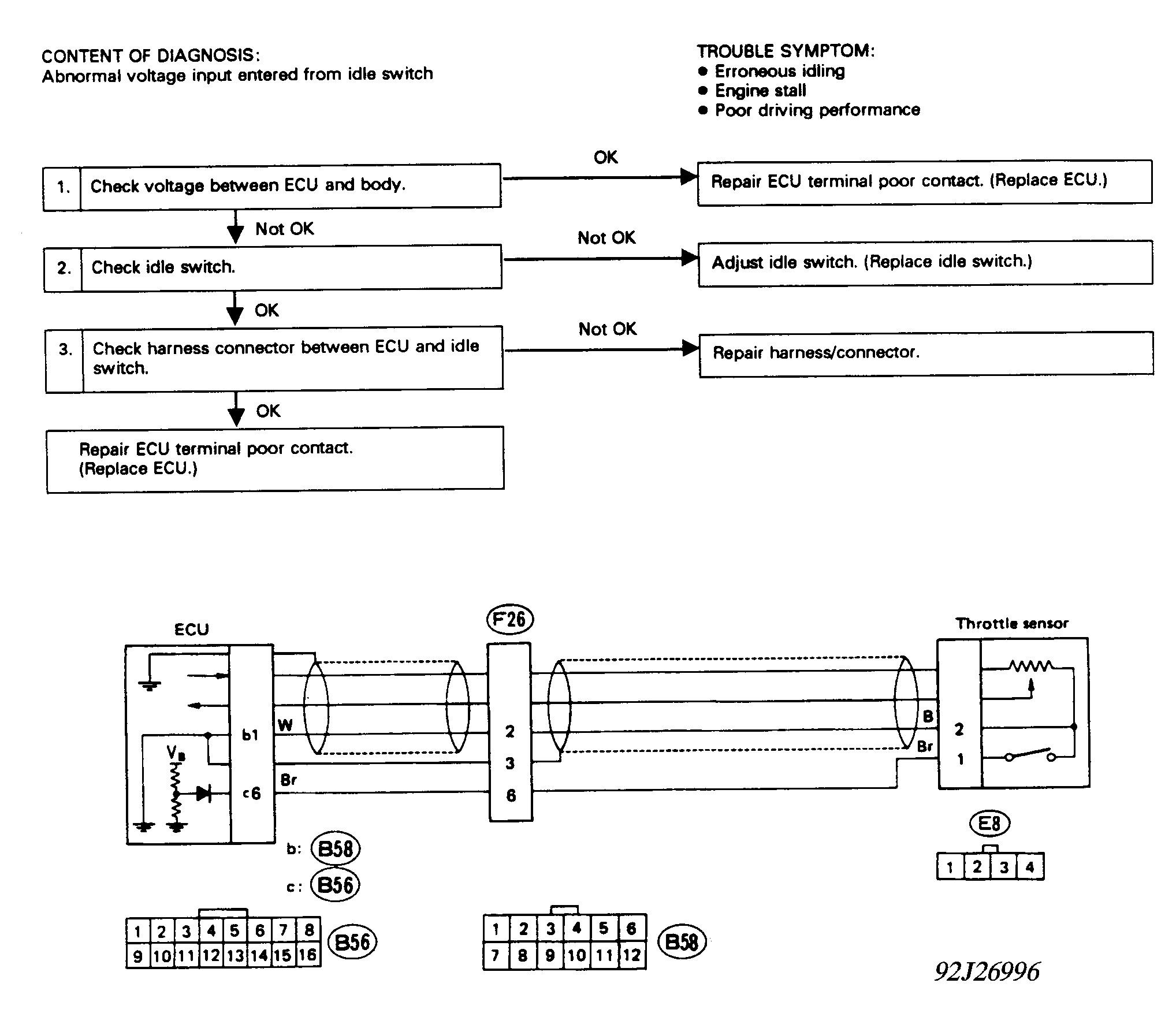

Fig 1: Schematic - Code 42, Idle Switch

G92J26996

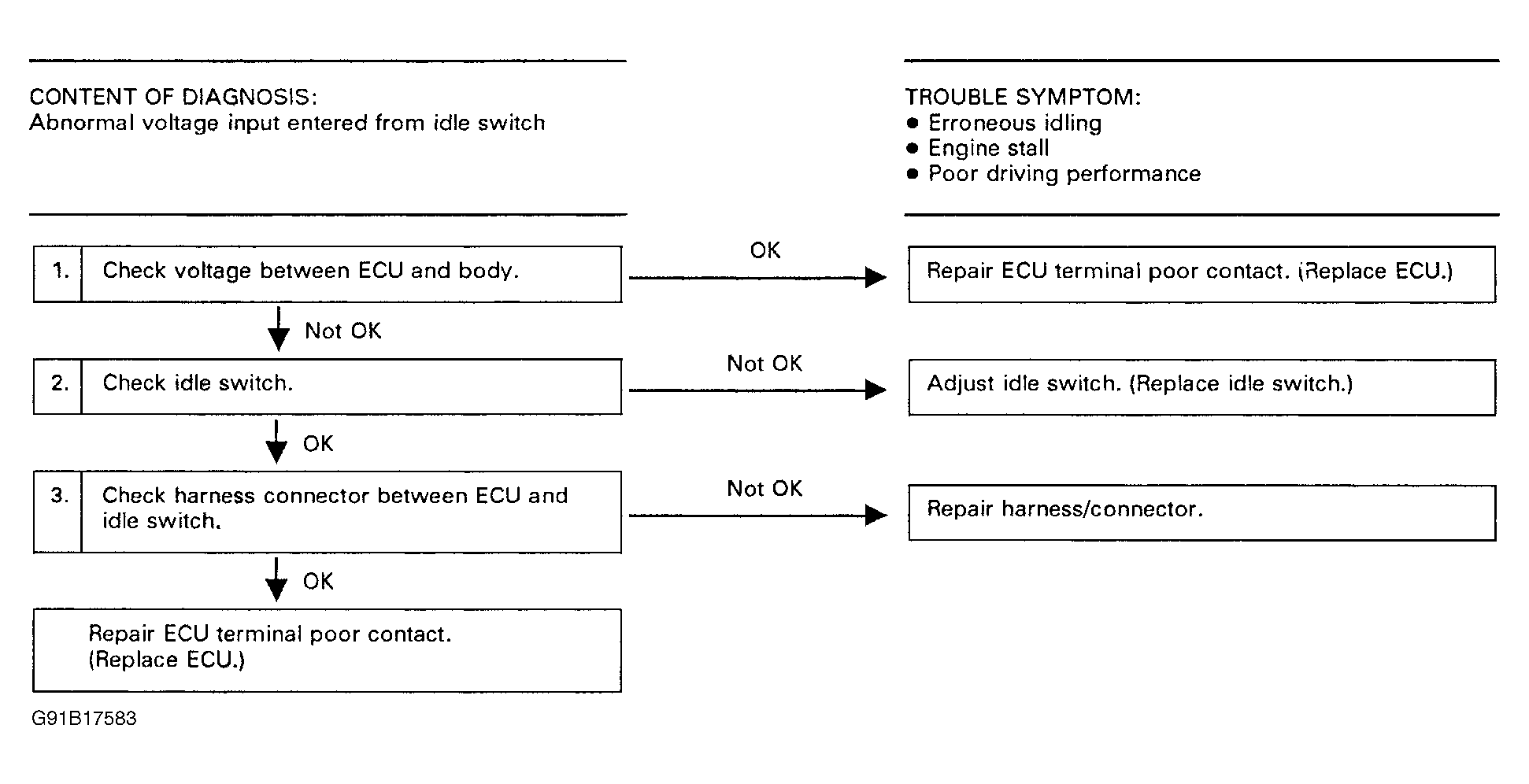

Fig 2: Flow Chart - Code 42, Idle Switch

G91B17583
