Code 51: Inhibitor Switch (Auto. Trans.)

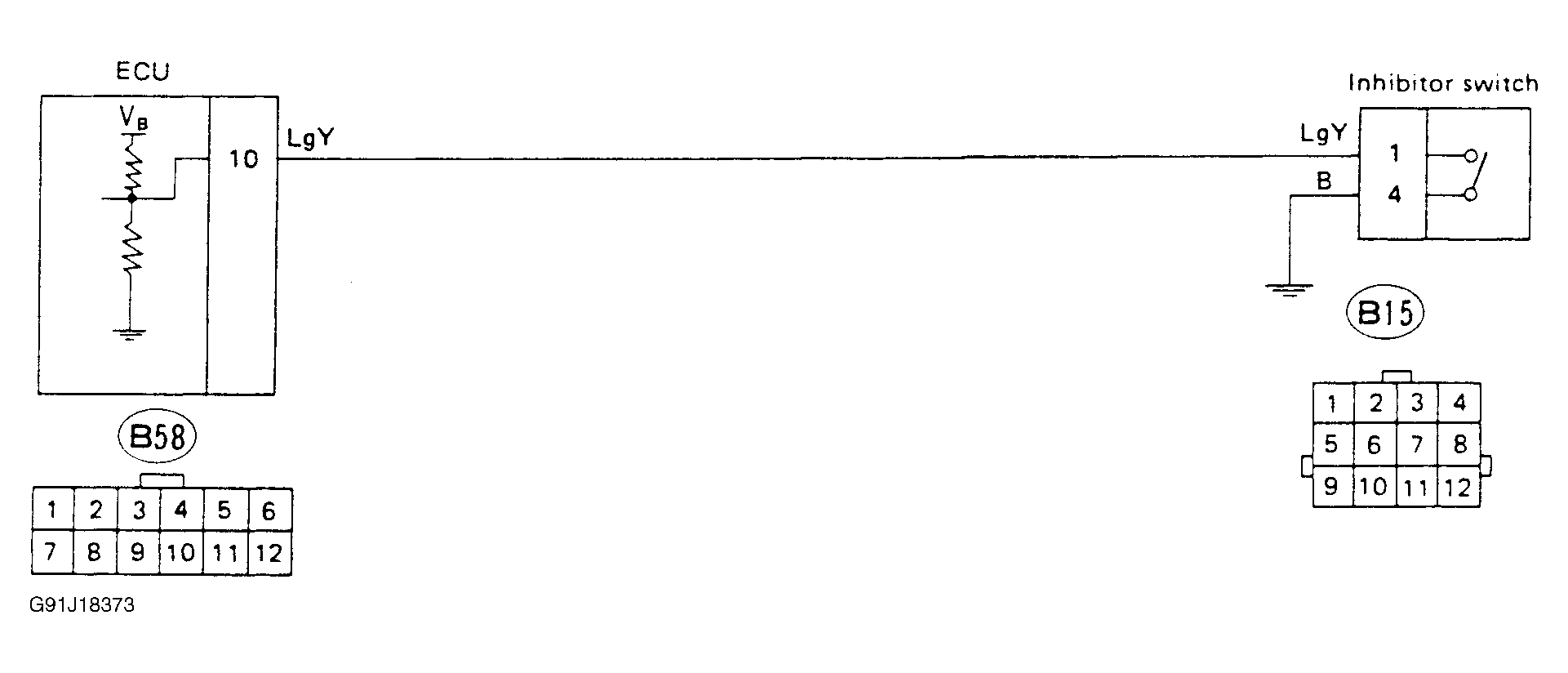

Fig 1: Schematic - Code 51, Inhibitor Switch (Auto. Trans.)

G91J18373

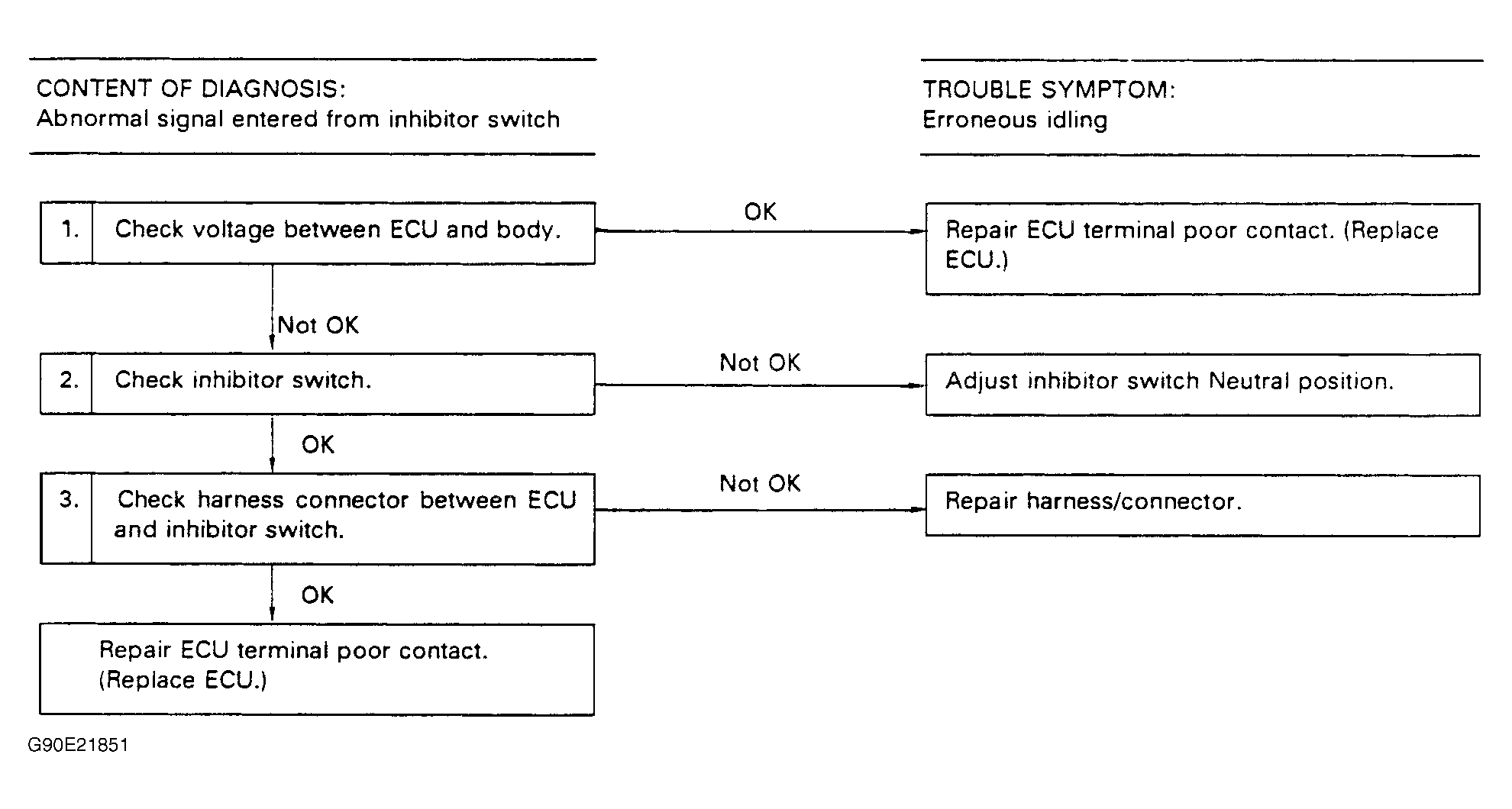

Fig 2: Flow Chart - Code 51, Inhibitor Switch (Auto. Trans.)

G90E21851
