Code 51: Neutral Safety Switch (Man. Trans.)
Code 51: Neutral Safety Switch (Man. Trans.)

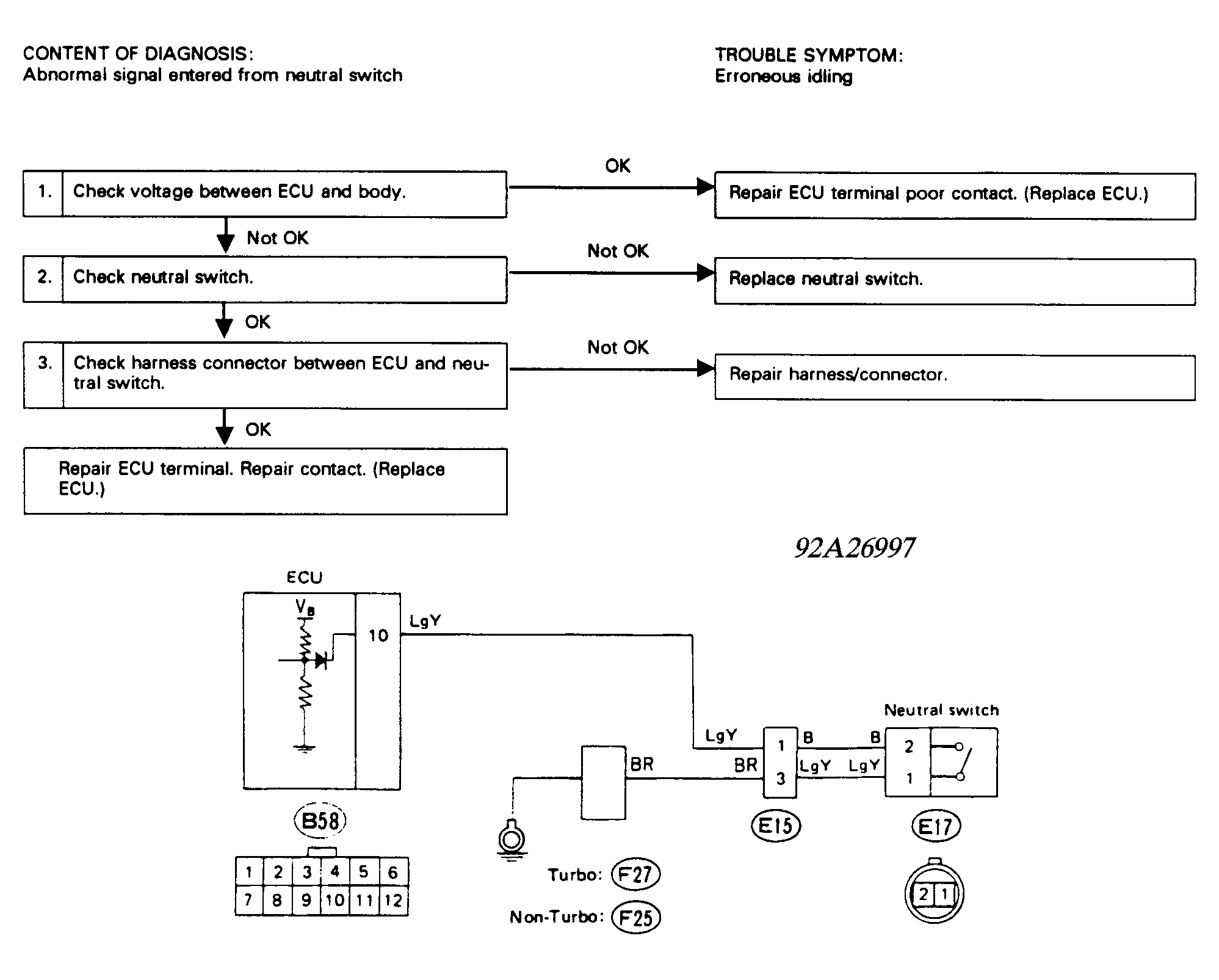

Fig 1: Schematic - Code 51, Neutral Safety Switch (Man. Trans.)

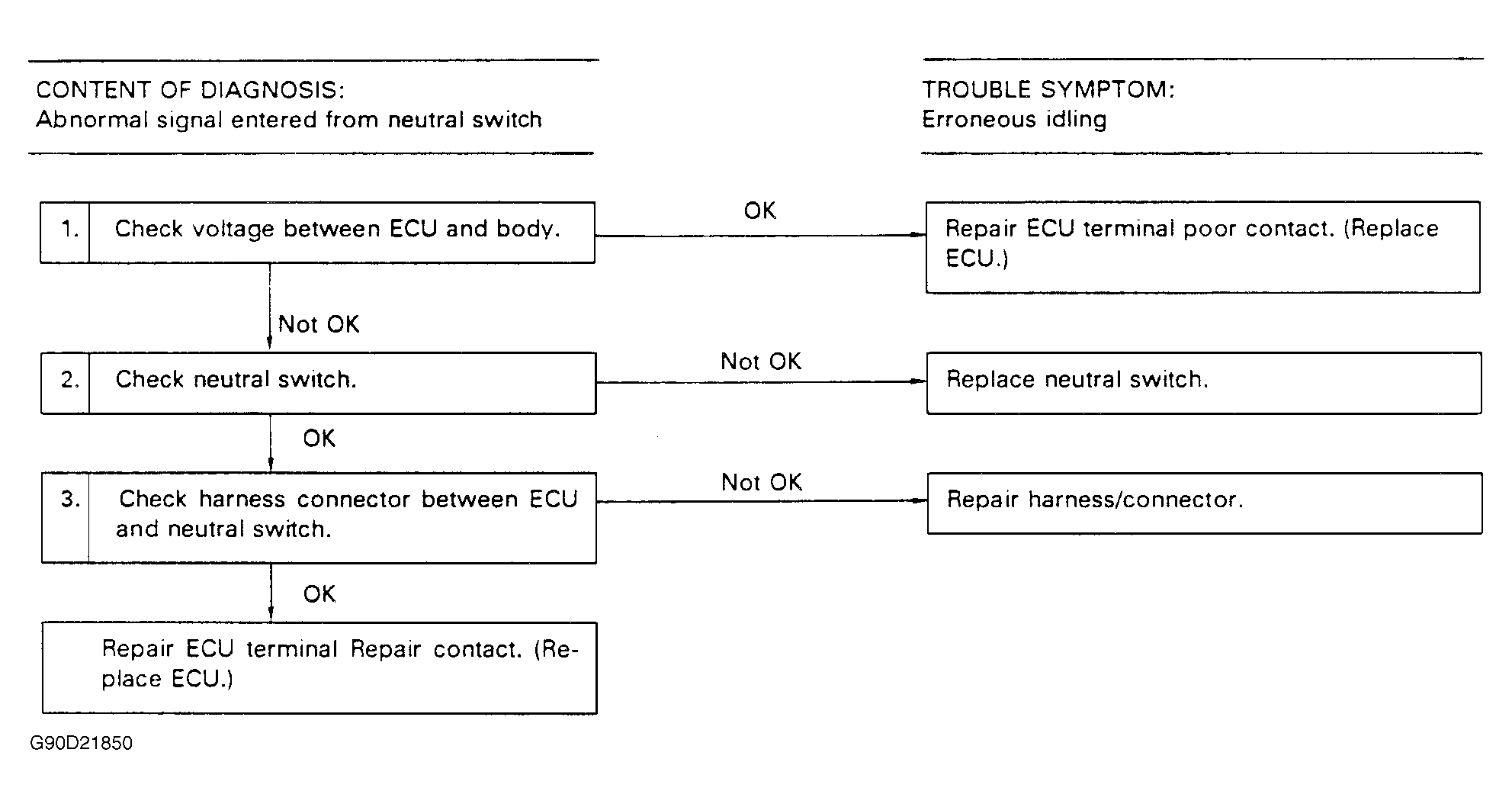

Fig 2: Flow Chart - Code 51, Neutral Safety Switch (Man. Trans.)
