Home >> Subaru >> 1992 >> SVX >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Diagnostic Code Charts >> Code 12: Starter Switch

Code 12: Starter Switch

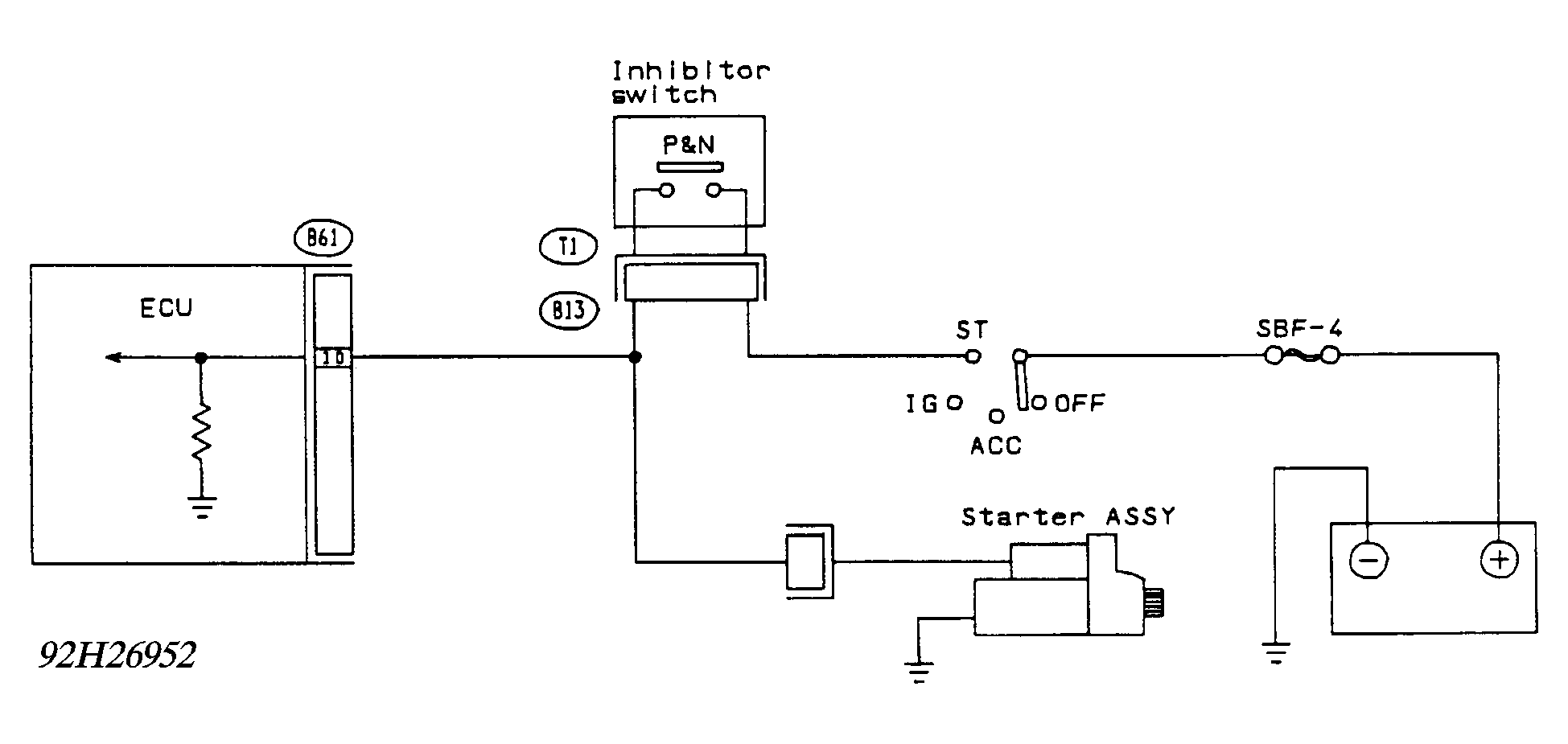

Fig 1: Schematic - Code 12, Starter Switch

G92H26952

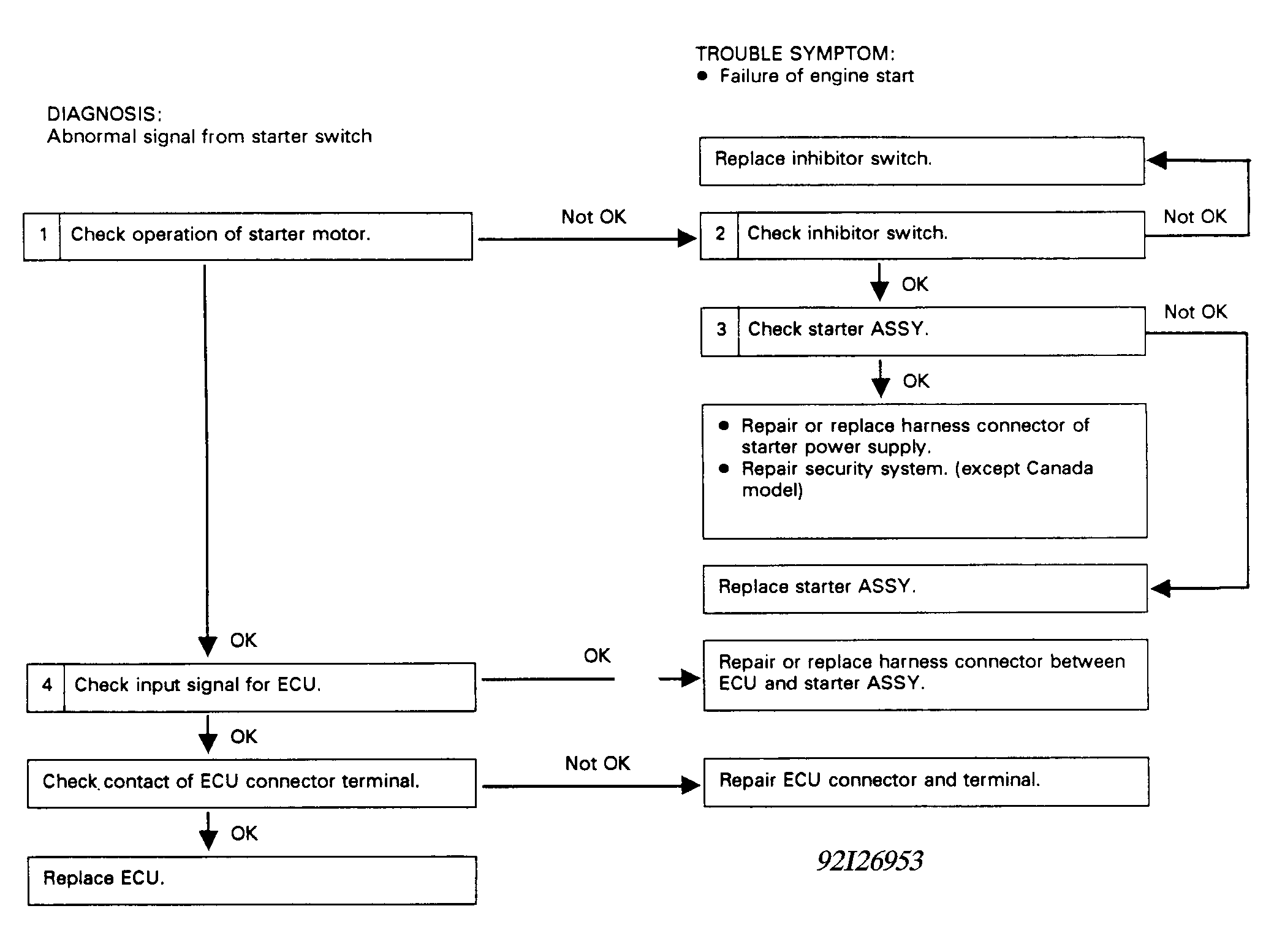

Fig 2: Flow Chart - Code 12, Starter Switch

G92I26953
