Code 22: Knock Sensor No. 1

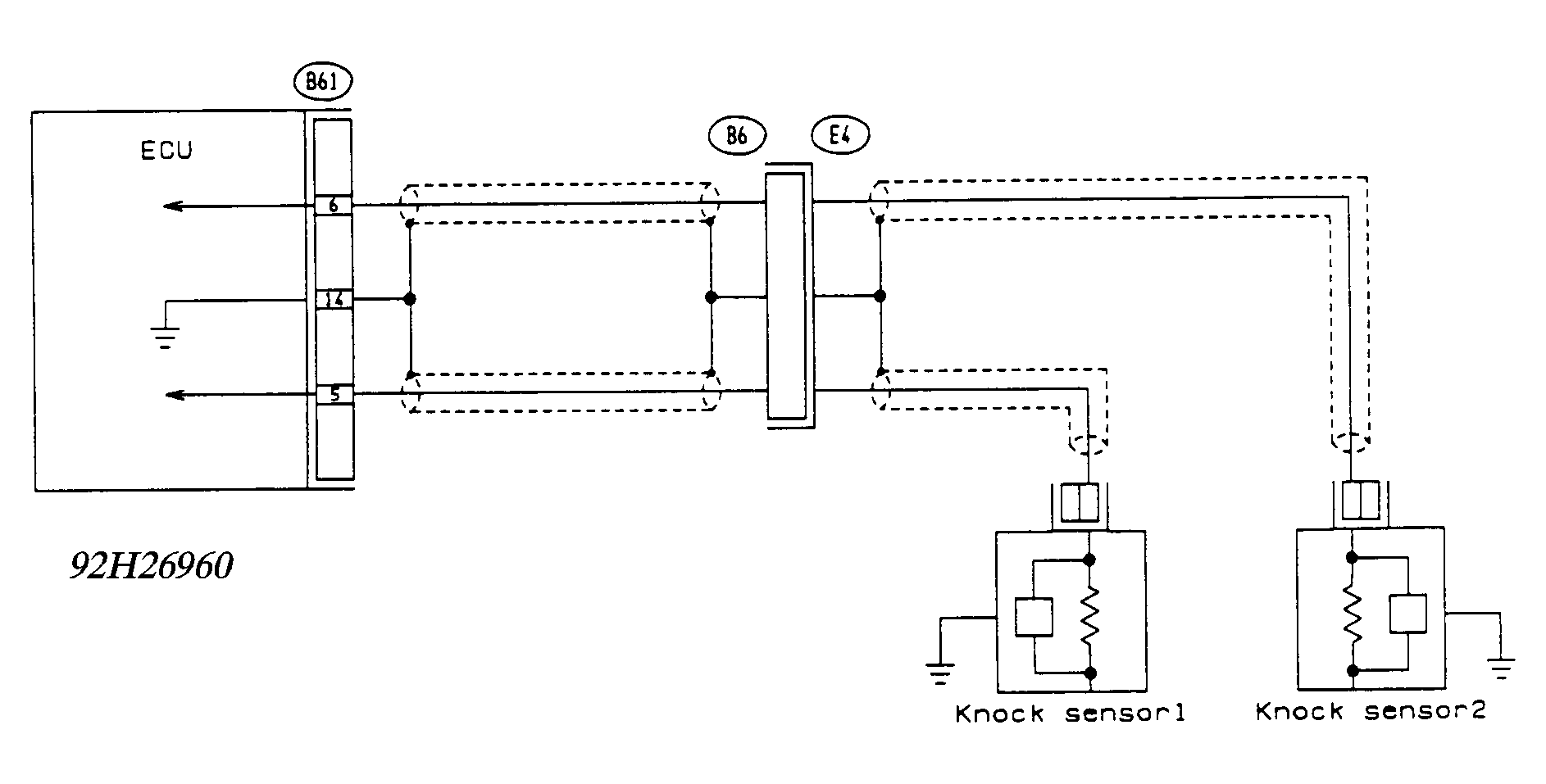

Fig 1: Schematic - Code 22, Knock Sensor

G92H26960

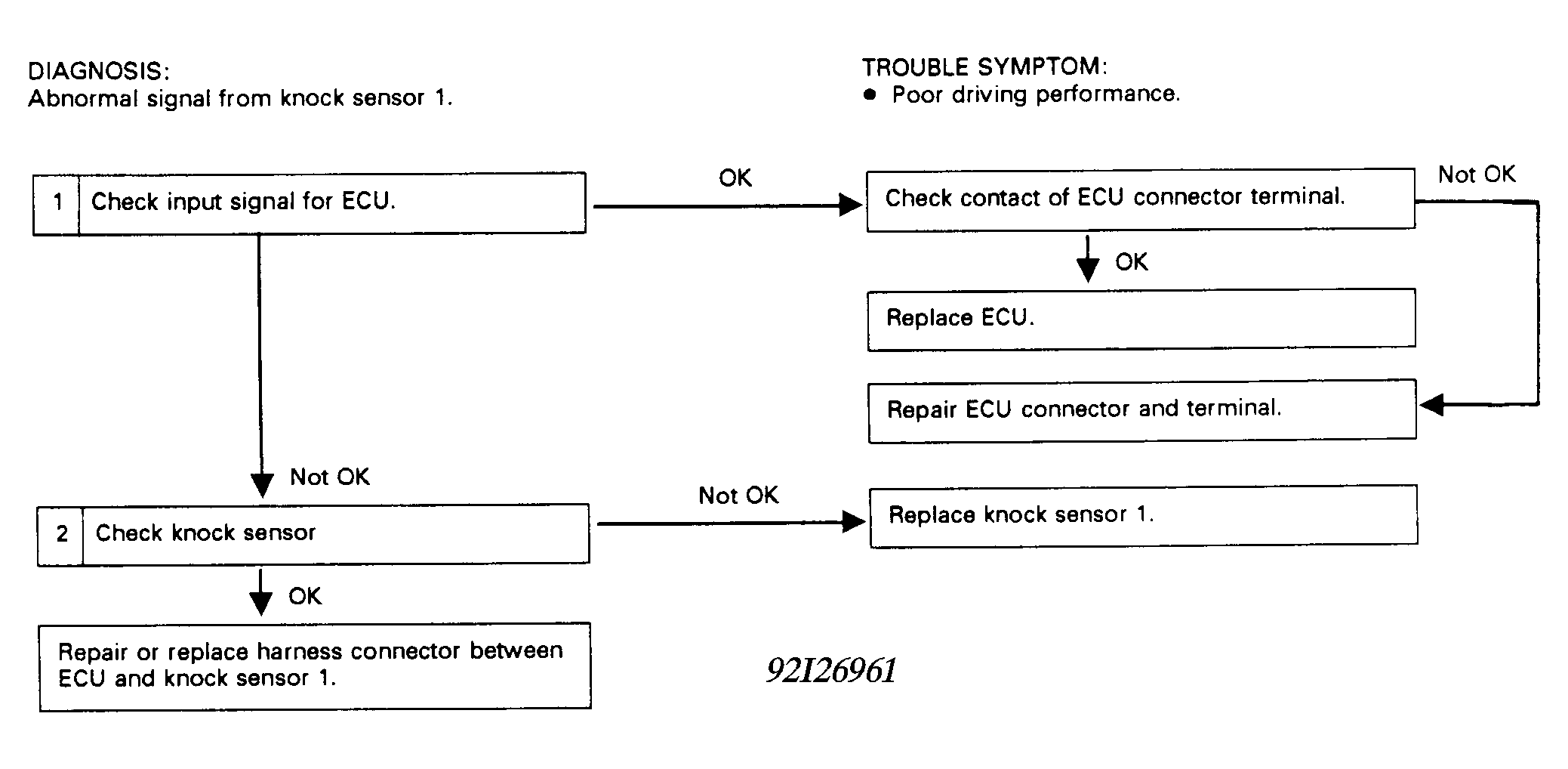

Fig 2: Flow Chart - Code 22, Knock Sensor

G92I26961
