Home >> Subaru >> 1992 >> SVX >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Diagnostic Code Charts >> Code 31: Throttle Position Sensor

Code 31: Throttle Position Sensor

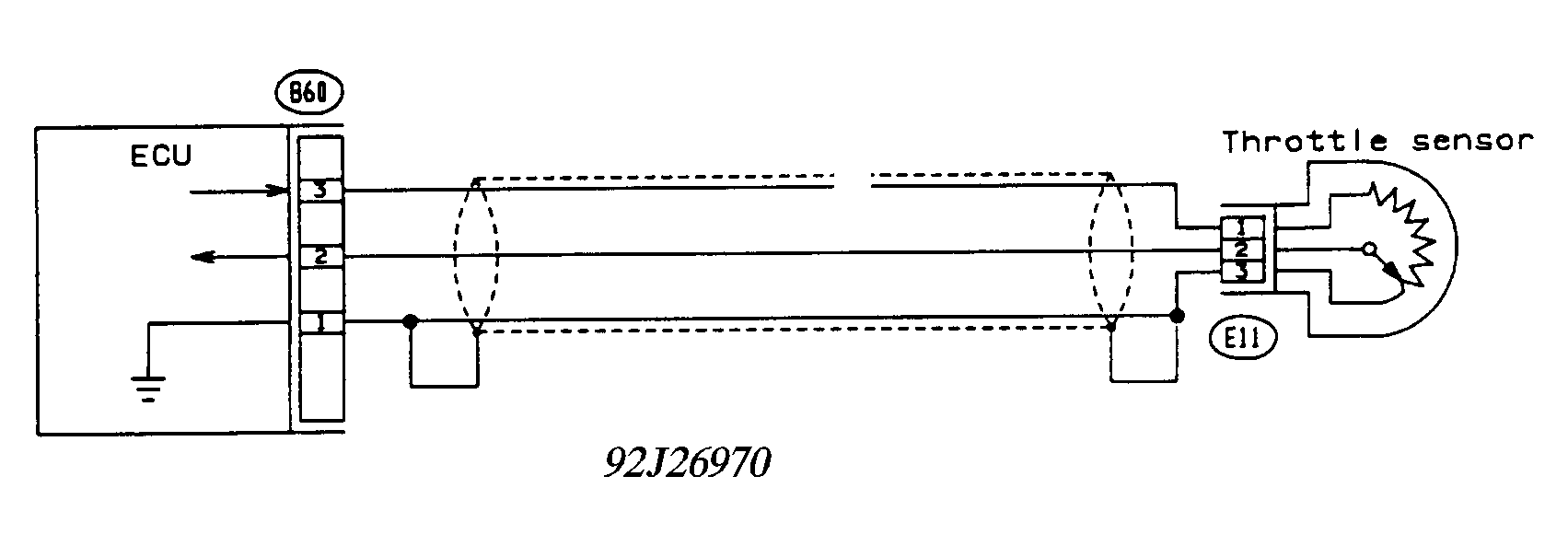

Fig 1: Schematic - Code 31, Throttle Position Sensor

G92J26970

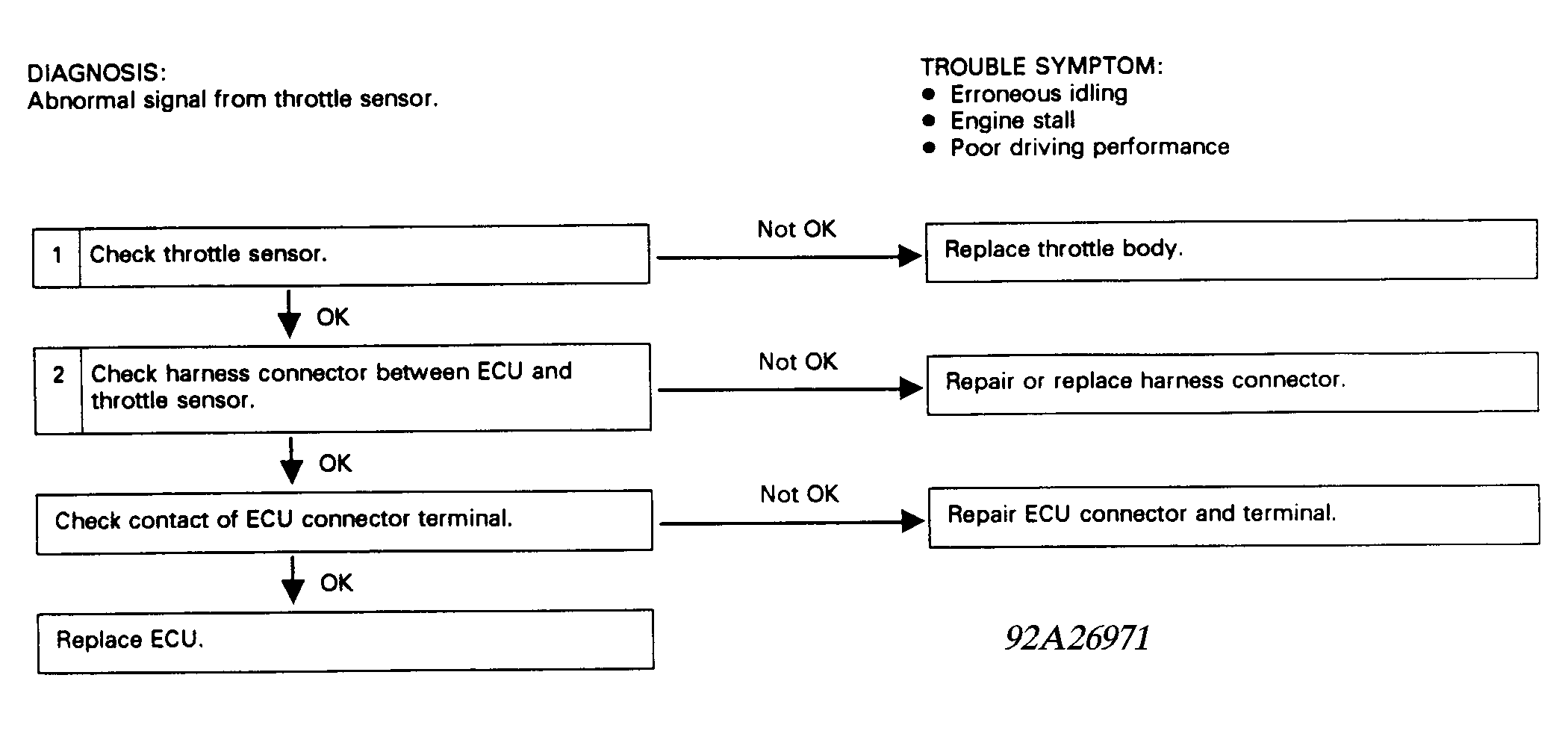

Fig 2: Flow Chart - Code 31, Throttle Position Sensor

G92A26971
