Firing Order & Timing Marks

NOTE: For firing order, see Fig 1 . For timing marks, see Fig 2 .

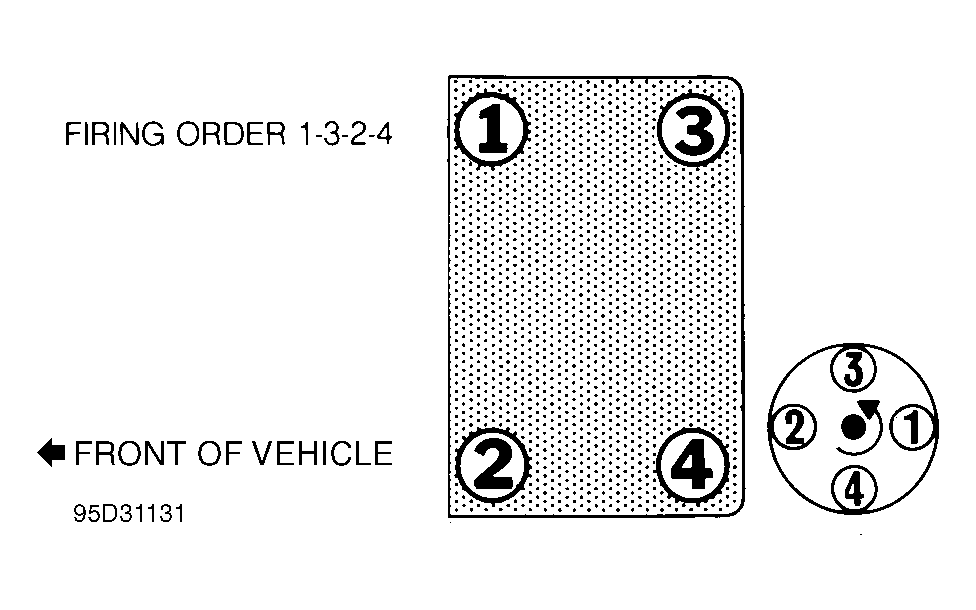

Fig 1: Firing Order & Distributor Rotation

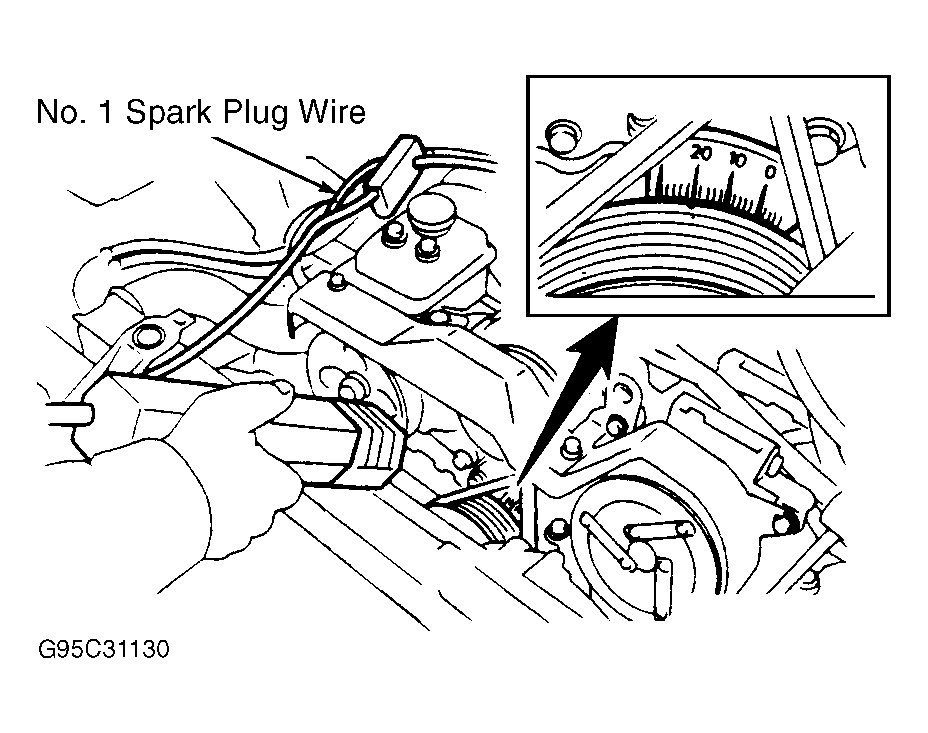

Fig 2: Locating Ignition Timing Mark

Courtesy of SUBARU OF AMERICA, INC.
