Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

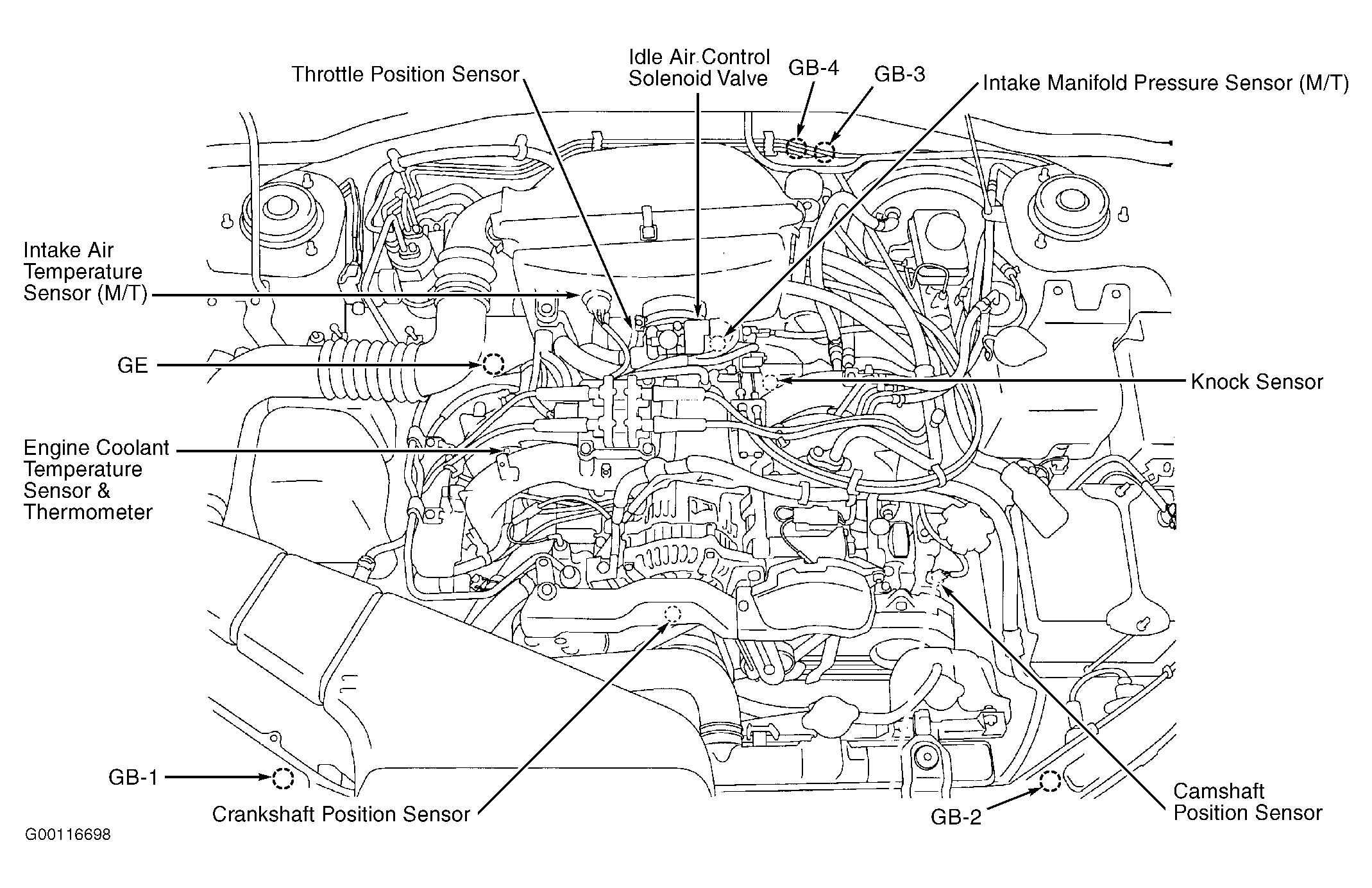

Fig 1: Engine Compartment

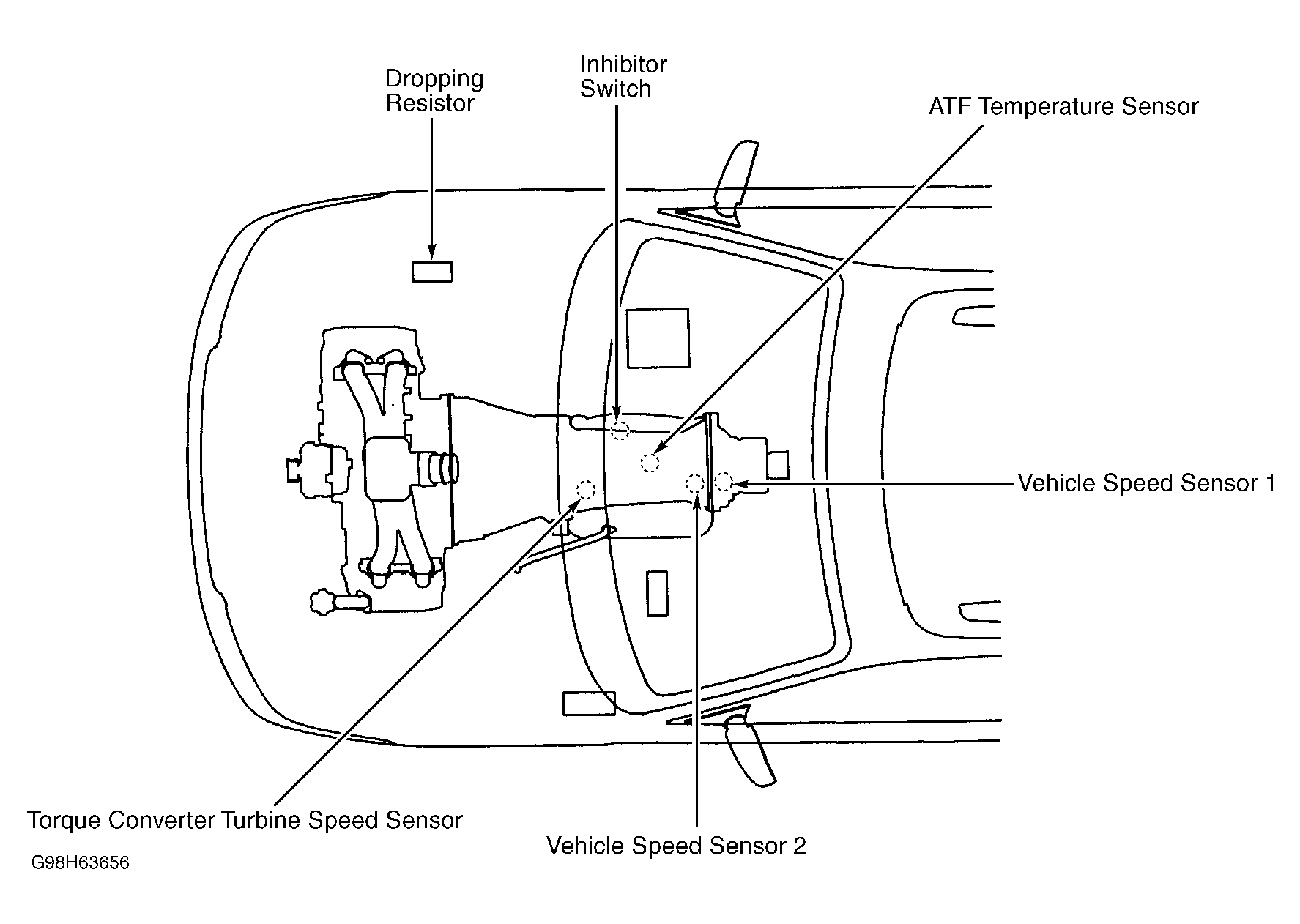

Fig 2: Front Of Vehicle

Fig 3: Vehicle Overview

Fig 4: Vehicle Overview
