Operation Of Shift Select Lever

WARNING: STOP the engine while checking operation of select lever.
  1. Check that select lever does not move from "N" to "R" without pushing the button.
  2. Check that select lever does not move from "R" to "P" without pushing the button.
  3. Check that select lever does not move from "P" to "R" without pushing the button.
  4. Check that select lever does not move from "3" to "2" without pushing the button.

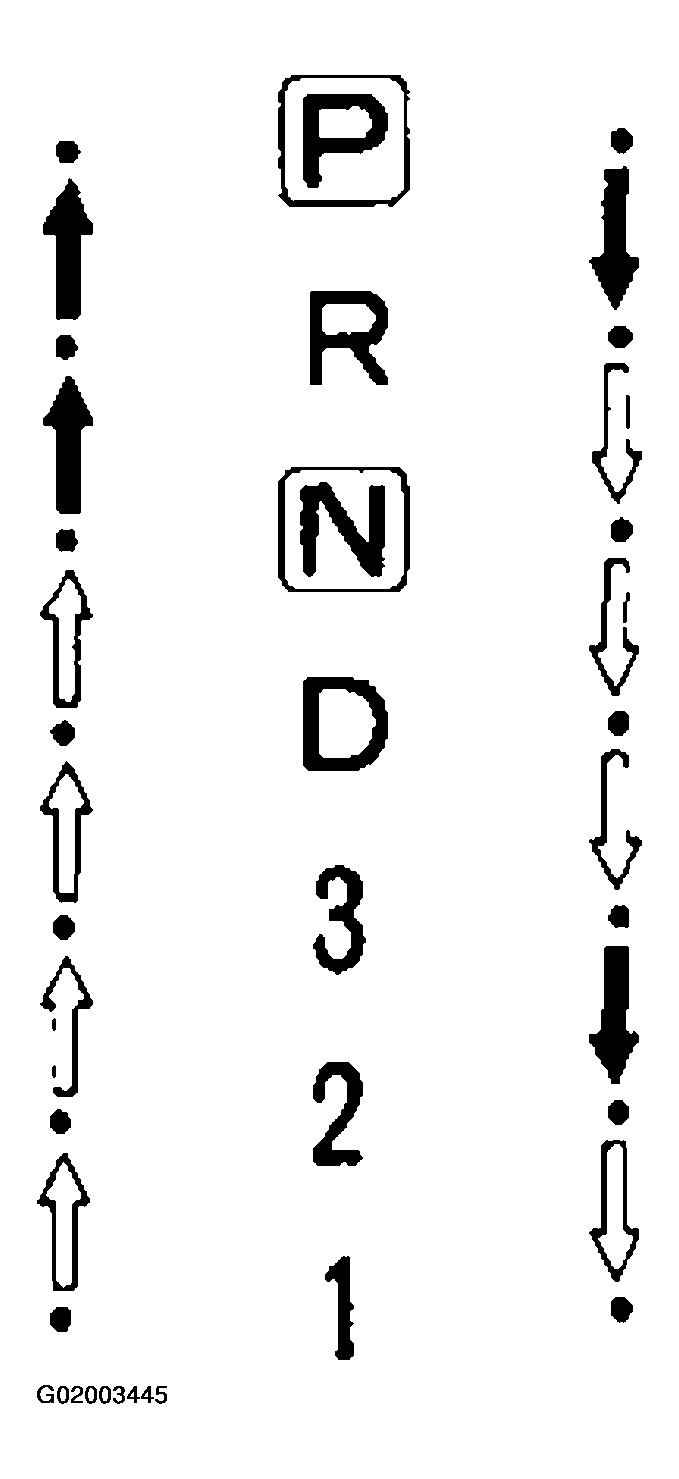

Fig 1: Identifying Operation Of Shift Select Lever
G02003445
