Home >> Subaru >> 2001 >> Forester Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnostics >> Schematic

Automatic Trans: Diagnostics: Schematic

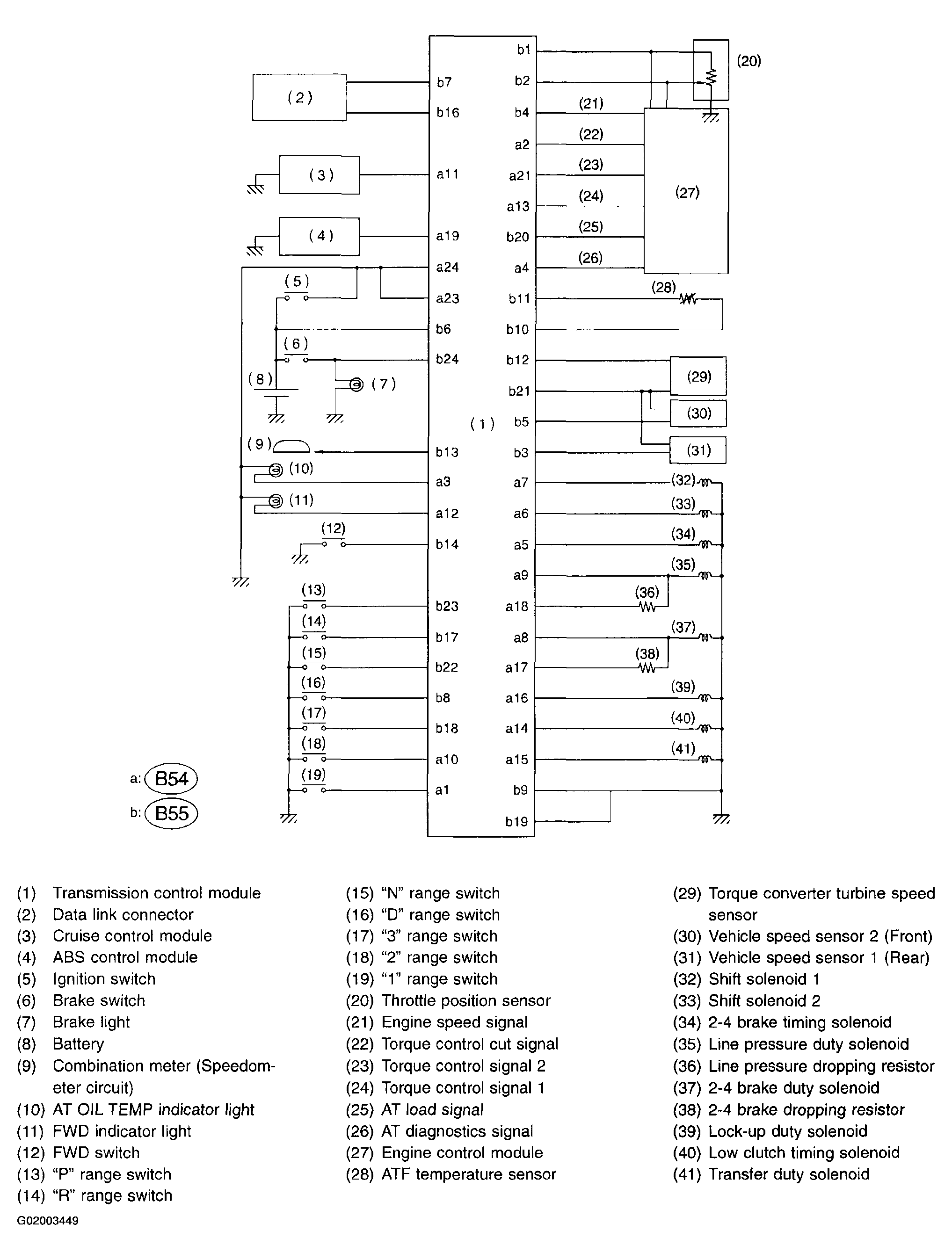

Fig 1: Identifying TCM Pin-Outs & Function

G02003449
