Relay Box

  1. Disconnect ground cable from battery.
  2. Remove air intake duct from engine compartment to facilitate removal of relay box.
  3. Disconnect connector from relay box.
  4. Unlock cable clip.
  5. Remove nuts which secure relay box, and remove relay box and connector bracket.

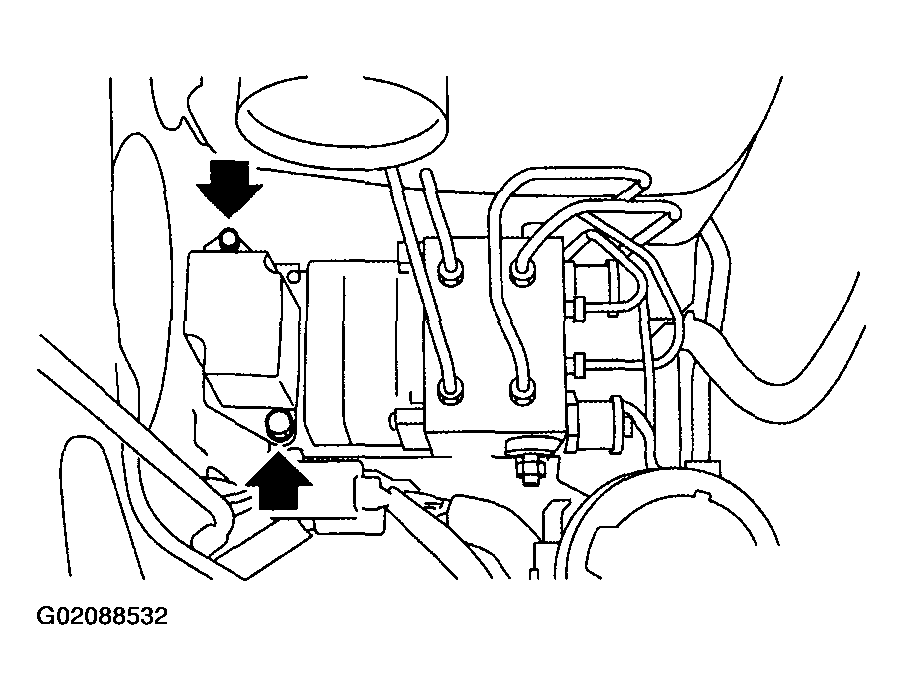

    Fig 1: Remove Relay Box & Connector Bracket
    G02088532
    CAUTION: Do not drop or bump relay box.
