Select Lever Shift Lock Cannot Be Released

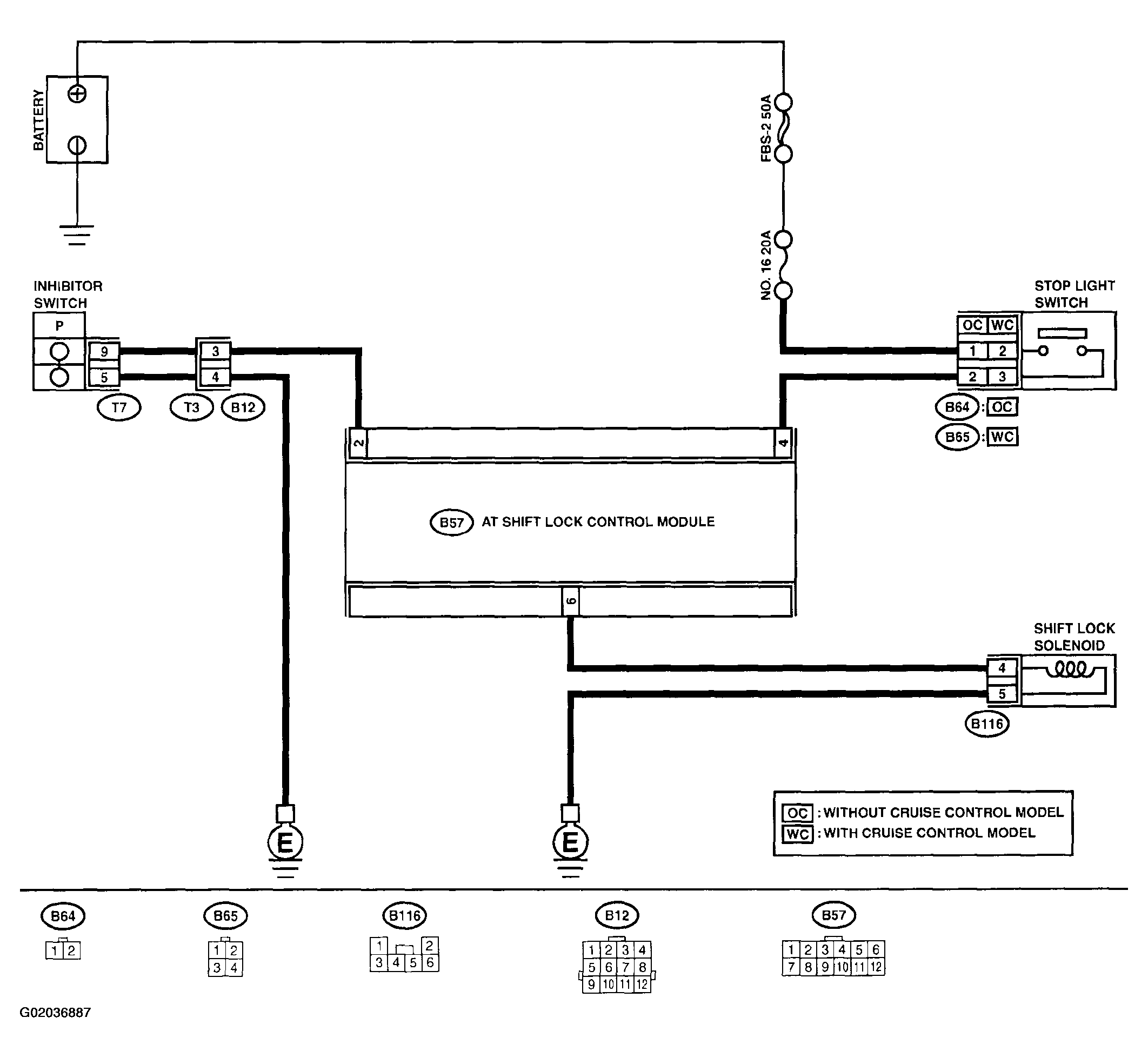

Fig 1: Wiring Diagram

G02036887

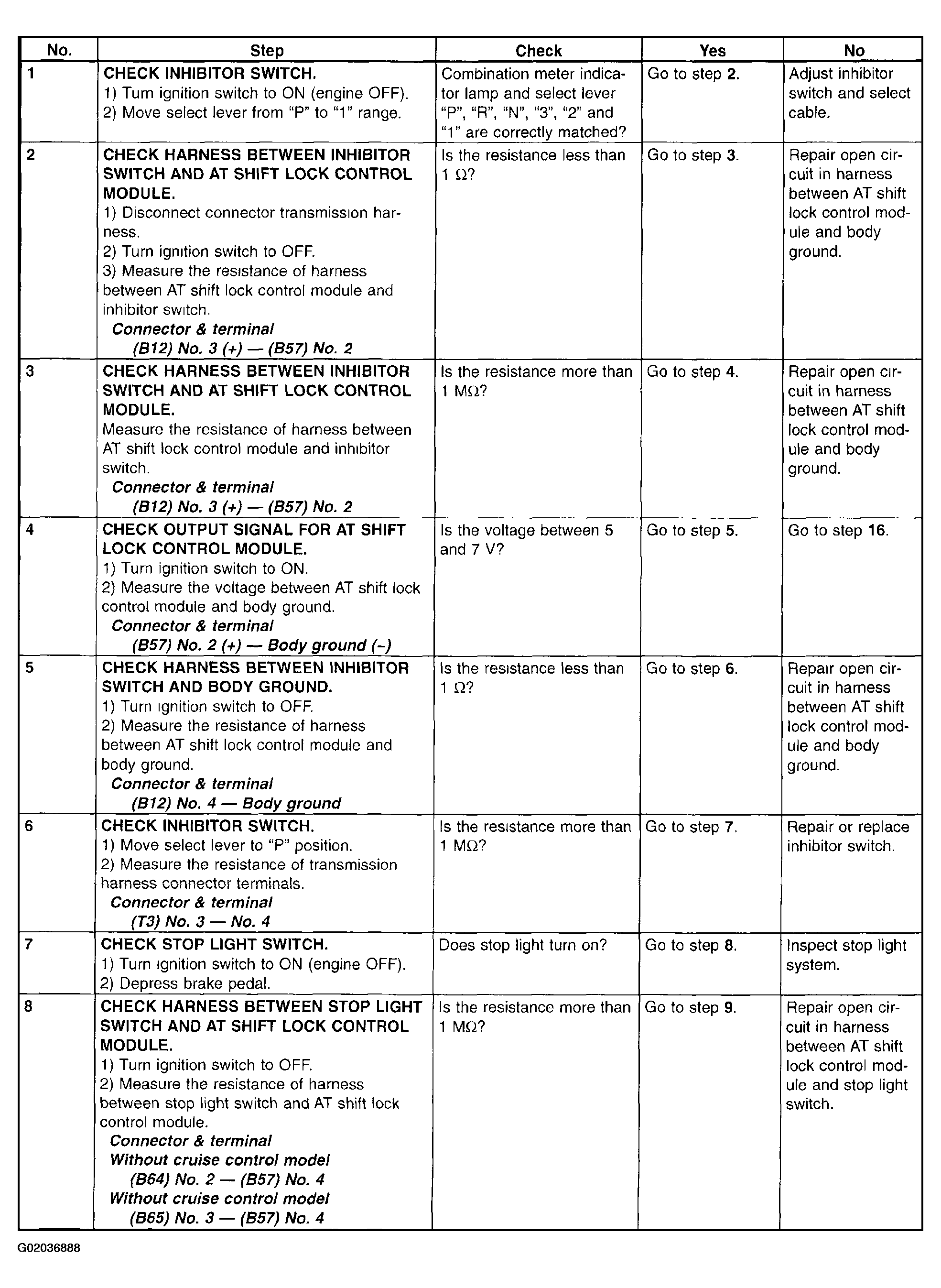

Fig 2: AT Shift Lock Wiring & Switches Diagnostic Chart

G02036888

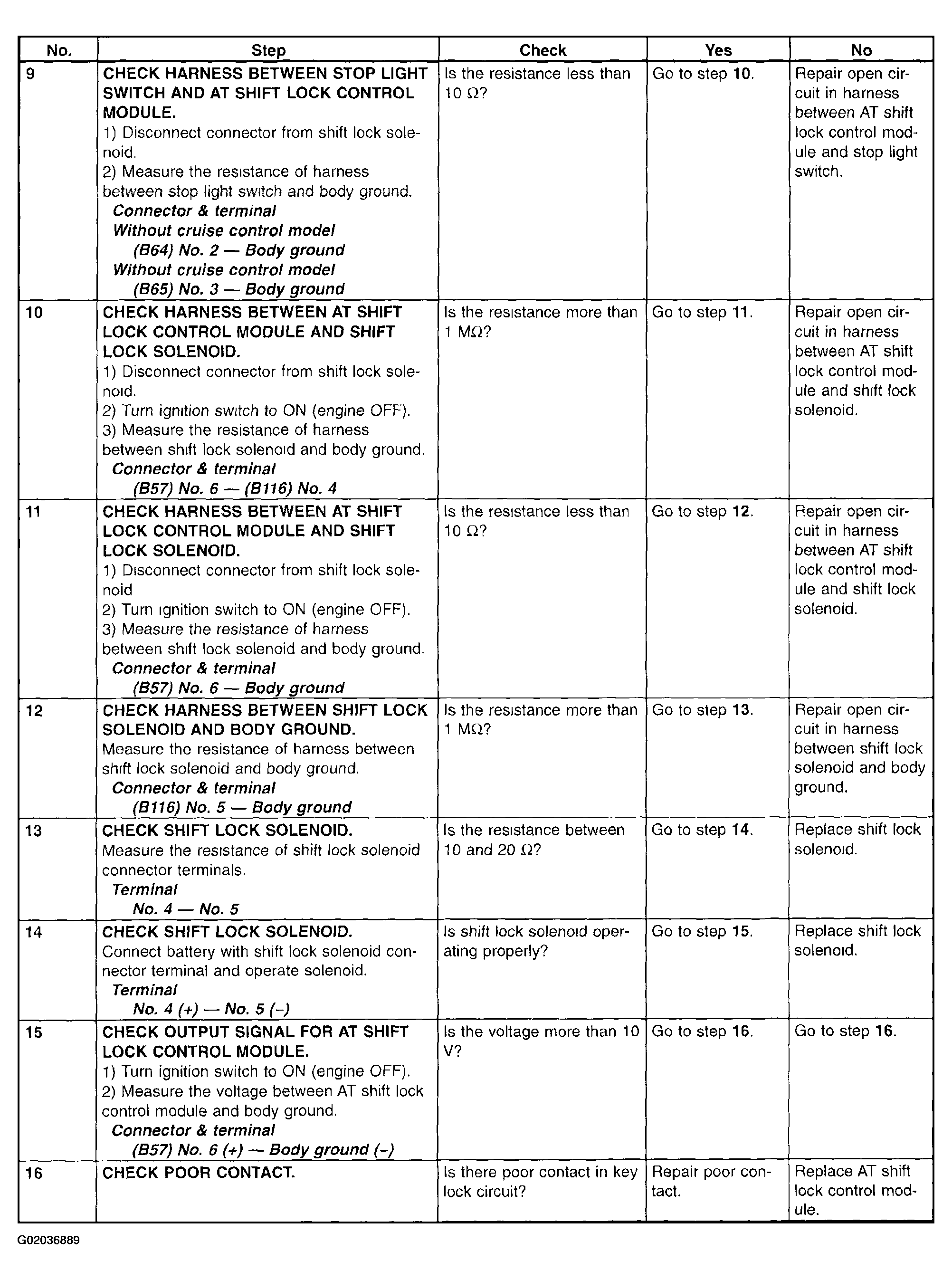

Fig 3: AT Shift Lock System Diagnostic Chart

G02036889
