Conditions For Abs Sequence Control

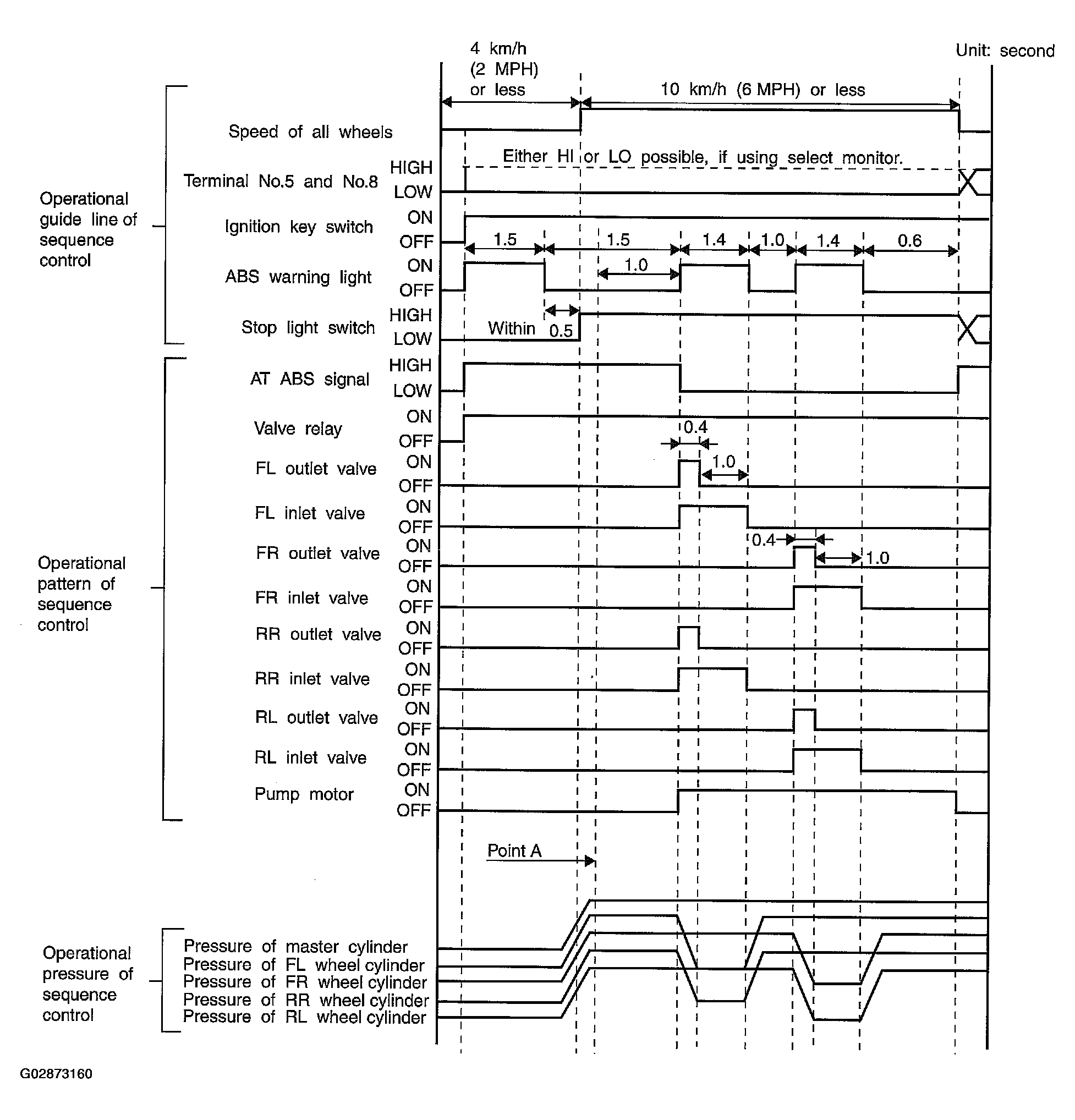

Fig 1: Conditions For ABS Sequence Control Pattern
G02873160Courtesy of SUBARU OF AMERICA, INC.
NOTE:
  • When select monitor is used, control operation starts at point A. The patterns from IGN key ON to the point A show that operation is started by diagnosis connector.
  • HIGH means high voltage.
  • LOW means low voltage.
