Rear ABS Sensor: Removal

Disconnect battery ground cable.
Lift-up the vehicle.
Remove fuel tank covers.

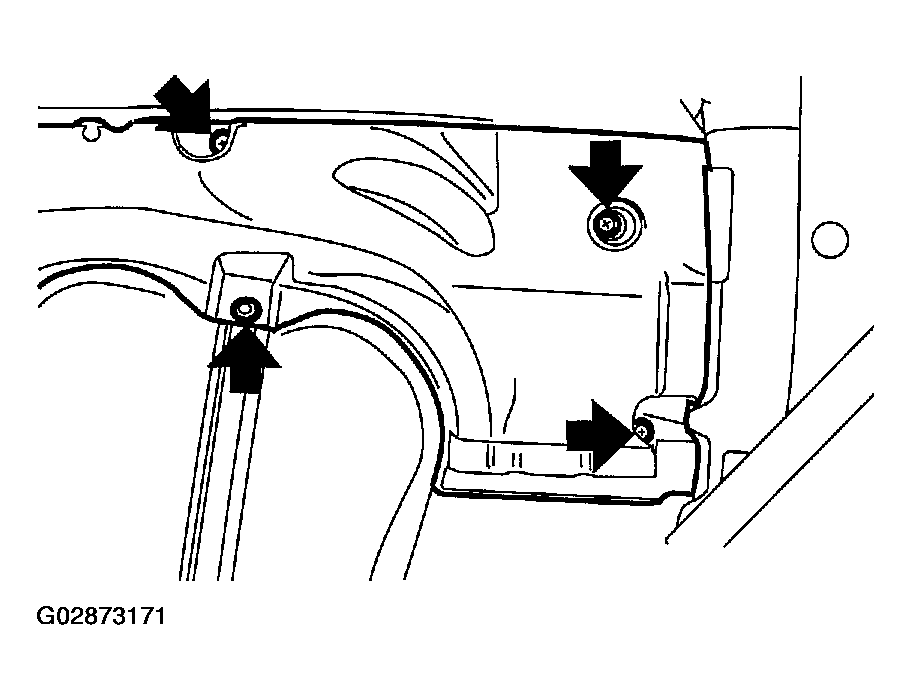

Fig 1: Removing Fuel Tank Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect rear ABS sensor connector.

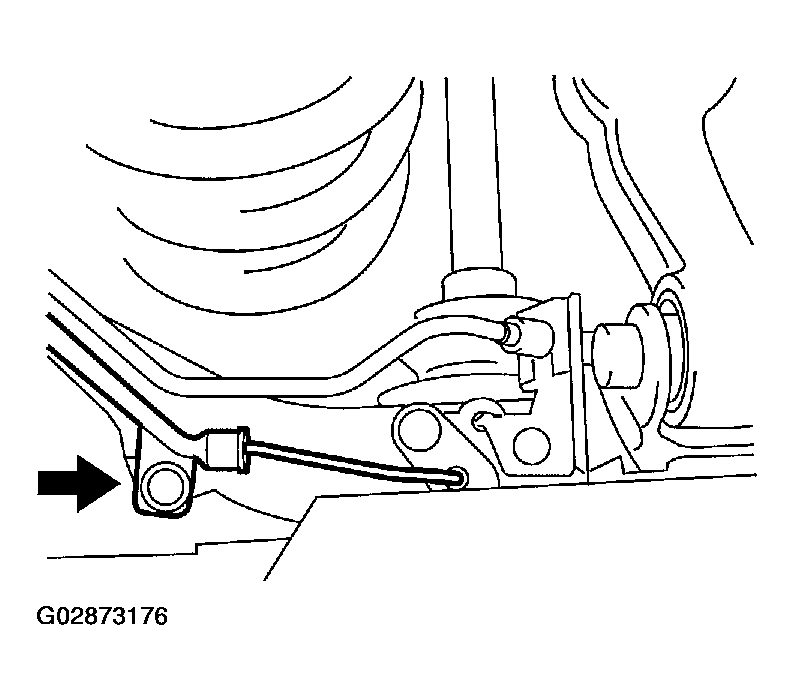

Fig 2: Disconnecting Rear ABS Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove rear sensor harness from clip on body side.

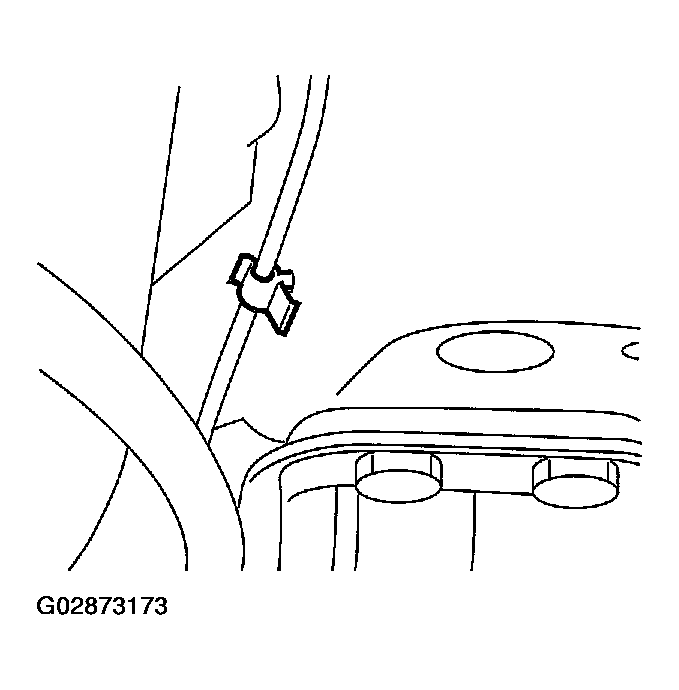

Fig 3: Removing Rear Sensor Harness From Clip On Body Side
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which hold rear sensor harness brackets.

Fig 4: Removing Rear Sensor Harness Brackets Bolt (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

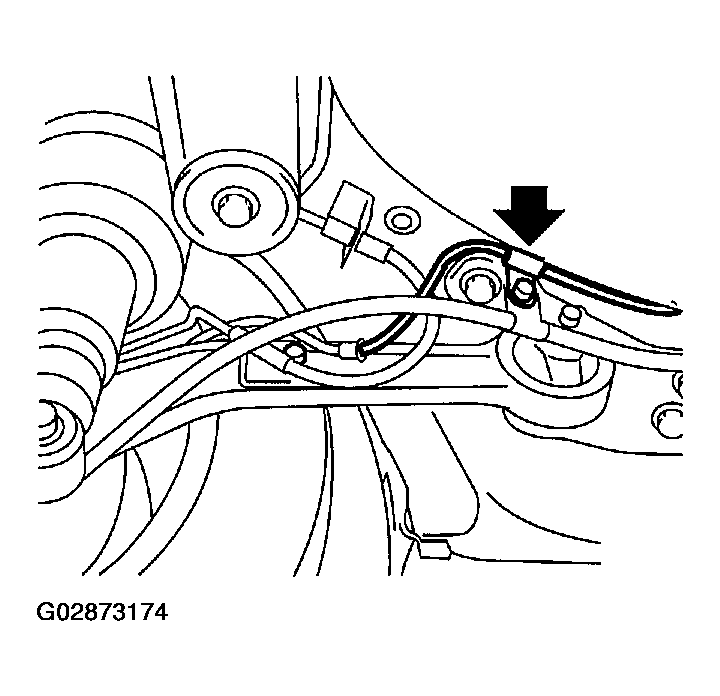

Fig 5: Removing Rear Sensor Harness Brackets Bolt (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

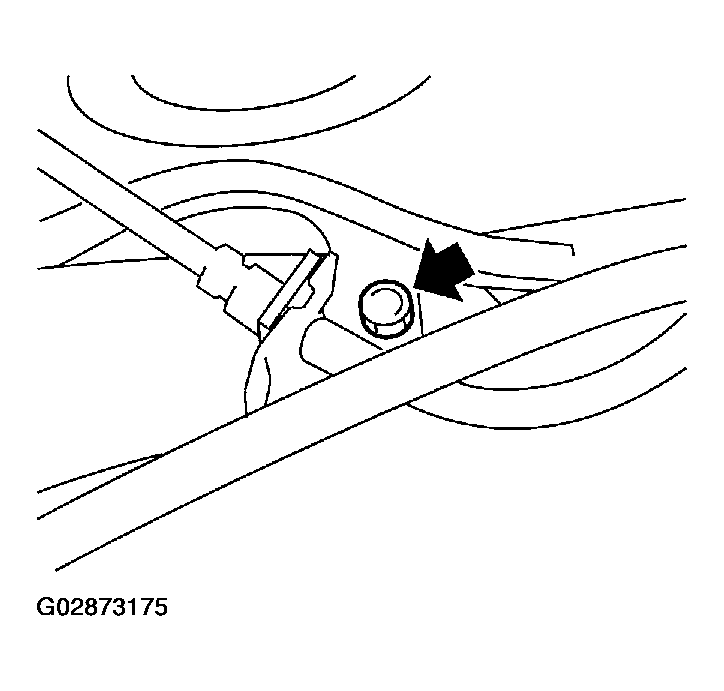

Fig 6: Removing Rear Sensor Harness Brackets Bolt (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Remove rear ABS sensor from rear arm.

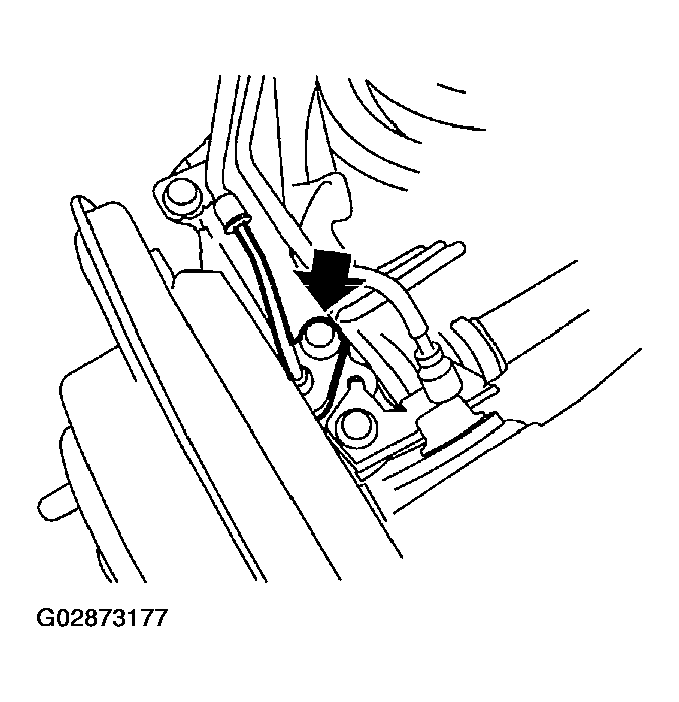

Fig 7: Removing Rear ABS Sensor From Rear Arm
Courtesy of SUBARU OF AMERICA, INC.
When inspecting rear tone wheel, remove rear drive shaft as rear tone wheel is unitized with BJ assembly of rear drive shaft.
< Ref. to REAR AXLE SHAFTS - Baja, REAR AXLE SHAFTS - Legacy, orREAR AXLE SHAFTS - Outback.>
CAUTION:
- Be careful not to damage pole piece located at tip of the sensor and teeth faces during removal.
- Do not pull sensor harness during removal.
