Component Locations
Component Locations

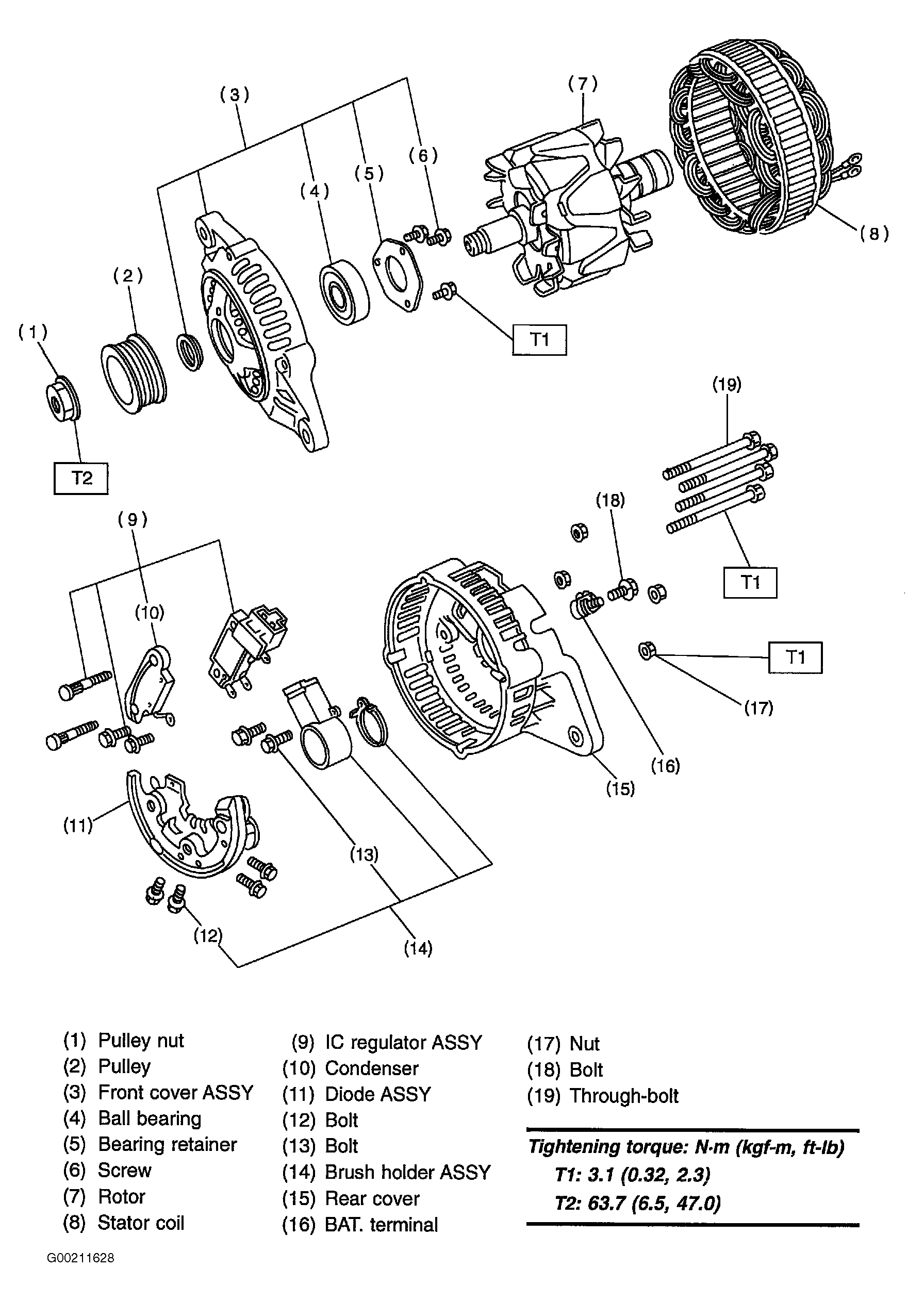

Fig 1: Exploded View Of Hitachi Generator (Legacy & Outback 2002 - 2.5L)
Courtesy of SUBARU OF AMERICA, INC.

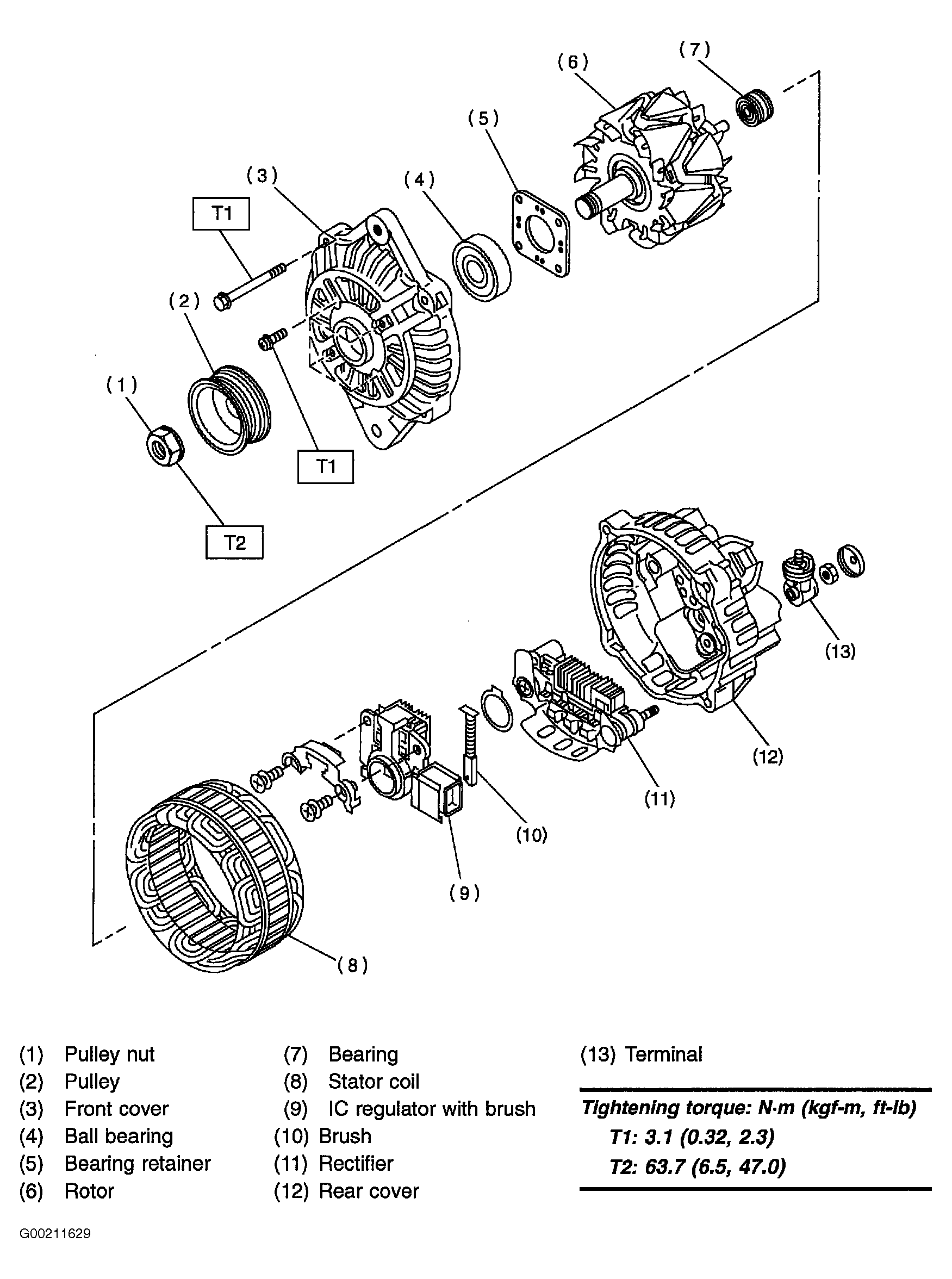

Fig 2: Exploded View Of Mitsubishi Generator (Outback 2002 - 3.0L Is Shown; All Other 2002-03 Models Are Similar)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
