Ic Regulator

NOTE: This section only applies to Legacy & Outback 2002 (2.5L) models. No information for other models is provided by manufacturer.
  1. Use circuit diagram in Fig 1 to test component.
  2. Check IC regulator's operation by using chart in Fig 2.

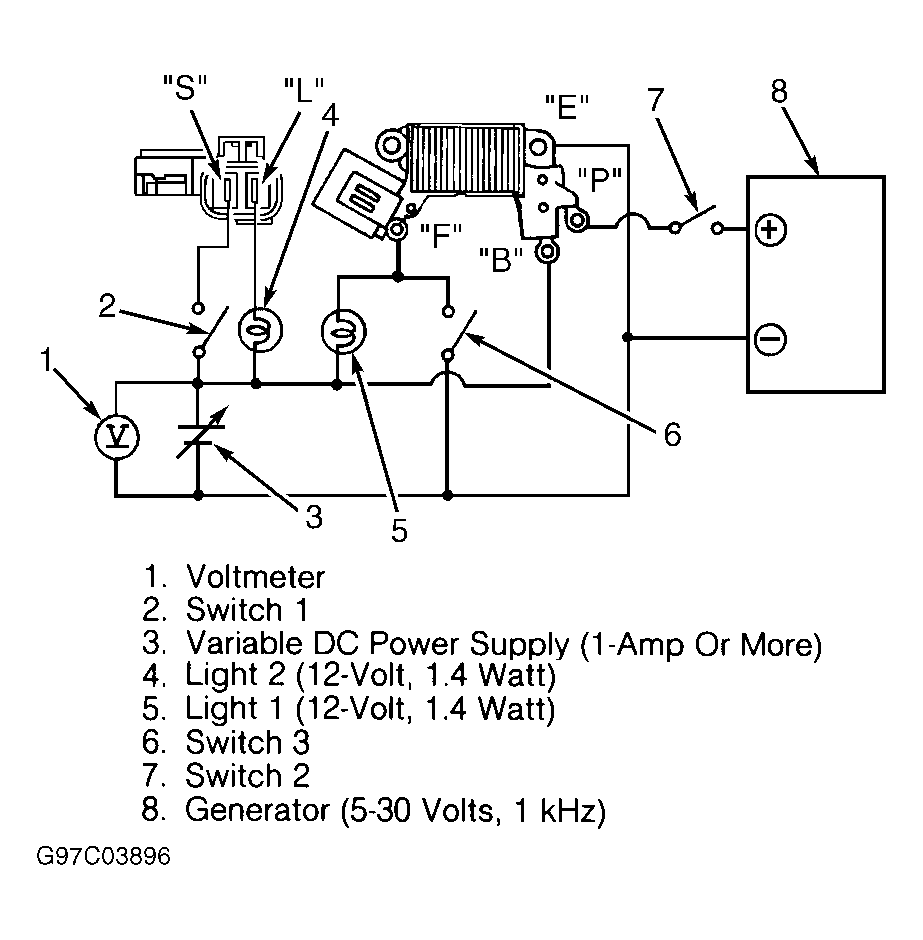

Fig 1: IC Voltage Regulator Test (Legacy & Outback 2.5L (2002 )
G97C03896Courtesy of SUBARU OF AMERICA, INC.

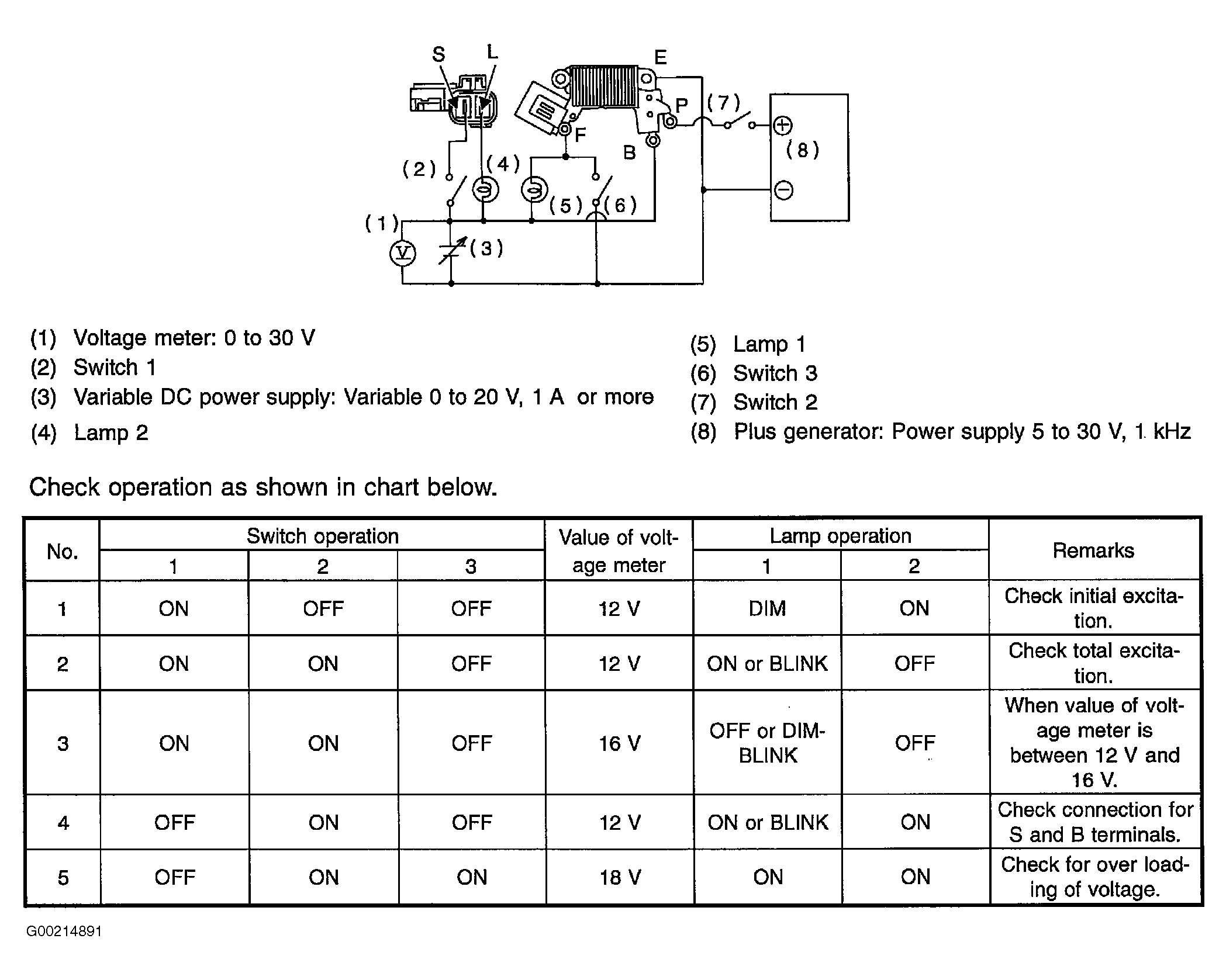

Fig 2: IC Regulator Operation Test (Legacy & Outback 2.5L (2002 )
G00214891Courtesy of SUBARU OF AMERICA, INC.
