Keyless Entry Control Module: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box. Refer to REMOVAL , Glove Box.
  3. Remove the nut, and then remove the keyless entry control module while disconnecting connector.

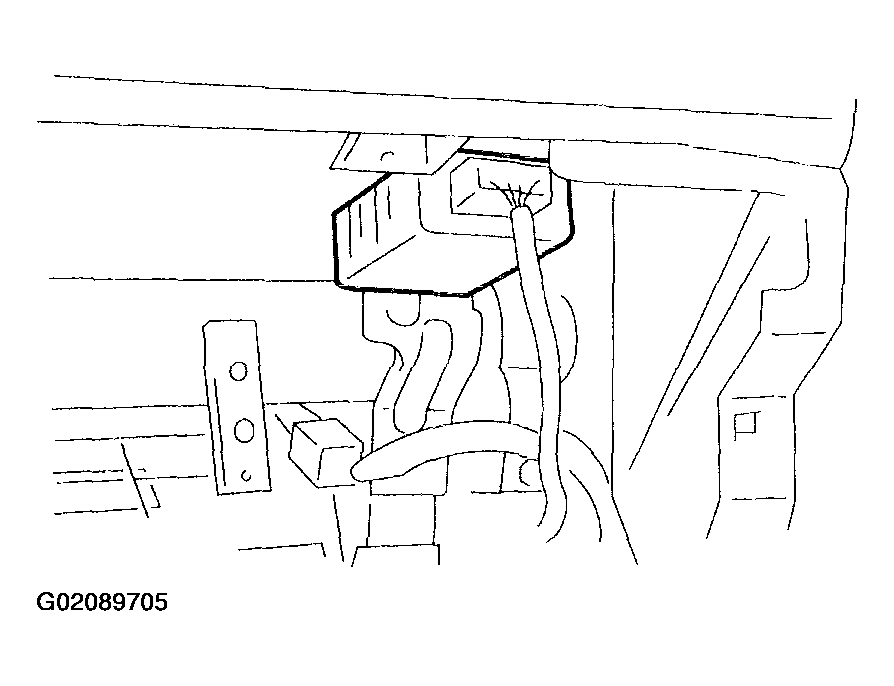

    Fig 1: Removing Keyless Entry Control Module
    G02089705Courtesy of SUBARU OF AMERICA, INC.
