Security & Locks
>>
Keyless Entry System
>>
Electrical Specification
>>
Integrated Module
Integrated Module

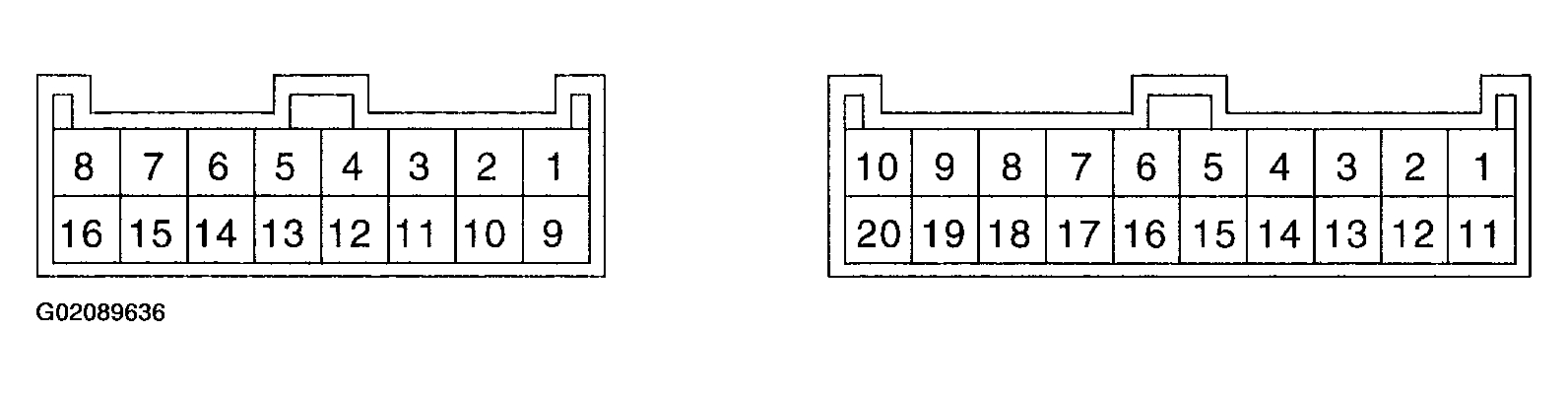

Fig 1: Identifying Connector Terminals Of Integrated Module
Courtesy of SUBARU OF AMERICA, INC.

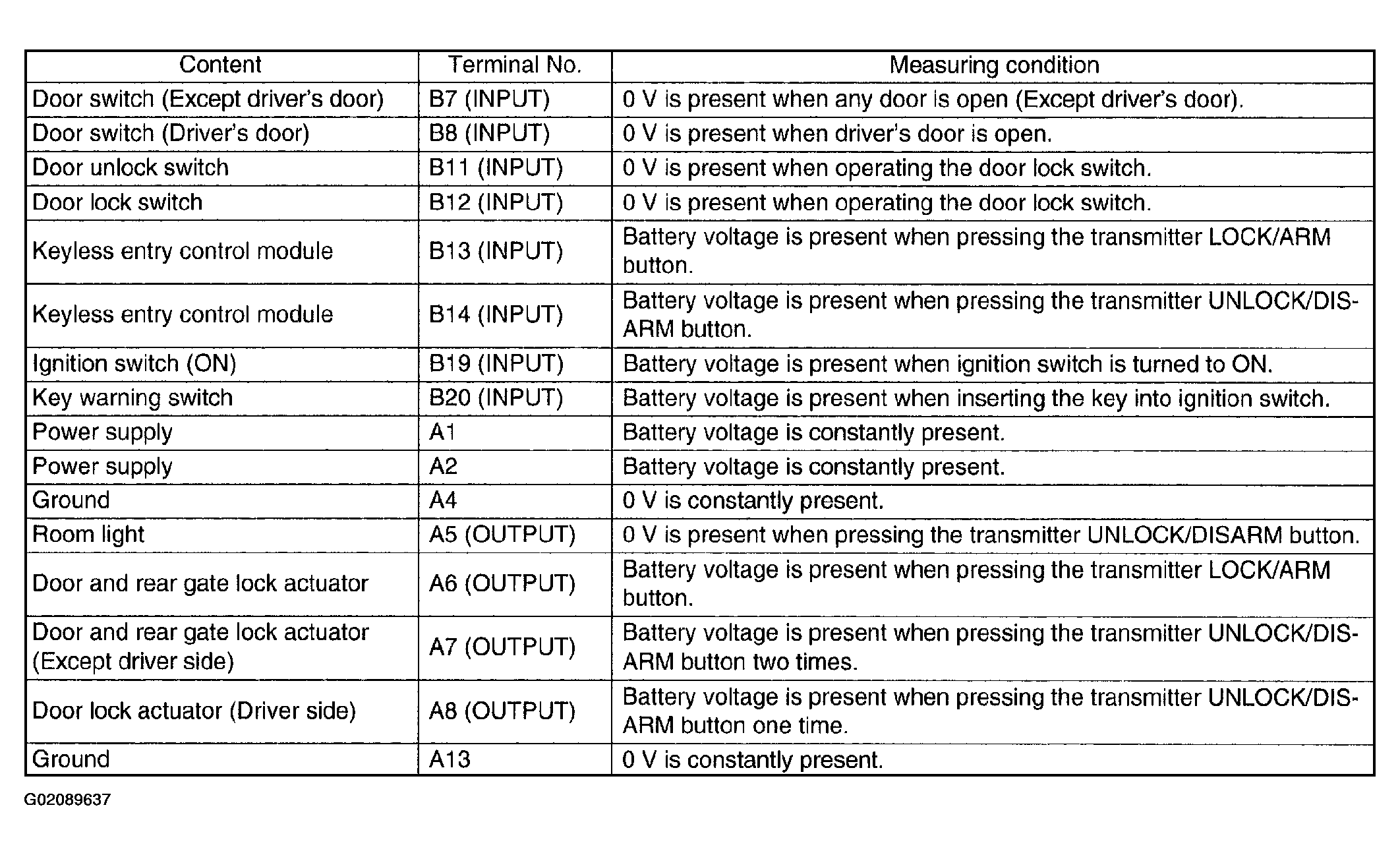

Fig 2: Integrated Module Specifications Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
