Fuel Sub Level Sensor: Installation

Install in the reverse order of removal.

Tightening torque:

  1. 4.4 N.m (0.45 kgf-m, 3.3 ft-lb)

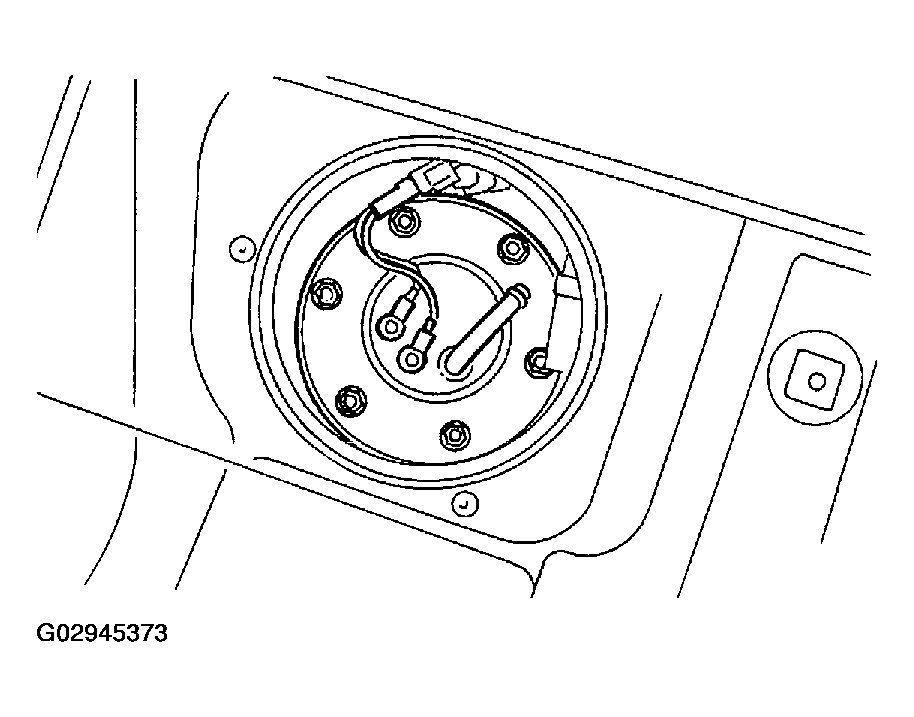

Fig 1: Installing Sub Meter Unit
G02945373Courtesy of SUBARU OF AMERICA, INC.
