Throttle Position Sensor: Installation

Install in the reverse order of removal.

Tightening torque:

  1. 1.6 N.m (0.16 kgf-m, 1.2 ft-lb)
CAUTION: When installing throttle position sensor, adjust to the specified data.

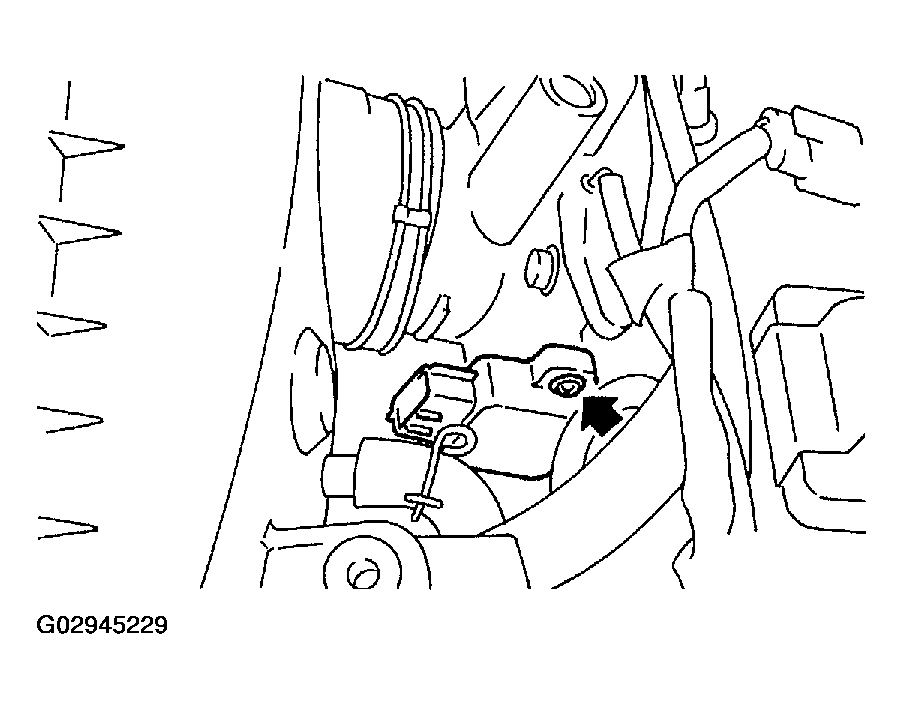

Fig 1: Locating Screw For Adjusting
G02945229Courtesy of SUBARU OF AMERICA, INC.
