Keyless Entry Control Module: Removal

  1. Disconnect ground cable from battery.
  2. Remove glove box. < Ref. to REMOVAL . >
  3. Remove nut, then remove keyless entry control module (B) and the other electrical control module (A) while disconnecting connector.

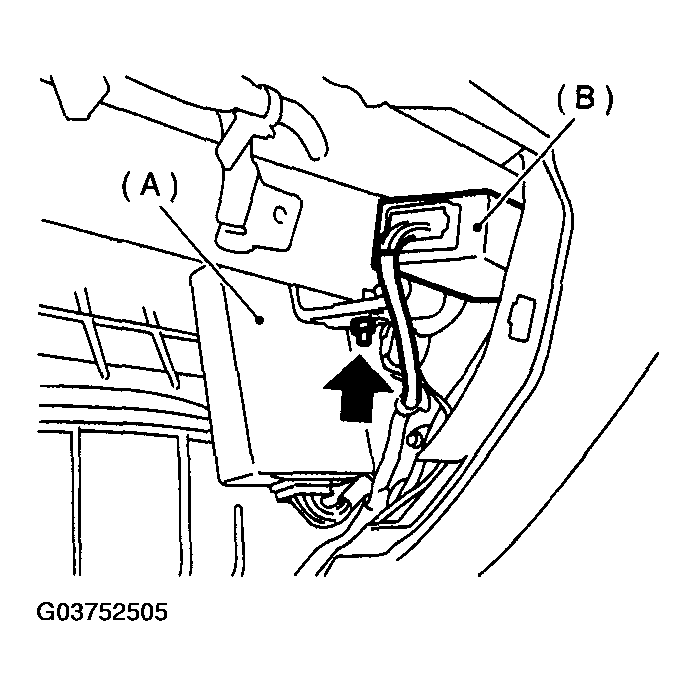

    Fig 1: Removing Keyless Entry Control Module And Electrical Control Module
    G03752505Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect keyless entry control module and the other control module.
