Security Control Module: Removal

  1. Disconnect the ground cable from battery.
  2. Remove front cover (A).
  3. Remove screws (B) and then detach center panel (C) while disconnecting connector.

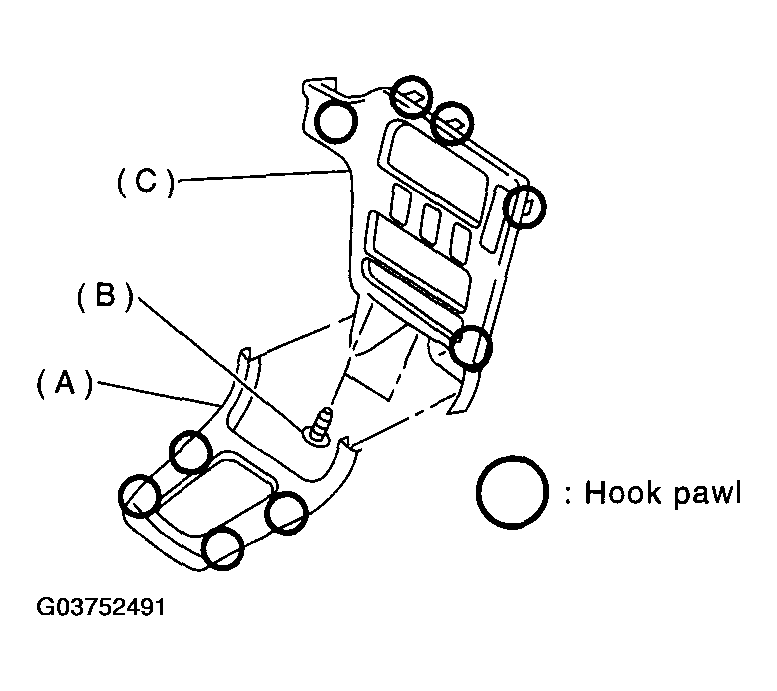

    Fig 1: Detaching Center Panel
    G03752491Courtesy of SUBARU OF AMERICA, INC.
  4. Remove two screws.
    NOTE: Before removing the screw, apply a few turns of butyl tape to the tip of the service tool. This prevents the screw from falling during removal.

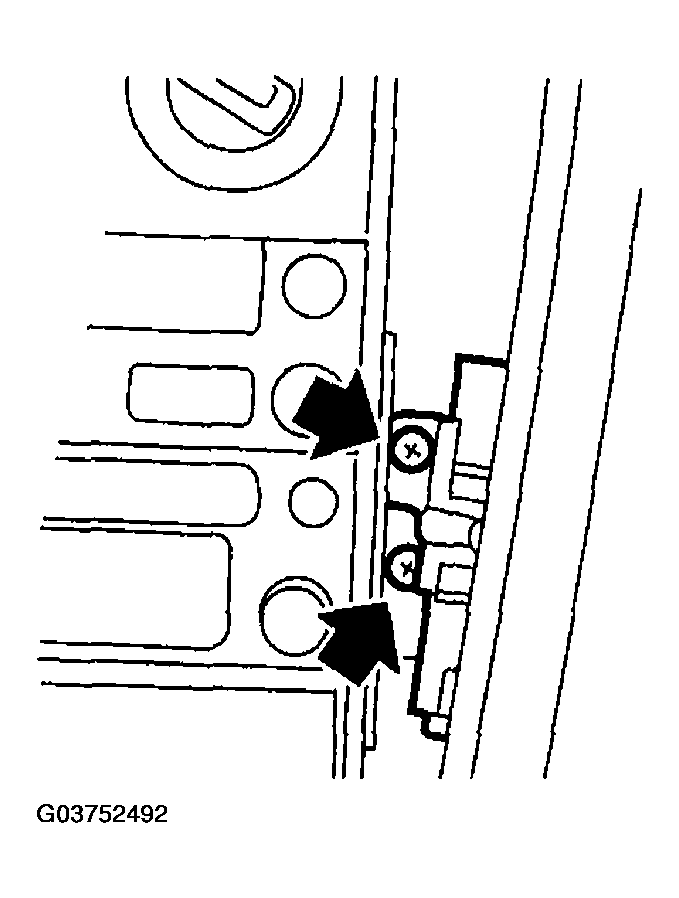

    Fig 2: Removing Screws
    G03752492Courtesy of SUBARU OF AMERICA, INC.
  5. Remove radio and security control module together while disconnecting connector. < Ref. to REMOVAL . >
