Accelerator Control Cable: Installation

  1. Install in the reverse order of removal.
  2. Apply grease to the point (accelerator cable end on engine side) shown in the figure below.

    Part No. 004404002 (Slico lube G-30M)

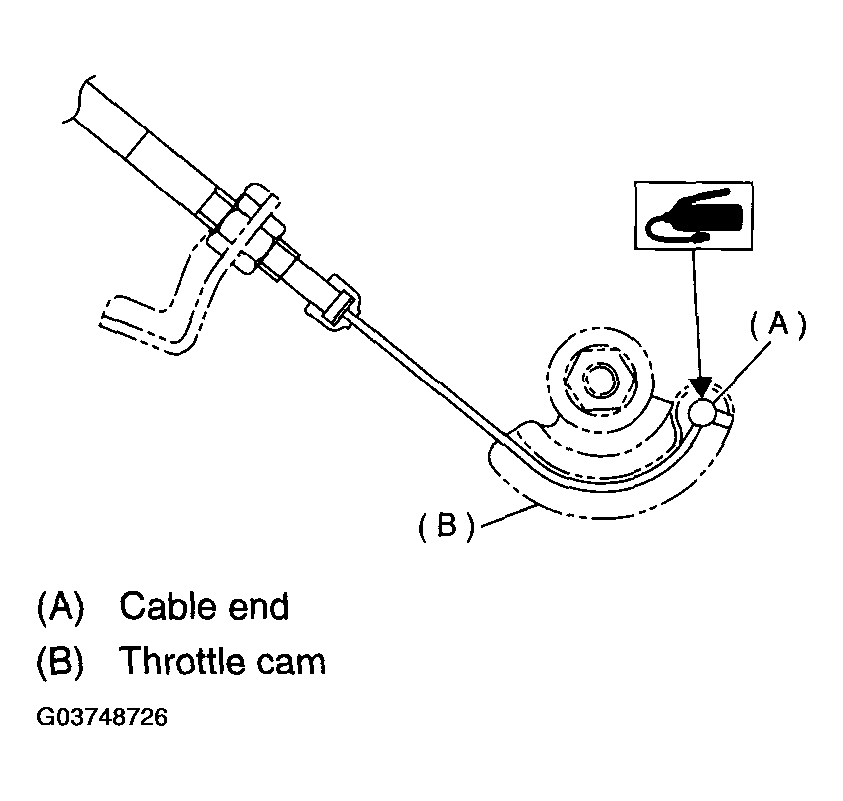

    Fig 1: Applying Grease To Cable
    G03748726Courtesy of SUBARU OF AMERICA, INC.
    CAUTION:
    • If cable clamp is damaged, replace it with a new one.
    • Never fail to cover outer cable end with boot.
    • Be careful not to kink accelerator cable.
    • Do not apply grease except for special area.
  3. Adjustment after pedal installation < Ref. to , INSTALLATION , Accelerator Pedal. >
