Home >> Subaru >> 2005 >> Baja Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection (Fuel Systems) >> Engine Coolant Temperature Sensor >> Removal

Engine Coolant Temperature Sensor: Removal

  1. Disconnect ground cable from battery.

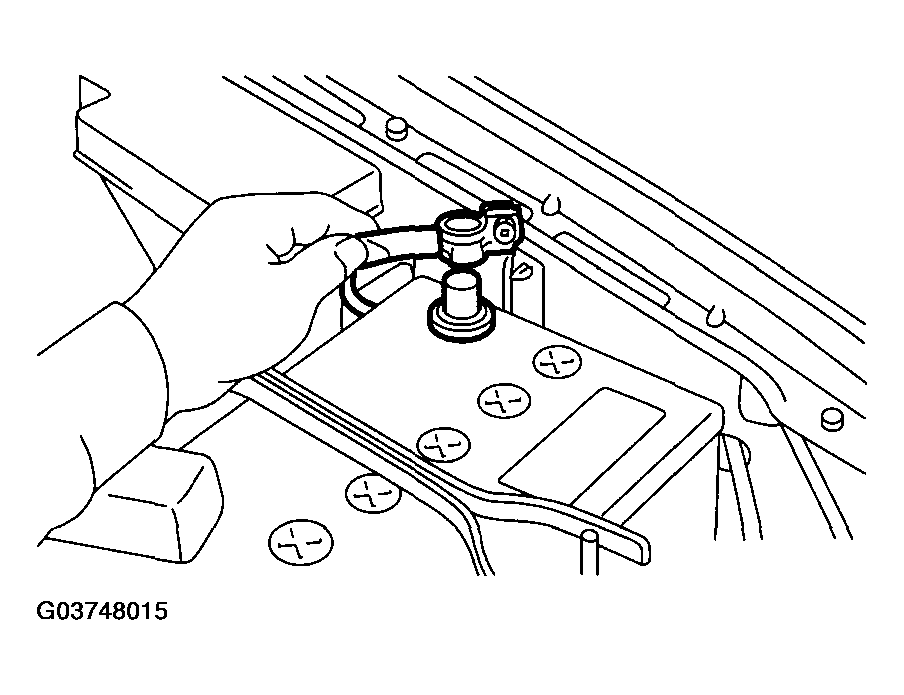

    Fig 1: Disconnecting Ground Cable From Battery
    G03748015Courtesy of SUBARU OF AMERICA, INC.
  2. Remove air intake duct and air cleaner case.

    < Ref. to REMOVAL , Air Intake Duct. > and < Ref. to REMOVAL , Air Cleaner Case. >

  3. Disconnect connector from engine coolant temperature sensor.

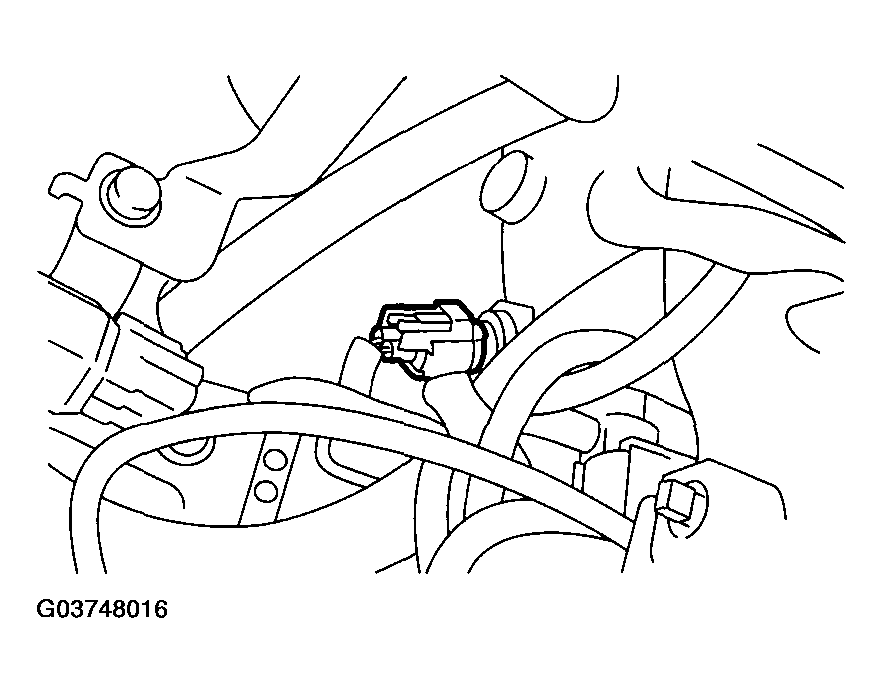

    Fig 2: Disconnecting Connector From Engine Coolant Temperature Sensor
    G03748016Courtesy of SUBARU OF AMERICA, INC.
  4. Remove engine coolant temperature sensor.
