Home >> Subaru >> 2005 >> Baja Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection (Fuel Systems) >> Knock Sensor >> Removal

Knock Sensor: Removal

  1. Disconnect ground cable from battery.

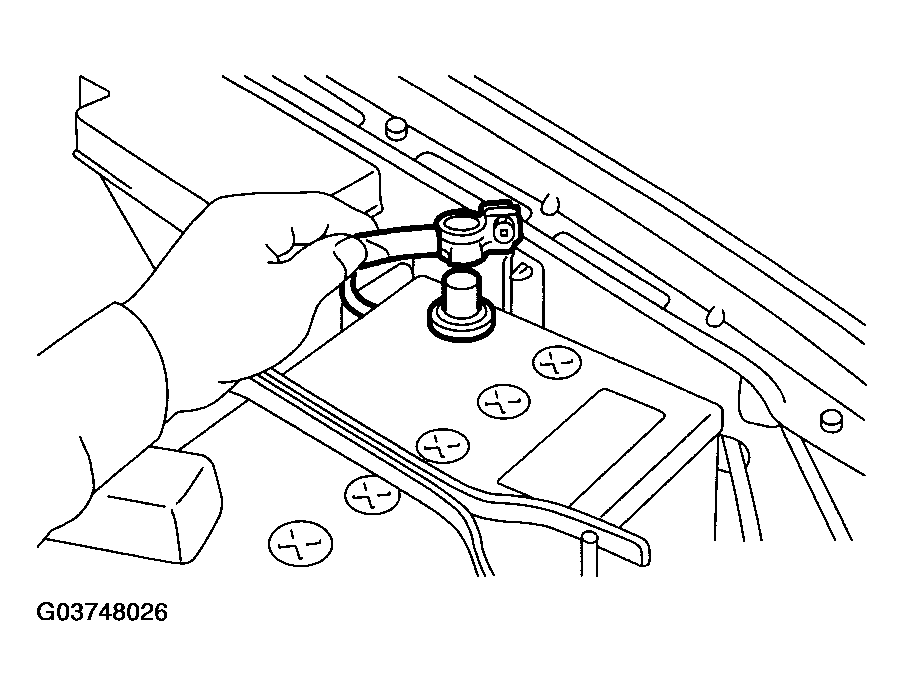

    Fig 1: Disconnecting Ground Cable From Battery
    G03748026Courtesy of SUBARU OF AMERICA, INC.
  2. Remove air cleaner case.

    < Ref. to REMOVAL , Air Cleaner Case. >

  3. Disconnect knock sensor connector.

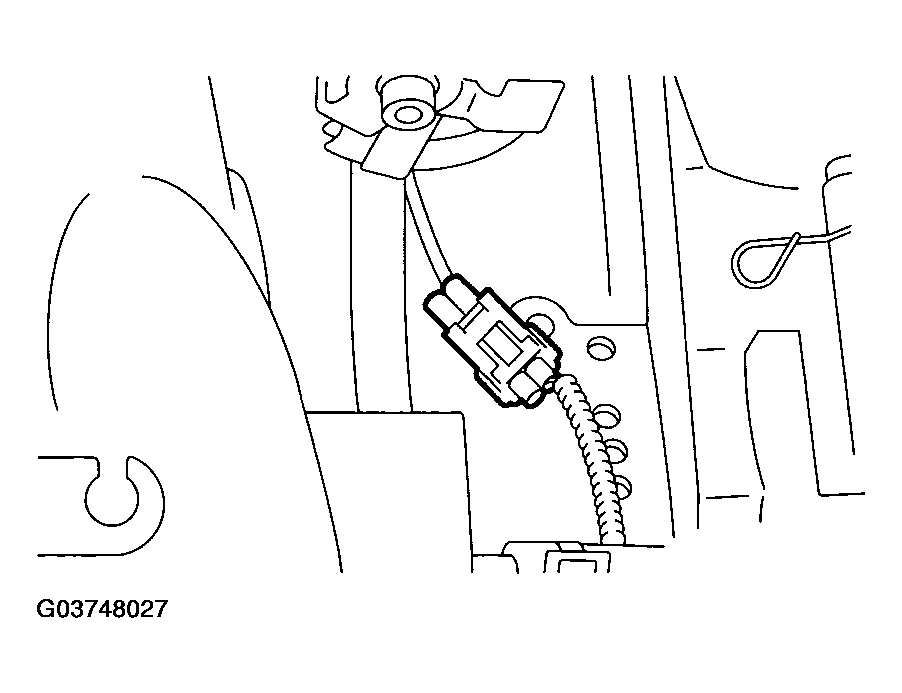

    Fig 2: Disconnecting Knock Sensor Connector
    G03748027Courtesy of SUBARU OF AMERICA, INC.
  4. Remove knock sensor from cylinder block.

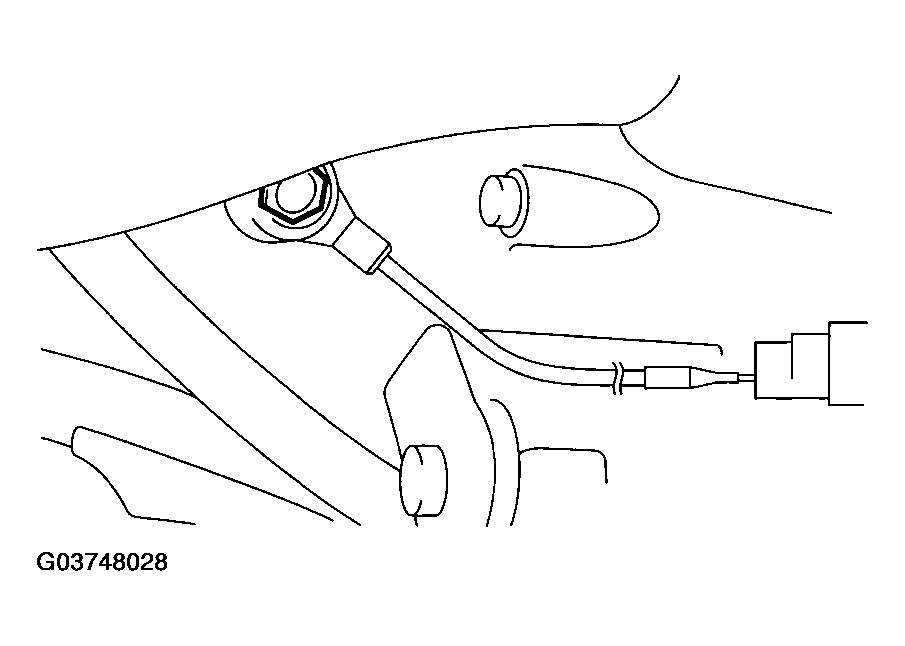

    Fig 3: Removing Knock Sensor From Cylinder Block
    G03748028Courtesy of SUBARU OF AMERICA, INC.
