Main Relay: Removal

  1. Disconnect ground cable from battery.

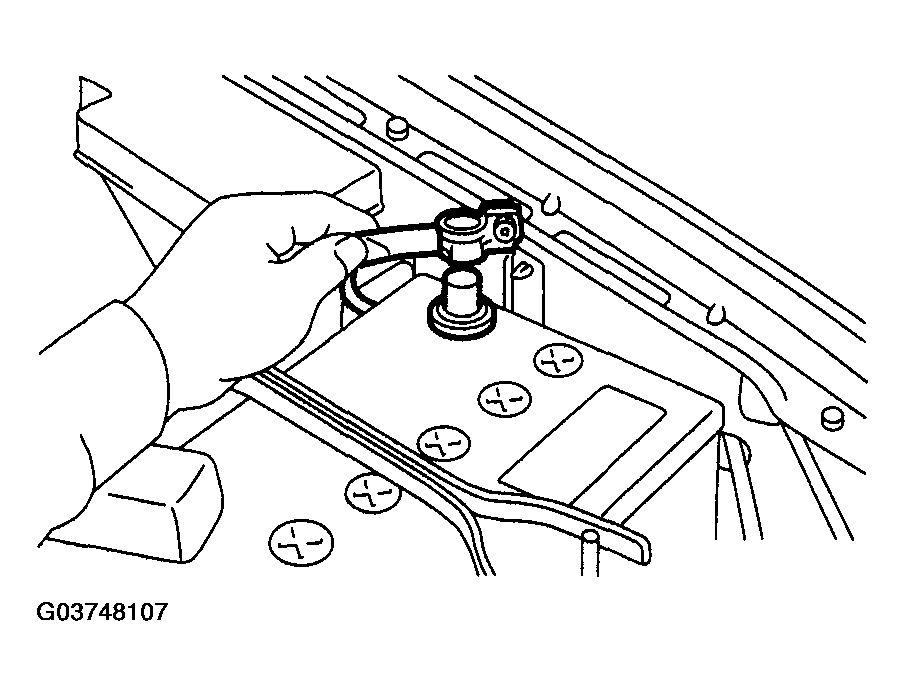

    Fig 1: Disconnecting Ground Cable From Battery
    G03748107Courtesy of SUBARU OF AMERICA, INC.
  2. Remove lower inner trim of passenger side.

    < Ref. to REMOVAL , Lower Inner Trim. >

  3. Disconnect connectors from main relay.
  4. Remove bolt which holds main relay bracket on body.

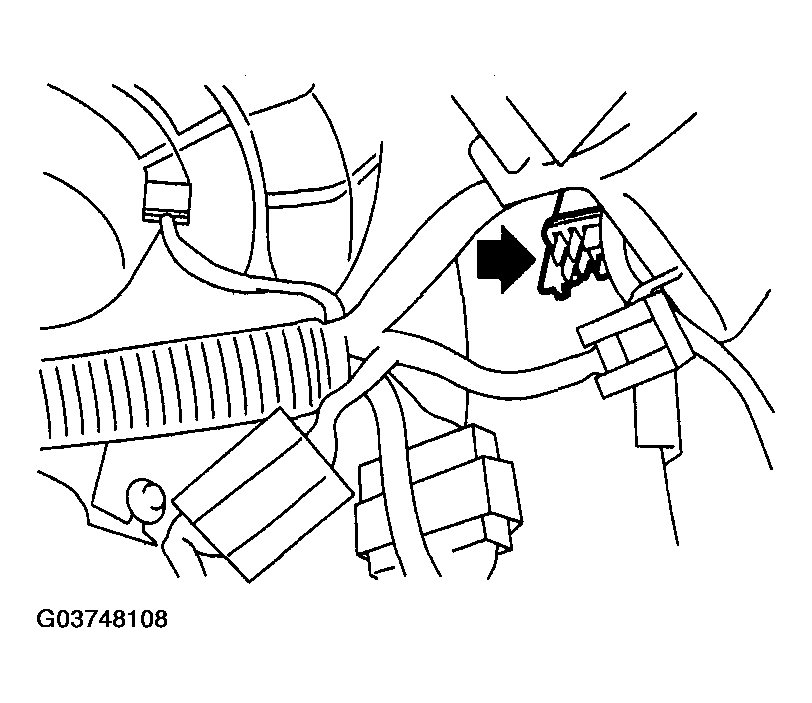

    Fig 2: Removing Bolt Holding Main Relay Bracket On Body
    G03748108Courtesy of SUBARU OF AMERICA, INC.
