Brake Line
- Check for scratches, swelling, corrosion, traces of fluid leakage on the brake hoses or pipe joints.
- Check the possibility of adjacent parts interfering with brake pipes/hoses during driving, and loose connections/clamps.
- Check any trace of fluid leakage, scratches, etc. on master cylinder, wheel cylinder and pressure control valve.
NOTE:
- When the brake fluid level in the reservoir tank is lower than specified limit, the brake warning light on the combination meter will come on.

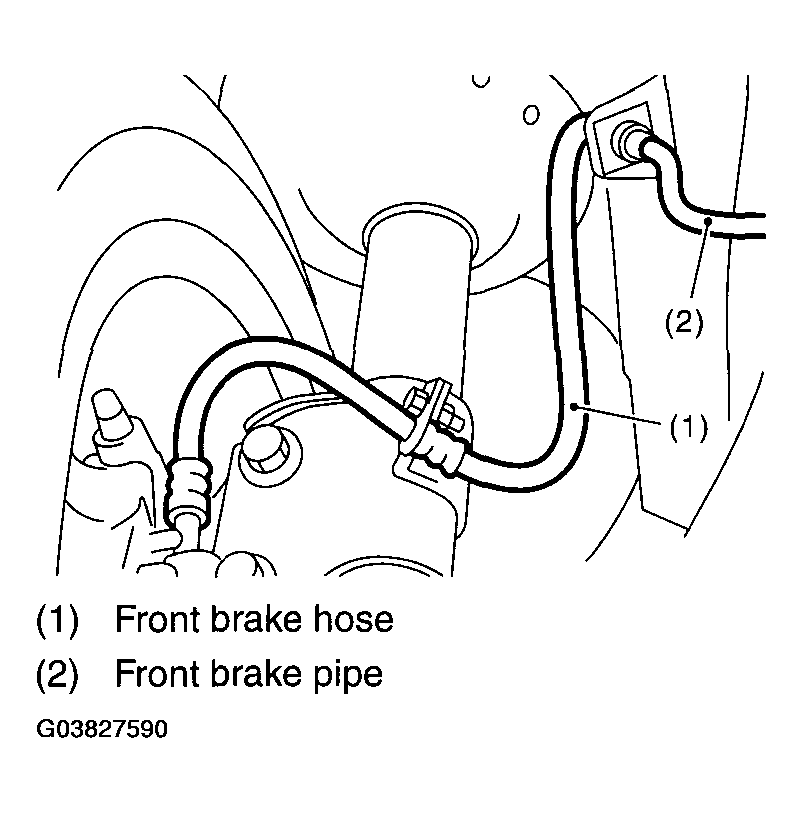

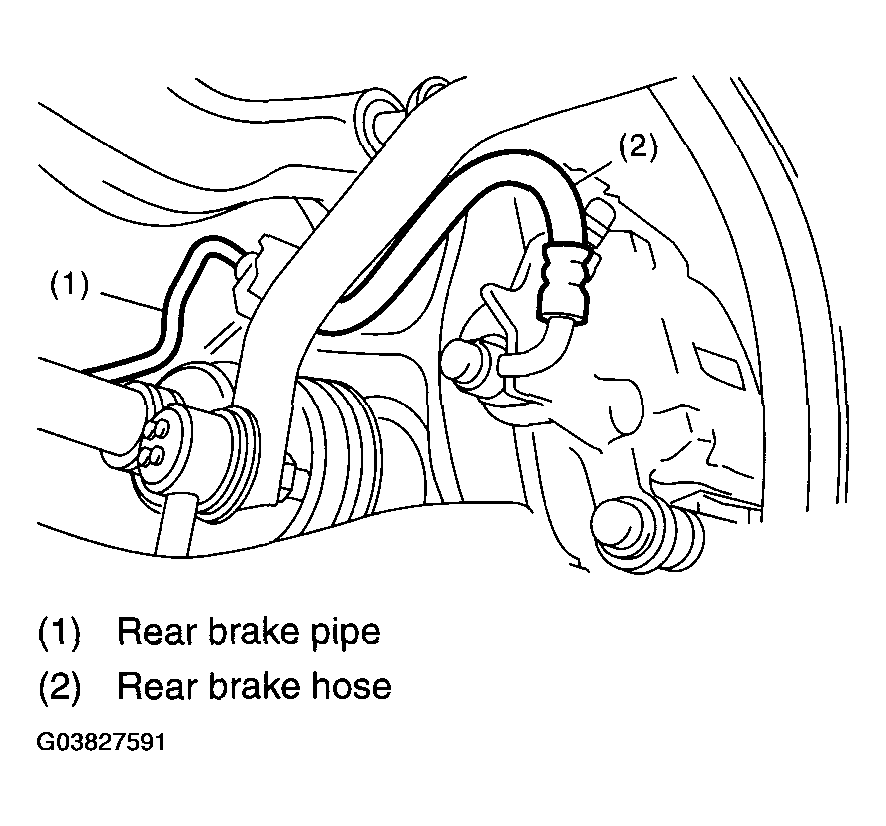

- Visually check the brake hose for damage. (Use a mirror where it is difficult to see)
