Air Cleaner Element: Replacement

Disconnect the ground cable from battery.

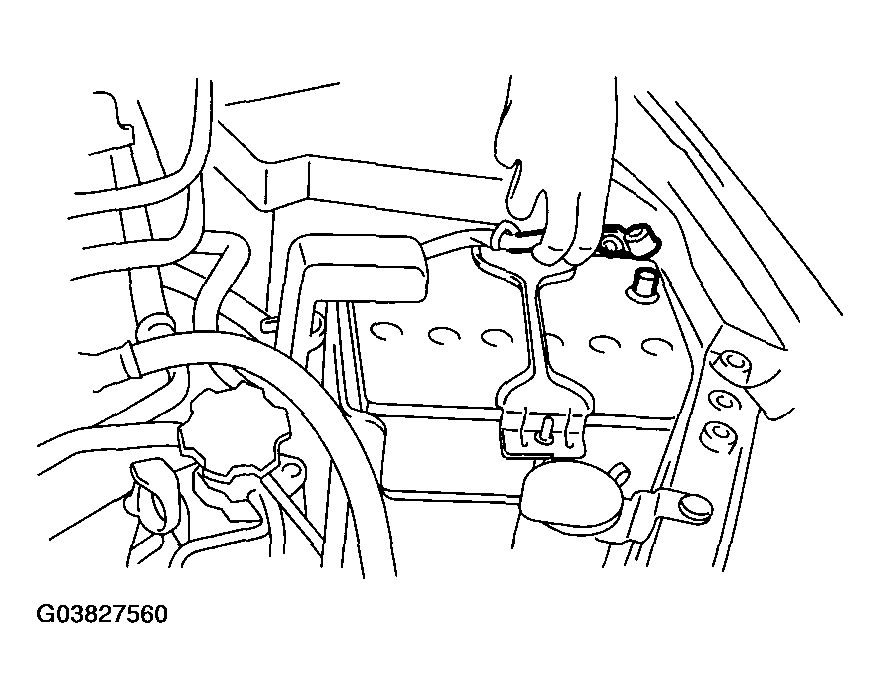

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from mass air flow sensor.
- Non-turbo model

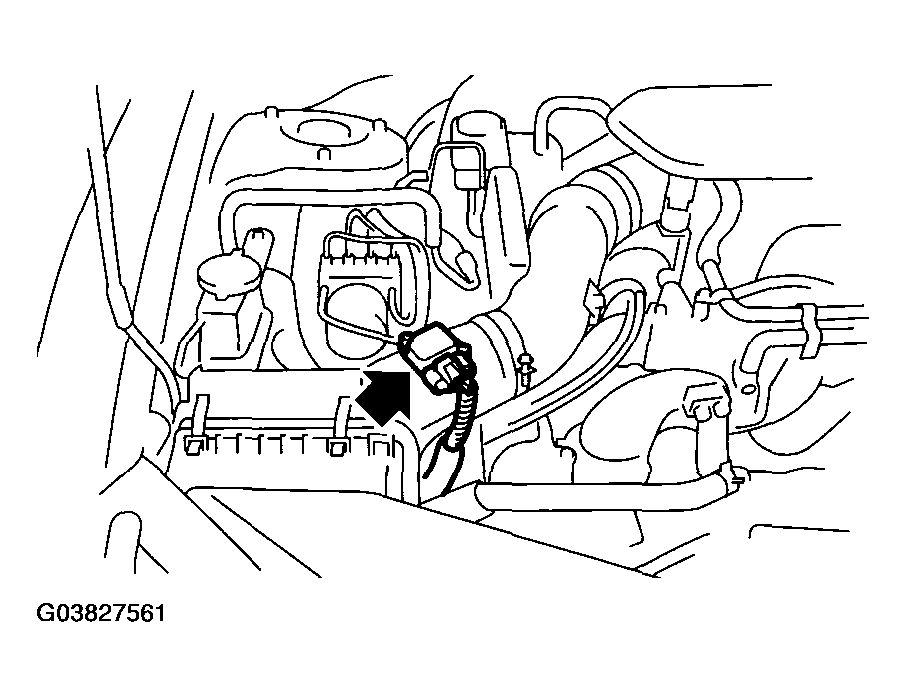

  Fig 2: Disconnecting Connector From Mass Air Flow Sensor - Non Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

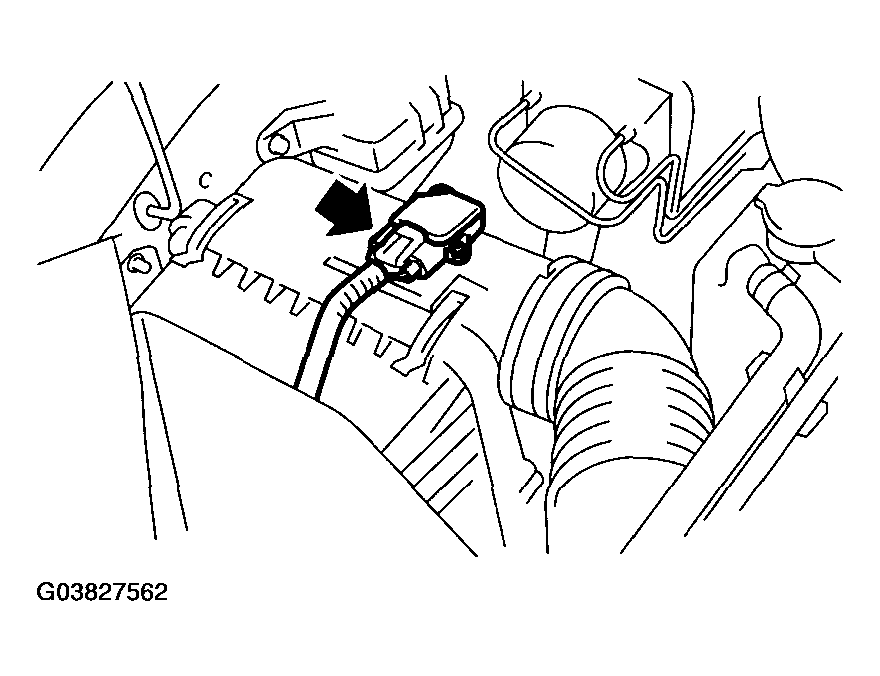

  Fig 3: Disconnecting Connector From Mass Air Flow Sensor - Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamps (A) which connect the air cleaner case to intake duct. (Turbo model)
Remove the clips (B) on air cleaner case.
- Non-turbo model

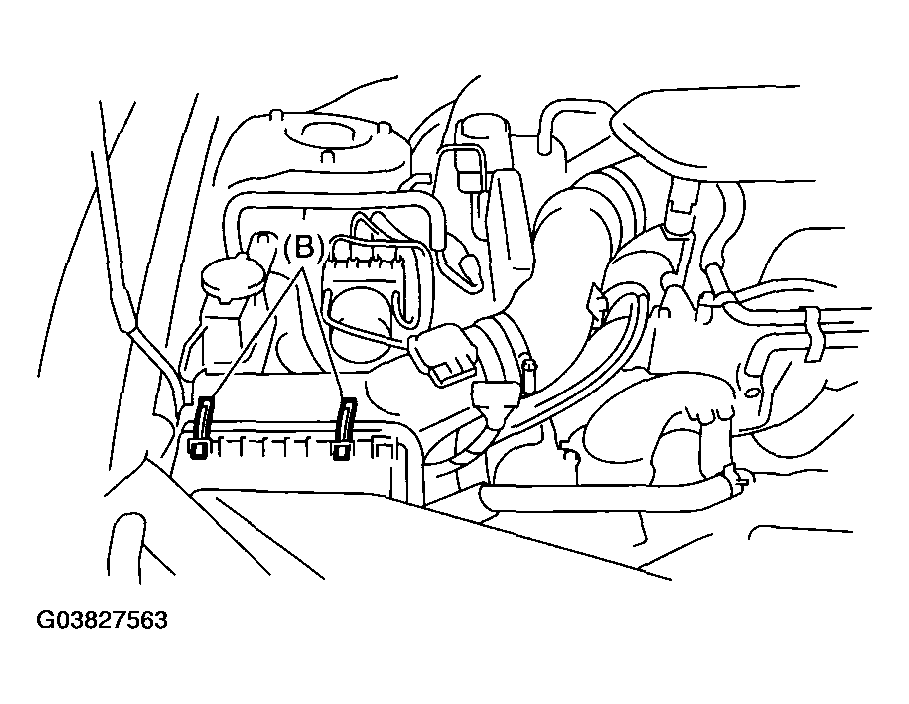

  Fig 4: Removing Clips On Air Cleaner Case - Non-Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
- Turbo model

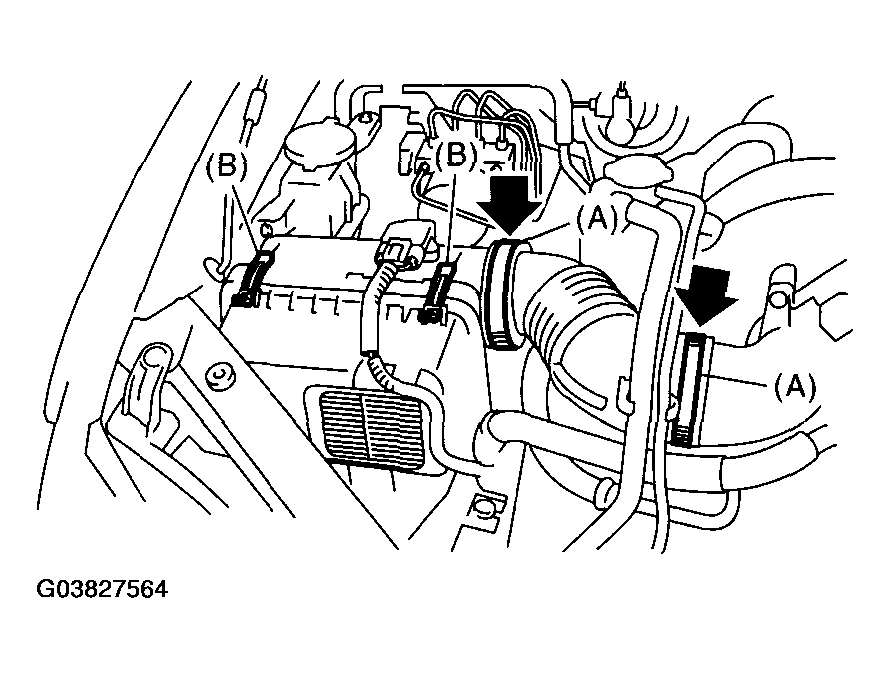

Fig 5: Removing Clips On Air Cleaner Case - Turbo Model
Courtesy of SUBARU OF AMERICA, INC.
Remove the air cleaner case (rear).
Remove the air cleaner element.

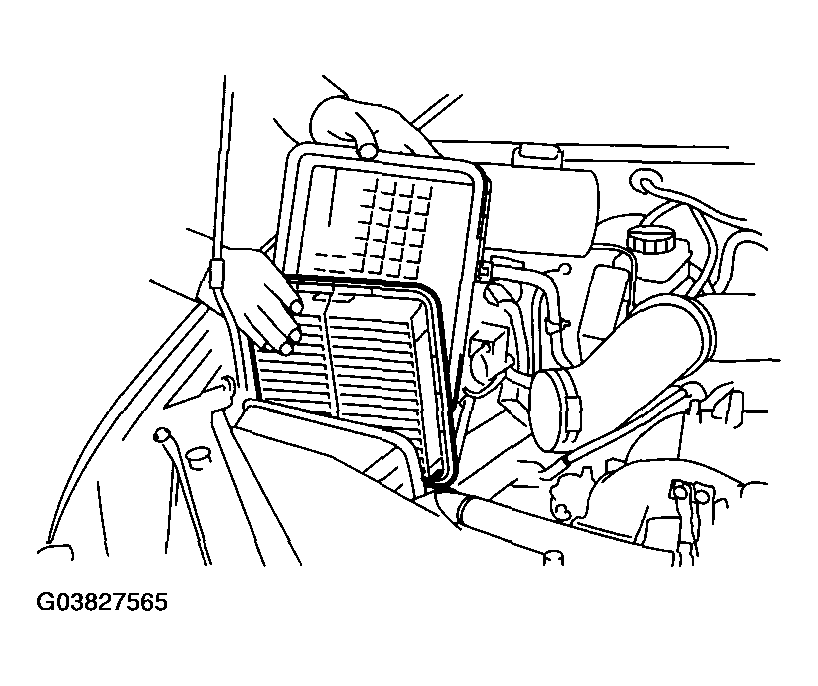

Fig 6: Removing Air Cleaner Element
Courtesy of SUBARU OF AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Fasten with a clip after inserting the lower tab of the case.

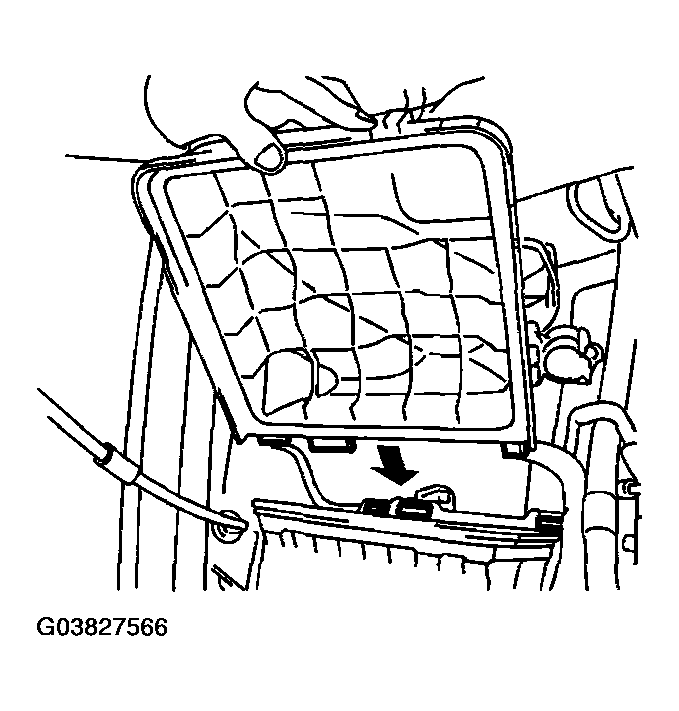

  Fig 7: Inserting Lower Tab Of Case
  Courtesy of SUBARU OF AMERICA, INC.
- Refer to "COMPONENT" for tightening torque. 2.5 L non-turbo model
  < Ref. to COMPONENT , General Description. >

  2.5 L turbo model

  < Ref. to COMPONENT , General Descriptions

  3.0 L model

  < Ref. to COMPONENT , General Descriptions
