Recommended Materials: Lubricants

Use either the lubricants in the table below or equivalent. See LUBRICANTS SPECIFICATION to choose the correct SAE viscosity.

LUBRICANTS SPECIFICATION

Lubricant	Recommended		Alternative
Lubricant	API Standard	ILSAC Standard	API Standard
Engine oil	SL Grade "Energy conserving" Fig 1 , Fig 2	GF-3	SJ
Manual transmission oil	GL-5	-	-
AT front differential gear oil	GL-5	-	-
Rear differential gear oil	GL-5	-	-

Fig 1: Identifying SL Grade Engine Oil RM-00001

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Energy Conserving Engine Oil RM-00002

Courtesy of SUBARU OF AMERICA, INC.

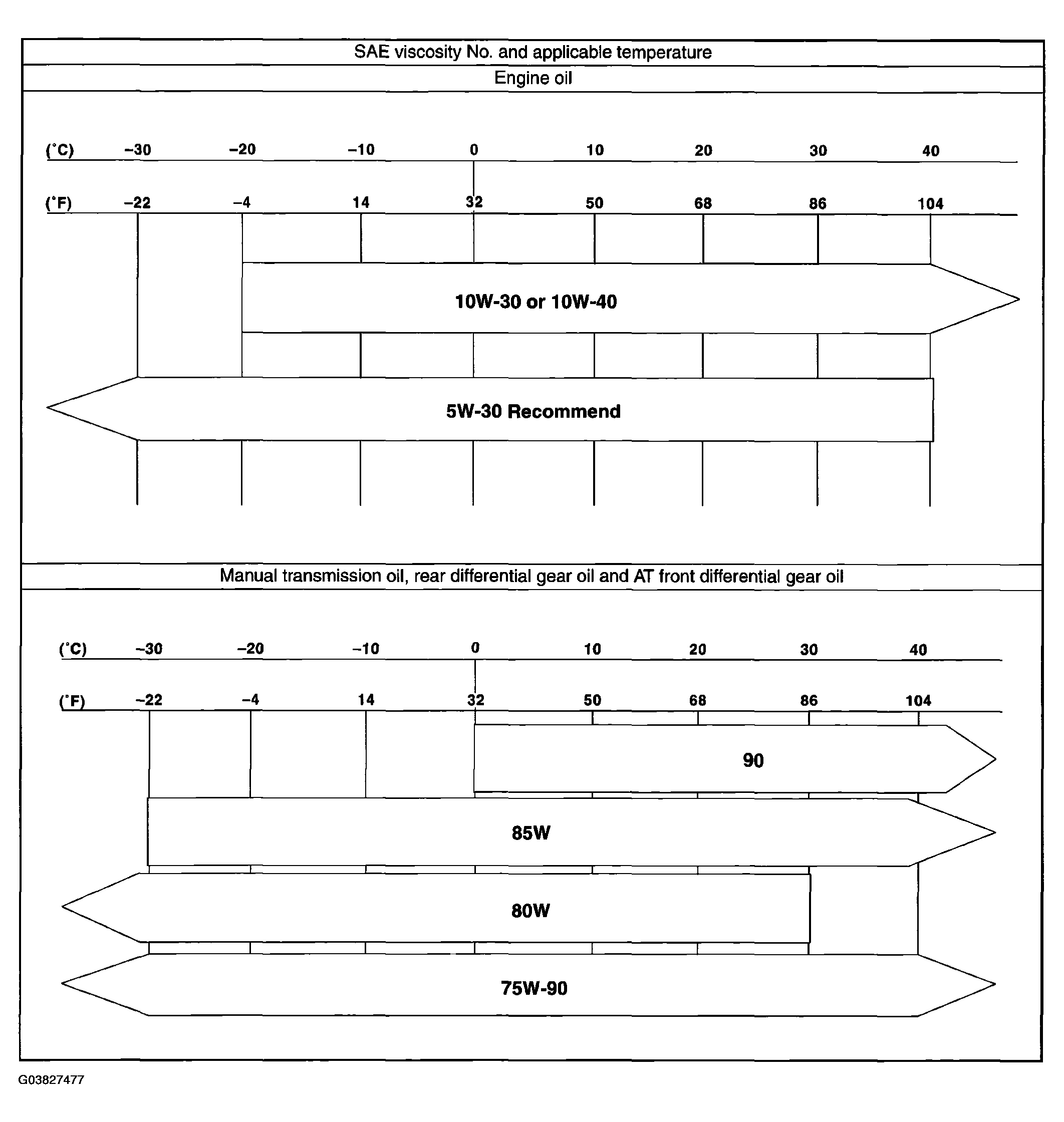

Fig 3: SAE Viscosity Number And Temperature Chart

Courtesy of SUBARU OF AMERICA, INC.
