General Description
>>
Components With Torque Specifications
>>
Intake Manifold
Intake Manifold

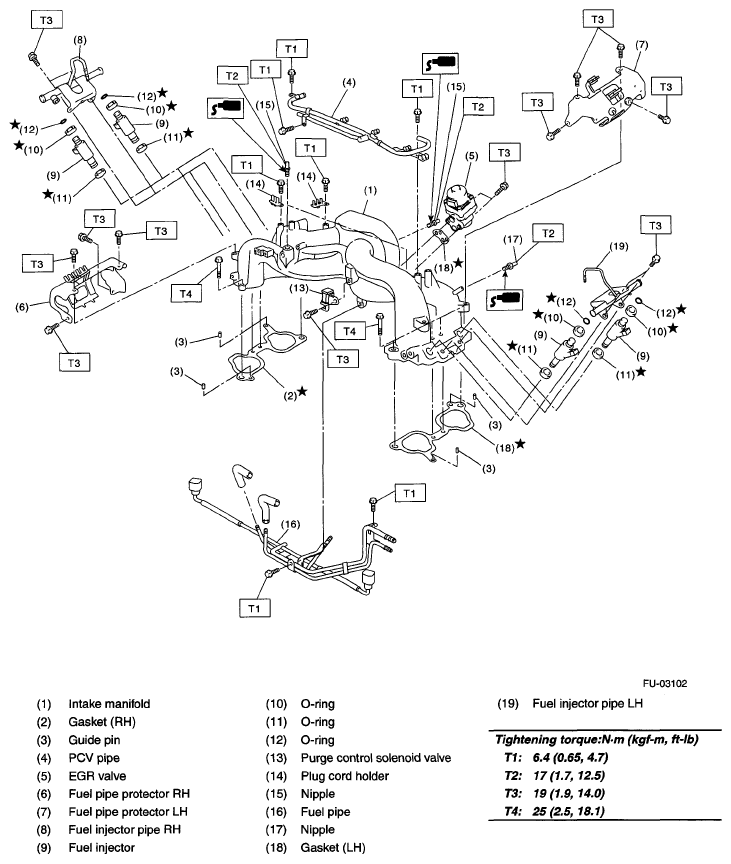

Fig 1: Exploded View Of Intake Manifold Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
