Parking Pawl: Installation

Set the transmission to the N range.
Install the parking pawl, parking pawl shaft and return spring.

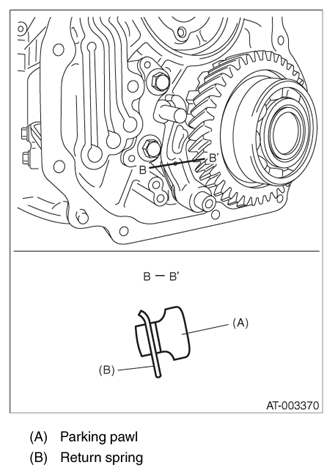

Fig 1: Identifying Parking Pawl, Parking Pawl Shaft And Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Install the parking support actuator.
Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 2: Identifying Parking Support Actuator
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, tighten the bolts which tightened in step 3 with specified angle.
NOTE: Do not use extension as much as possible.

Tightening angle:

17°±2°

ST 18854AA000 ANGLE GAUGE

Fig 3: Tightening Parking Support Actuator Mounting At Specific Angle Using Angle Gauge (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Tightening Parking Support Actuator Mounting At Specific Angle Using Angle Gauge (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Make sure that the return spring is sticking out of the parking pole hole.

Fig 5: Identifying Parking Pole Hole Dimensions
Courtesy of SUBARU OF AMERICA, INC.
Install the front vehicle speed sensor. Refer to , INSTALLATION , Front Vehicle Speed Sensor.
Install the center differential carrier. Refer to , INSTALLATION , Center Differential Carrier.
Install the extension case. Refer to , INSTALLATION , Extension Case.
Install the transmission assembly to the vehicle. Refer to , INSTALLATION , Automatic Transmission Assembly.
