Rear Drive Shaft: Assembly

Assemble in the reverse order of disassembly.

NOTE:

Use new ball bearings and revolution gear.
Make sure the clutch hub is facing the correct direction.

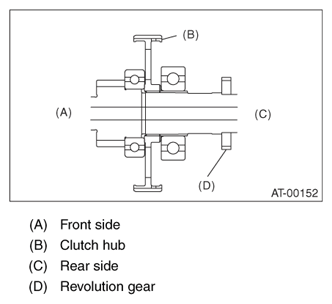

Fig 1: Identifying Front Side Clutch Hub And Rear Side Revolution Gear
Courtesy of SUBARU OF AMERICA, INC.
