Drive Pinion Shaft Assembly: Removal

  1. Remove the transmission assembly from the vehicle. Refer to , REMOVAL , Automatic Transmission Assembly.
  2. Remove the air breather hose. Refer to , REMOVAL , Air Breather Hose.
  3. Remove the oil pan and control valve body. Refer to , REMOVAL , Control Valve Body.
  4. Remove the transmission harness. Refer to , REMOVAL , Transmission Harness.
  5. Remove the extension case. Refer to , REMOVAL , Extension Case.
  6. Remove the rear drive shaft. Refer to , REMOVAL , Rear Drive Shaft.
  7. Remove the transfer clutch assembly. Refer to , REMOVAL , Transfer Clutch.
  8. Remove the transfer reduction driven gear assembly. Refer to , REMOVAL , Transfer Reduction Driven Gear.
  9. Remove the intermediate case. Refer to , REMOVAL , Intermediate Case.
  10. Remove the forward clutch assembly. Refer to , REMOVAL , Forward Clutch Assembly.
  11. Remove the transmission case. Refer to , REMOVAL , Transmission Case.
  12. Remove the primary pulley, secondary pulley and variator chain. Refer to , REMOVAL , Primary Pulley and Secondary Pulley.
  13. Using the ST, remove the drive pinion retainer and lubrication pipe.

    ST 18270KA020 SOCKET (E20)

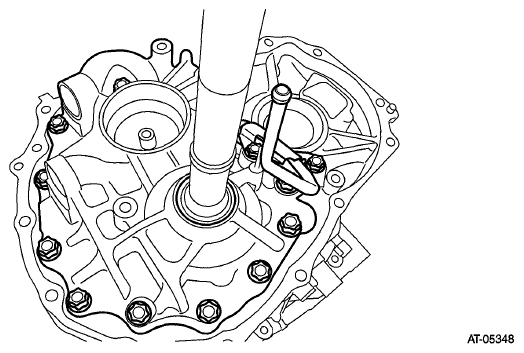

    Fig 1: Identifying Drive Pinion Retainer And Lubrication Pipe
    G06654671Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the O-ring.

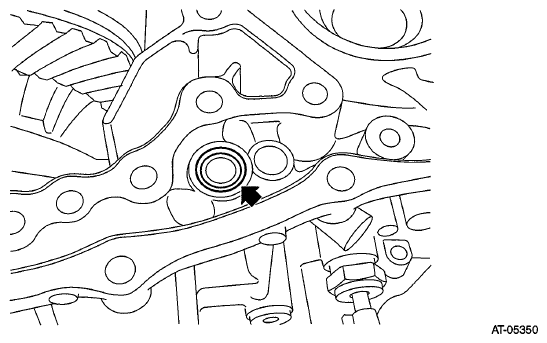

    Fig 2: Locating O-Ring
    G06654672Courtesy of SUBARU OF AMERICA, INC.
  15. Remove the oil pump.
    Fig 3: Locating Oil Pump Mounting Bolts
    G06654673Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the O-ring.
    Fig 4: Locating O-Ring (View 1 Of 2)
    G06654674Courtesy of SUBARU OF AMERICA, INC.
