Drive Plate: Removal

  1. Remove the transmission assembly from the vehicle. Refer to , REMOVAL , Automatic Transmission Assembly.
  2. Set the ST.

    ST 498497100 CRANKSHAFT STOPPER

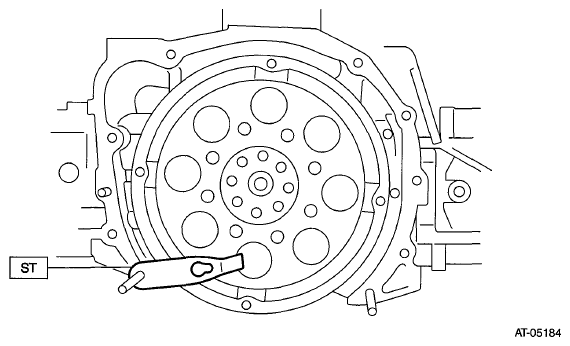

    Fig 1: Identifying Crankshaft Stopper With Transmission Assembly (View 1 Of 2)
    G06654492Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the drive plate.
